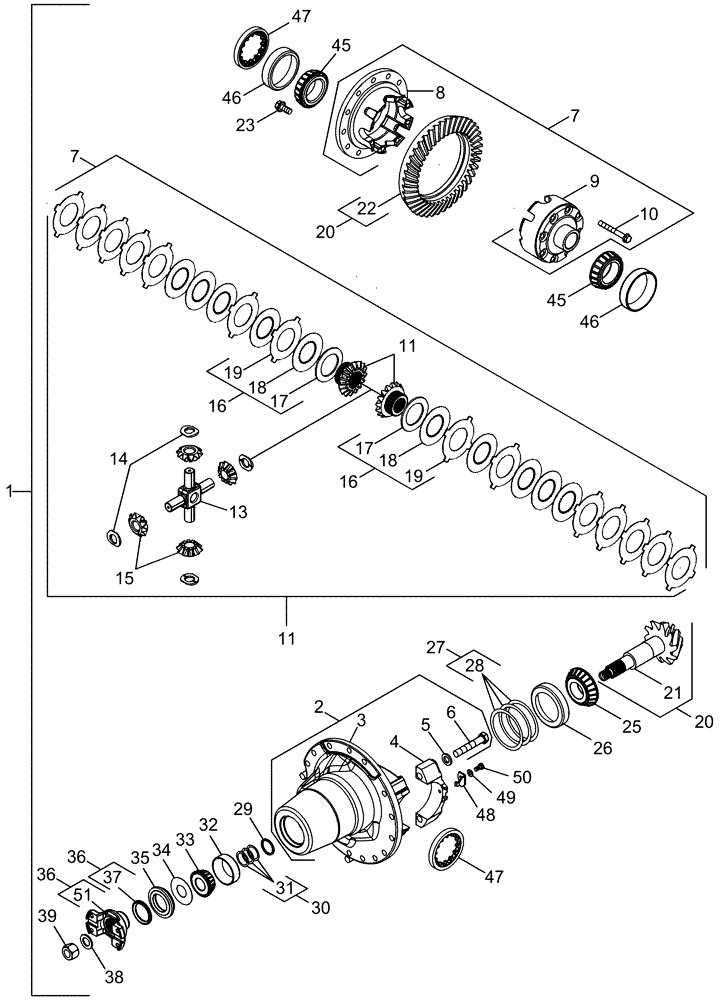

Запчасти Case IH MX210 (05-39) - CARRIER AND DIFFERENTIAL - MFD, 10 BOLT HUB, WITHOUT DIFFERENTIAL LOCK, ASN (05) - STEERING

1

87324562

CARRIER

Inc. 2 - 51

1шт.

2

87404057

CARRIER

Inc. 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

Housing

1шт.

4

NSS

NOT SOLD SEPARAT

Cap

2шт.

5

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

6

828-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

4шт.

7

345688A4

DIFFERENTIAL

Inc. 8 - 19

1шт.

8

NSS

NOT SOLD SEPARAT

Housing

1шт.

9

NSS

NOT SOLD SEPARAT

Housing

1шт.

10

1997853C1

BOLT

8шт.

11

377176A3

KIT

Inc. 12 - 19

1шт.

12

NSS

NOT SOLD SEPARAT

Gear

2шт.

13

NSS

NOT SOLD SEPARAT

Shaft

1шт.

14

NSS

NOT SOLD SEPARAT

Washer, Thrust

4шт.

15

NSS

NOT SOLD SEPARAT

Gear

4шт.

16

377177A3

KIT

Inc. 17 - 19

1шт.

17

NSS

NOT SOLD SEPARAT

Plate

2шт.

18

NSS

NOT SOLD SEPARAT

Disc, Friction

10шт.

19

NSS

NOT SOLD SEPARAT

Plate

14шт.

20

1968293C1

BEVEL GEAR

Inc. 21, 22

1шт.

21

NSS

NOT SOLD SEPARAT

Shaft, Pinion

1шт.

22

NSS

NOT SOLD SEPARAT

Ring, Gear

1шт.

23

H136416

FLANGE BOLT,Serr, 1/2" - 20 x 1.125", Gr 8

12шт.

25

315421A1

ROLLER BEARING,44.45mm ID x 26.91mm W

1шт.

26

315422A1

BEARING CUP,111.13mm OD x 20.64mm W

1шт.

27

1277229C1

PACKAGE

Inc. 28

1шт.

28

NSS

NOT SOLD SEPARAT

Shim .003

5шт.

28

NSS

NOT SOLD SEPARAT

Shim .005

5шт.

28

NSS

NOT SOLD SEPARAT

Shim .010

5шт.

29

251189A1

SPACER

1шт.

30

318504A1

SHIM KIT

Inc. 31

1шт.

31

NSS

NOT SOLD SEPARAT

Shim .010

1шт.

31

NSS

NOT SOLD SEPARAT

Shim .014

1шт.

31

NSS

NOT SOLD SEPARAT

Shim .015

1шт.

31

NSS

NOT SOLD SEPARAT

Shim .016

1шт.

31

NSS

NOT SOLD SEPARAT

Shim .018

1шт.

31

NSS

NOT SOLD SEPARAT

Shim .020

1шт.

31

NSS

NOT SOLD SEPARAT

Shim .021

1шт.

31

NSS

NOT SOLD SEPARAT

Shim .022

1шт.

31

NSS

NOT SOLD SEPARAT

Shim .023

1шт.

31

NSS

NOT SOLD SEPARAT

Shim .030

1шт.

32

315424A1

BEARING CUP

1шт.

33

315423A1

BEARING ASSY,31.75 mm ID x 27.783 mm

1шт.

34

318845A1

SLINGER,31.75mm ID x 72.26mm OD x 0.8mm Thk

1шт.

35

87324555

OIL SEAL,47.57mm ID x 80.44mm OD x 17.65mm Thk

1шт.

36

87324552

YOKE

Inc. 37, 51

1шт.

37

87324558

SEAL,47.74mm ID x 61.9mm OD x 1.19mm Thk

1шт.

38

H224501

WASHER

7/8 inch

1шт.

39

86002333

NUT

1шт.

45

1968291C1

ROLLER BEARING

2шт.

46

1968292C1

BEARING

2шт.

47

1277233C1

RING NUT,14T

2шт.

48

1277234C1

CLIP

2шт.

49

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

2шт.

50

628-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

2шт.

51

NSS

NOT SOLD SEPARAT

Yoke

1шт.
