(05-37) - FRONT AXLE DRIVE SHAFT - MFD, WITH DIFFERENTIAL LOCK, ASN

Запчасти Case IH MX210 (05-37) - FRONT AXLE DRIVE SHAFT - MFD, WITH DIFFERENTIAL LOCK, ASN (05) - STEERING

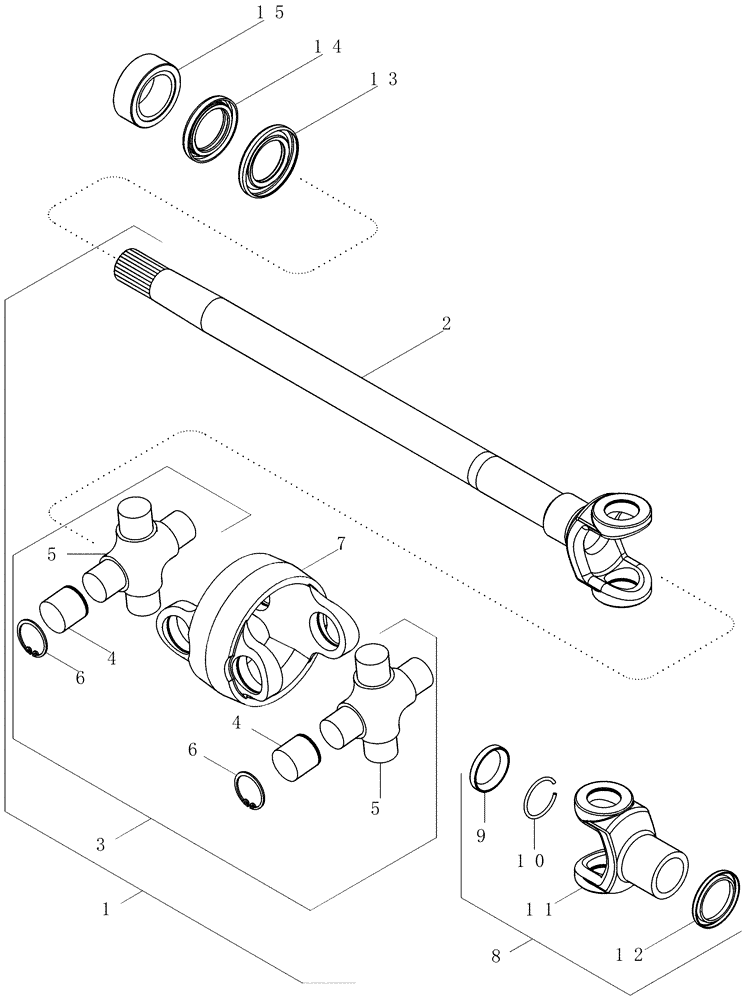

Схема запчастей Case IH MX210 - (05-37) - FRONT AXLE DRIVE SHAFT - MFD, WITH DIFFERENTIAL LOCK, ASN (05) - STEERING
6
8
4
2
10
6
3
5
1
15
13
5
11
4
7
14
9
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87324476

AXLE-SHAFT, ARTICULA

Right Hand, Shown, Inc. 2 - 12

1шт.

1

87324477

AXLE-SHAFT, ARTICULA

Left Hand, Inc. 2 - 12

1шт.

2

87325892

LONG SHAFT

Right Hand

1шт.

2

87307641

LONG SHAFT

Left Hand

1шт.

3

395738A1

U-JOINT SPIDER

Inc. 4 - 6

2шт.

4

NSS

NOT SOLD SEPARAT

CUP

4шт.

5

NSS

NOT SOLD SEPARAT

JOINT, UNIVERSAL

1шт.

6

NSS

NOT SOLD SEPARAT

RING, RETAINING

4шт.

7

395740A1

YOKE

1шт.

8

395737A1

YOKE

Inc. 9 - 12

1шт.

9

1961753C1

SEAL

1шт.

10

1277405C1

RING

1шт.

11

NSS

NOT SOLD SEPARAT

YOKE

1шт.

12

1287608C1

SEAL

1шт.

13

302957A1

OIL SEAL,40mm ID x 67mm OD x 8mm Thk

2шт.

14

302956A1

OIL SEAL,40mm ID x 60mm OD x 8mm Thk

2шт.

15

302958A1

BUSHING,40mm ID x 60mm OD x 22mm L

2шт.

Выбрано товаров: 17
