Запчасти Case IH MX210 (02-04) - AIR INDUCTION SYSTEM - STANDARD DUTY (02) - ENGINE

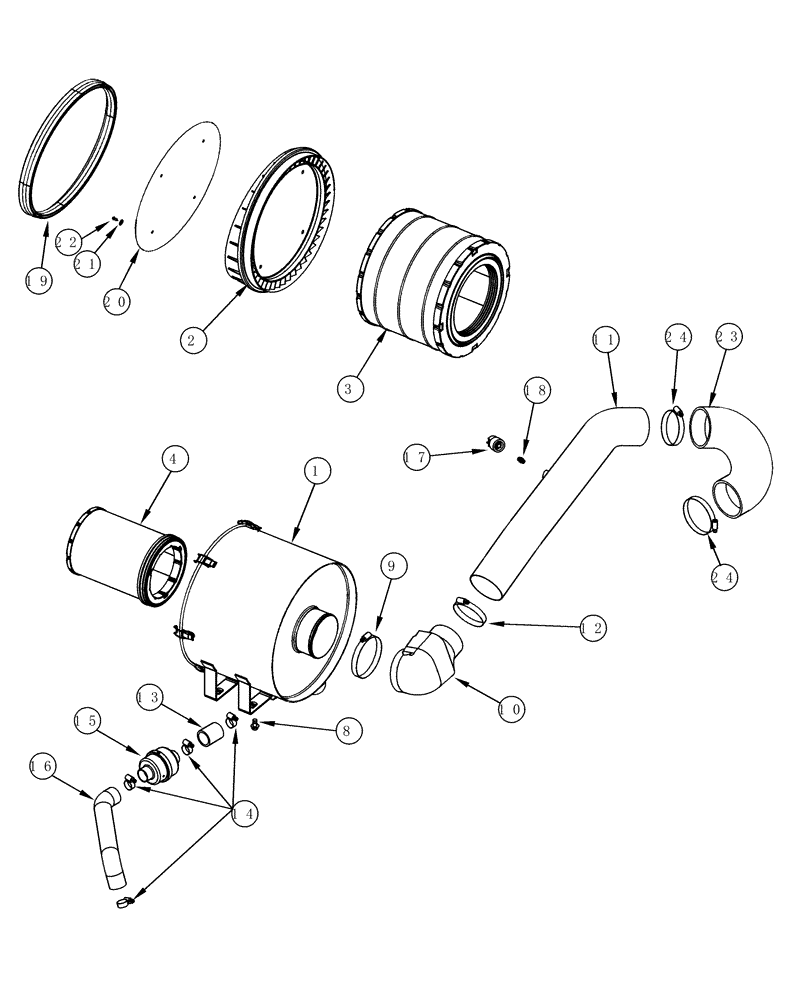

Схема запчастей Case IH MX210 - (02-04) - AIR INDUCTION SYSTEM - STANDARD DUTY (02) - ENGINE
21
24
17
4
19
13
10
12
22
16
18
8
14
24
20
1
3
2
23
9
15
11

Артикул

Название

Примечание

Количество

291903A3

AIR CLEANER

Inc. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

294291A1

COVER

1шт.

3

294292A1

AIR CLEANER

1шт.

4

294293A1

AIR FILTER

1шт.

8

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

4шт.

9

214-3296

HOSE CLAMP,5-1/4" - 6-1/8", HD Worm, W/ Liner

1шт.

10

352790A1

ELBOW,101.6mm ID x 242mm L, EPDM

1шт.

11

352792A1

AIR INTAKE TUBE,315 mm Length

1шт.

12

214-3280

HOSE CLAMP,4-1/4" - 5-1/8", HD Worm, W/ Liner

1шт.

13

414194A1

HOSE

1шт.

14

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

4шт.

15

284427A1

VALVE

1шт.

16

414075A1

HOSE

1шт.

17

79081900

SENSOR

1шт.

18

217-1079

HYD CONNECTOR,1/8" - 27 NPTF

1/8 PT

1шт.

19

365829A1

SEAL,1276mm L

1шт.

20

282109A1

BAFFLE

1шт.

21

895-25005

WASHER,M5 x 15 x 1.6

4шт.

22

760-14313

SELF-TAP SCREW,Phillips Drive, Pan HD, M4.2 x 1.4 x 13mm

M4,2 x 13

4шт.

23

297362A1

INTAKE AIR HOSE,101.60 mm ID x 209.60 mm, SAE J20

1шт.

24

214-3280

HOSE CLAMP,4-1/4" - 5-1/8", HD Worm, W/ Liner

2шт.

Выбрано товаров: 22
