(05-36) - FRONT AXLE DRIVE SHAFT - MFD, WITH DIFFERENTIAL LOCK, BSN

Запчасти Case IH MX210 (05-36) - FRONT AXLE DRIVE SHAFT - MFD, WITH DIFFERENTIAL LOCK, BSN (05) - STEERING

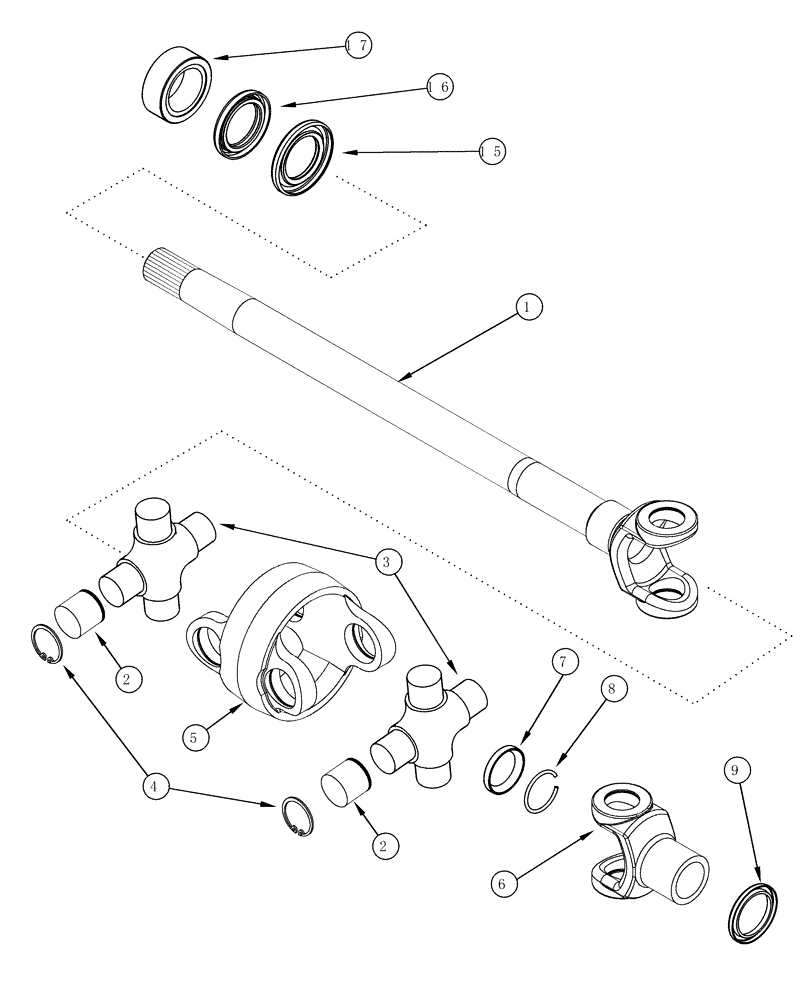

Схема запчастей Case IH MX210 - (05-36) - FRONT AXLE DRIVE SHAFT - MFD, WITH DIFFERENTIAL LOCK, BSN (05) - STEERING
6
5
7
2
1
2
9
3
8
17
4
15
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87404999

AXLE-SHAFT, ARTICULA

Right Hand, Shown, Inc. 1 - 9

1шт.

87405000

AXLE-SHAFT, ARTICULA

Left Hand, Inc. 1 - 9

1шт.

1

87405212

LONG SHAFT

Right Hand

1шт.

1

87405211

LONG SHAFT

Left Hand

1шт.

395738A1

U-JOINT SPIDER

Inc. 2 - 4

2шт.

2

NSS

NOT SOLD SEPARAT

CUP

4шт.

3

NSS

NOT SOLD SEPARAT

JOINT, UNIVERSAL

1шт.

4

NSS

NOT SOLD SEPARAT

RING, RETAINING

4шт.

5

395740A1

YOKE

1шт.

6

395737A1

YOKE

Inc. 7 - 9

1шт.

7

1961753C1

SEAL

1шт.

8

1277405C1

RING

1шт.

9

1287608C1

SEAL

1шт.

15

302957A1

OIL SEAL,40mm ID x 67mm OD x 8mm Thk

2шт.

16

302956A1

OIL SEAL,40mm ID x 60mm OD x 8mm Thk

2шт.

17

302958A1

BUSHING,40mm ID x 60mm OD x 22mm L

2шт.
