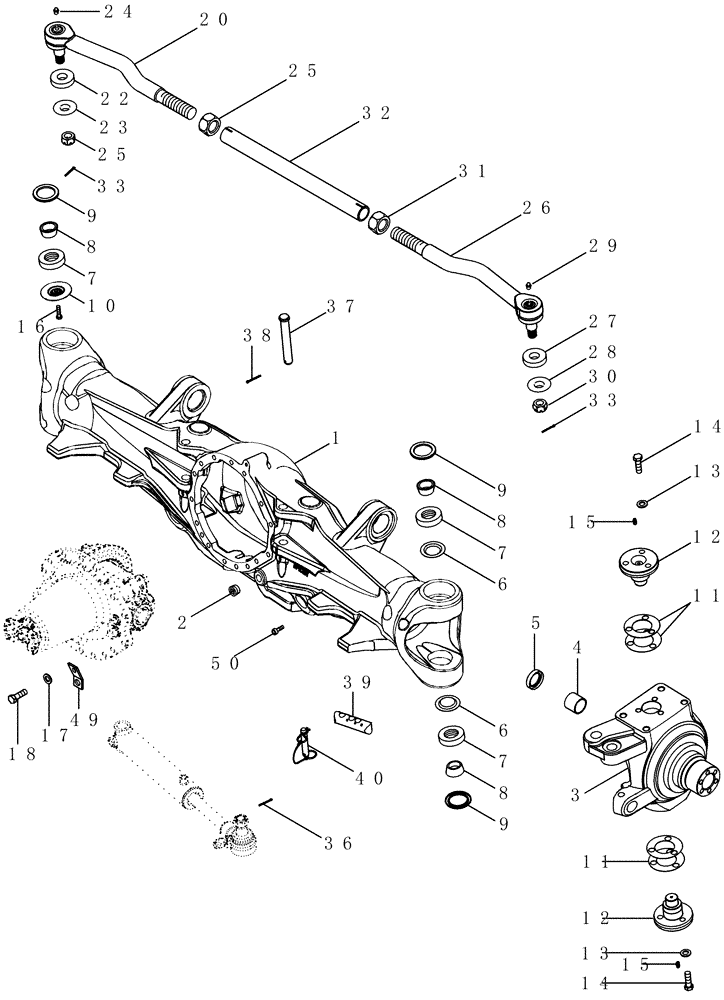

Запчасти Case IH MX210 (05-33) - MFD AXLE HOUSING ASSEMBLY - SUSPENDED WITH 12 BOLT HUB, WITH DIFFERENTIAL LOCK, BSN MY00178966 (05) - STEERING

407300A6

4WD AXLE ASSY

Complete With Differential And Planetaries

1шт.

87454944R

REMAN-AXLE

Axle Reman for New PN 407300A6

1шт.

87454944C

CORE-AXLE

Return number

1шт.

1

87404290

AXLE HOUSING

1шт.

2

221-887

PLUG

3/4

2шт.

3

292564A2

STEERING KNUCKLE,RH

Right Hand

1шт.

3

292560A2

STEERING KNUCKLE,LH

Left Hand

1шт.

4

235628A1

BUSHING

1шт.

5

128647A1

OIL SEAL

1шт.

6

281937A1

RETAINER,50mm ID x 80mm OD

3шт.

368728A1

BEARING ASSY,38.1mm ID x 82.55mm OD x 26.99mm W

Inc. 7, 8

4шт.

7

NSS

NOT SOLD SEPARAT

Ring, Inner

1шт.

8

NSS

NOT SOLD SEPARAT

Ring, Outer

1шт.

9

281939A1

OIL SEAL

4шт.

10

281937A1

RETAINER,50mm ID x 80mm OD

If Equipped (Not Shown)

1шт.

10

87440529

RETAINER

If Equipped (Shown)

1шт.

313557A1

SHIM KIT

Inc. 11

1шт.

11

NSS

NOT SOLD SEPARAT

Shim

5шт.

11

NSS

NOT SOLD SEPARAT

Shim

5шт.

11

NSS

NOT SOLD SEPARAT

Shim

5шт.

11

NSS

NOT SOLD SEPARAT

Shim

5шт.

11

NSS

NOT SOLD SEPARAT

Shim

5шт.

11

NSS

NOT SOLD SEPARAT

Shim

5шт.

12

378410A1

CAP

4шт.

13

896-11014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

15,5 x 28 x 3 mm

12шт.

14

627-14045

BOLT,Hex, M14 x 2 x 45mm, Cl 10.9, Full Thd

12шт.

15

219-1

LUBE NIPPLE,1/8" - 27 NPTF

4шт.

16

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

If Equipped

1шт.

17

896-11014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

15,5 x 28 x 3 mm

16шт.

18

627-14045

BOLT,Hex, M14 x 2 x 45mm, Cl 10.9, Full Thd

16шт.

20

311169A2

BALL JOINT

Left Hand Threads, Inc. 21 - 24, Serial Range: -FUSA6400017

1шт.

20

87455742

BALL JOINT

Left Hand Threads, Inc. 21 - 24, Start Serial: FUSA6400017

1шт.

333617A1

SEAL KIT

Inc. 21, 22, Serial Range: -FUSA6400017

1шт.

87455748

KIT

Inc. 21, 22, Start Serial: FUSA6400017

1шт.

21

NSS

NOT SOLD SEPARAT

Boot

1шт.

22

NSS

NOT SOLD SEPARAT

Spacer

1шт.

23

429-1314

NUT,7/8"-14, G8

7/8 NF; 8, Serial Range: -FUSA6400017

1шт.

23

87455806

NUT

M22, Start Serial: FUSA6400017

1шт.

24

219-6

LUBE NIPPLE,1/4" - 28 NPTF

Grease 1/4 str, Serial Range: -FUSA6400017

1шт.

24

87455807

FITTING

Grease, Start Serial: FUSA6400017

1шт.

25

311168A1

NUT

1-1/2, Left Hand Threads, Serial Range: -FUSA6400017

1шт.

25

87455741

NUT

M38, Left Hand Threads, Start Serial: FUSA6400017

1шт.

26

311170A2

BALL JOINT

Right Hand Threads, Inc. 27 - 30, Serial Range: -FUSA6400017

1шт.

26

87455743

BALL JOINT

Right Hand Threads, Inc. 27 - 30, Start Serial: FUSA6400017

1шт.

333617A1

SEAL KIT

Inc. 27, 28, Serial Range: -FUSA6400017

1шт.

87455748

KIT

Inc. 27, 28, Start Serial: FUSA6400017

1шт.

27

NSS

NOT SOLD SEPARAT

Boot

1шт.

28

NSS

NOT SOLD SEPARAT

Spacer

1шт.

29

219-6

LUBE NIPPLE,1/4" - 28 NPTF

Grease 1/4 str, Serial Range: -FUSA6400017

1шт.

29

87455807

FITTING

Grease, Start Serial: FUSA6400017

1шт.

30

429-1314

NUT,7/8"-14, G8

7/8 NF; 8, Serial Range: -FUSA6400017

1шт.

30

87455806

NUT

M22, Start Serial: FUSA6400017

1шт.

31

311167A1

NUT

1-1/2, Right Hand Threads, Serial Range: -FUSA6400017

1шт.

31

87455739

NUT

M38, Right Hand Threads, Start Serial: FUSA6400017

1шт.

32

311166A1

TUBE,34 mm ID, 54.293 mm OD, 531 mm Length

, Serial Range: -FUSA6400017

1шт.

32

87455737

TUBE

, Start Serial: FUSA6400017

1шт.

33

432-820

COTTER PIN,1/8" x 1 1/4"

2шт.

36

432-820

COTTER PIN,1/8" x 1 1/4"

2шт.

37

87406480

PIN

2шт.

38

733-4032

COTTER PIN,M4 x 32

2шт.

39

281914A1

ROD

ADJUSTMENT, (3 Hole) Steering Stop, Length 113 mm, If Used (Shown)

2шт.

39

451995A1

ADJUSTMENT ROD

(4 Hole) Steering Stop, Length 171 mm, If Used

2шт.

39

87368673

ADJUSTMENT ROD

(5 Hole) Steering Stop, Length 171 mm, If Used

2шт.

40

87404993

AXLE PIN

2шт.

49

352782A1

STRAP

1шт.

50

863-8020

HEX SOC SCREW,M8 x 20mm, Cl 12.9

M8 x 20; 12.9

2шт.
