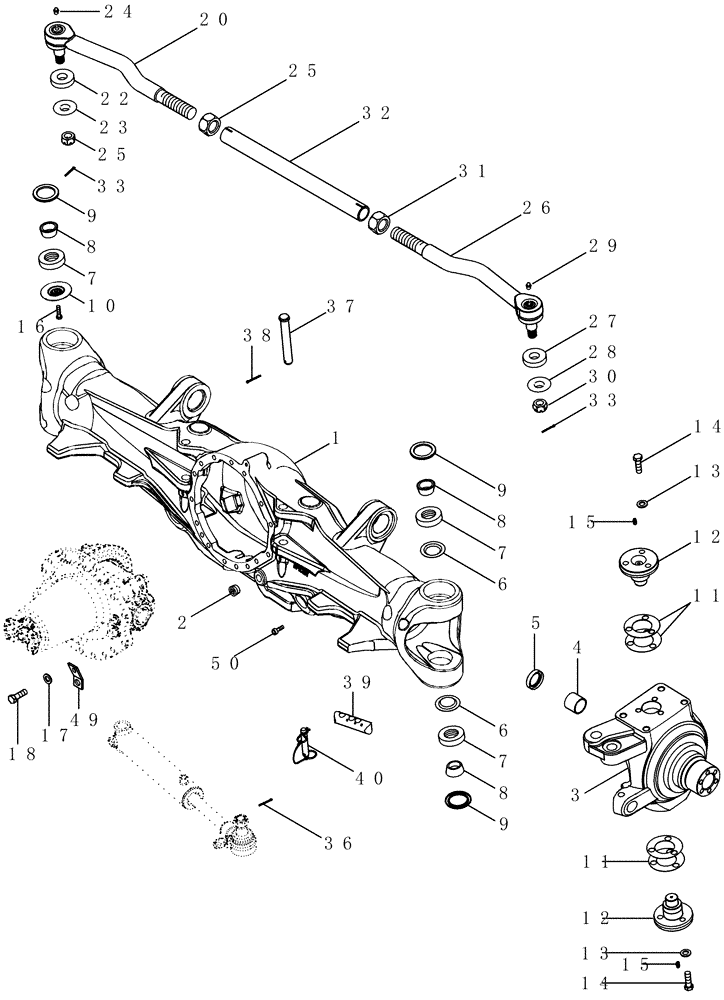

Запчасти Case IH MX210 (05-31) - MFD AXLE HOUSING ASSEMBLY - SUSPENDED WITH 10 BOLT HUB, WITH DIFFERENTIAL LOCK, BSN MY00182861 (05) - STEERING

407298A6

4WD AXLE ASSY

Complete With Differential And Planetaries

1шт.

1

87404290

AXLE HOUSING

1шт.

2

221-887

PLUG

3/4

2шт.

3

295163A2

STEERING KNUCKLE

Right Hand

1шт.

3

295162A2

STEERING KNUCKLE

Left Hand

1шт.

4

235628A1

BUSHING

1шт.

5

128647A1

OIL SEAL

1шт.

6

382635A1

RETAINER,32mm ID x 67.31mm OD

3шт.

377919A1

SPH ROLLER BEARING,34.92mm ID x 68.27mm OD x 21.43mm W

Inc. 7, 8

4шт.

7

NSS

NOT SOLD SEPARAT

Ring, Inner

1шт.

8

NSS

NOT SOLD SEPARAT

Ring, Outer

1шт.

9

1277270C1

OIL SEAL

4шт.

10

382635A1

RETAINER,32mm ID x 67.31mm OD

If Equipped (Not Shown)

1шт.

10

87440524

RETAINER

If Equipped (Shown)

1шт.

310960A1

SHIM KIT

Inc. 11

1шт.

11

NSS

NOT SOLD SEPARAT

Shim

5шт.

11

NSS

NOT SOLD SEPARAT

Shim

5шт.

11

NSS

NOT SOLD SEPARAT

Shim

5шт.

11

NSS

NOT SOLD SEPARAT

Shim

5шт.

11

NSS

NOT SOLD SEPARAT

Shim

5шт.

11

NSS

NOT SOLD SEPARAT

Shim

5шт.

12

378409A1

CAP

4шт.

13

896-11014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

15,5 x 28 x 3 mm

12шт.

14

627-14045

BOLT,Hex, M14 x 2 x 45mm, Cl 10.9, Full Thd

12шт.

15

219-1

LUBE NIPPLE,1/8" - 27 NPTF

4шт.

16

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

If Equipped

1шт.

17

896-11014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

15,5 x 28 x 3 mm

16шт.

18

627-14045

BOLT,Hex, M14 x 2 x 45mm, Cl 10.9, Full Thd

16шт.

20

302643A1

BALL JOINT

Left Hand Threads, Inc. 21 - 24, Serial Range: -FUSA6800000

1шт.

20

87455778

BALL JOINT

Left Hand Threads, Inc. 21 - 24, Start Serial: FUSA6800000

1шт.

333617A1

SEAL KIT

Inc. 21, 22, Serial Range: -FUSA6800000

1шт.

87455780

KIT

Inc. 21, 22, Start Serial: FUSA6800000

1шт.

21

NSS

NOT SOLD SEPARAT

Boot

1шт.

22

NSS

NOT SOLD SEPARAT

Spacer

1шт.

23

429-1314

NUT,7/8"-14, G8

7/8 NF; 8, Serial Range: -FUSA6800000

1шт.

23

87455806

NUT

M22, Start Serial: FUSA6800000

1шт.

24

219-6

LUBE NIPPLE,1/4" - 28 NPTF

Grease 1/4 str, Serial Range: -FUSA6800000

1шт.

24

87455807

FITTING

Grease, Start Serial: FUSA6800000

1шт.

25

302648A1

NUT

1-3/8, Left Hand Threads, Serial Range: -FUSA6800000

1шт.

25

87455777

NUT

M36, Left Hand Threads, Start Serial: FUSA6800000

1шт.

26

302645A1

BALL JOINT

Right Hand Threads, Inc. 27 - 30, Serial Range: -FUSA6800000

1шт.

26

87455779

BALL JOINT

Right Hand Threads, Inc. 27 - 30, Start Serial: FUSA6800000

1шт.

333617A1

SEAL KIT

Inc. 27, 28, Serial Range: -FUSA6800000

1шт.

87455780

KIT

Inc. 27, 28, Start Serial: FUSA6800000

1шт.

27

NSS

NOT SOLD SEPARAT

Boot

1шт.

28

NSS

NOT SOLD SEPARAT

Spacer

1шт.

29

219-6

LUBE NIPPLE,1/4" - 28 NPTF

Grease 1/4 str, Serial Range: -FUSA6800000

1шт.

29

87455807

FITTING

Grease, Start Serial: FUSA6800000

1шт.

30

429-1314

NUT,7/8"-14, G8

7/8 NF; 8, Serial Range: -FUSA6800000

1шт.

30

87455806

NUT

M22, Start Serial: FUSA6800000

1шт.

31

302649A1

NUT

1-3/8, Right Hand Threads, Serial Range: -FUSA6800000

1шт.

31

87455776

NUT

M36, Right Hand Threads, Start Serial: FUSA6800000

1шт.

32

302647A1

TUBE,44 mm OD, 531 mm Length

, Serial Range: -FUSA6800000

1шт.

32

87455775

TUBE

, Start Serial: FUSA6800000

1шт.

33

432-820

COTTER PIN,1/8" x 1 1/4"

2шт.

36

432-820

COTTER PIN,1/8" x 1 1/4"

2шт.

37

87406480

PIN

2шт.

38

733-4032

COTTER PIN,M4 x 32

2шт.

39

281914A1

ROD

ADJUSTMENT, (3 Hole) Steering Stop, Length 113 mm, If Used (Shown)

2шт.

39

451995A1

ADJUSTMENT ROD

(4 Hole) Steering Stop, Length 171 mm, If Used

2шт.

39

87368673

ADJUSTMENT ROD

(5 Hole) Steering Stop, Length 171 mm, If Used

2шт.

40

87404993

AXLE PIN

2шт.

49

352782A1

STRAP

1шт.

50

863-8020

HEX SOC SCREW,M8 x 20mm, Cl 12.9

M8 x 20; 12.9

2шт.
