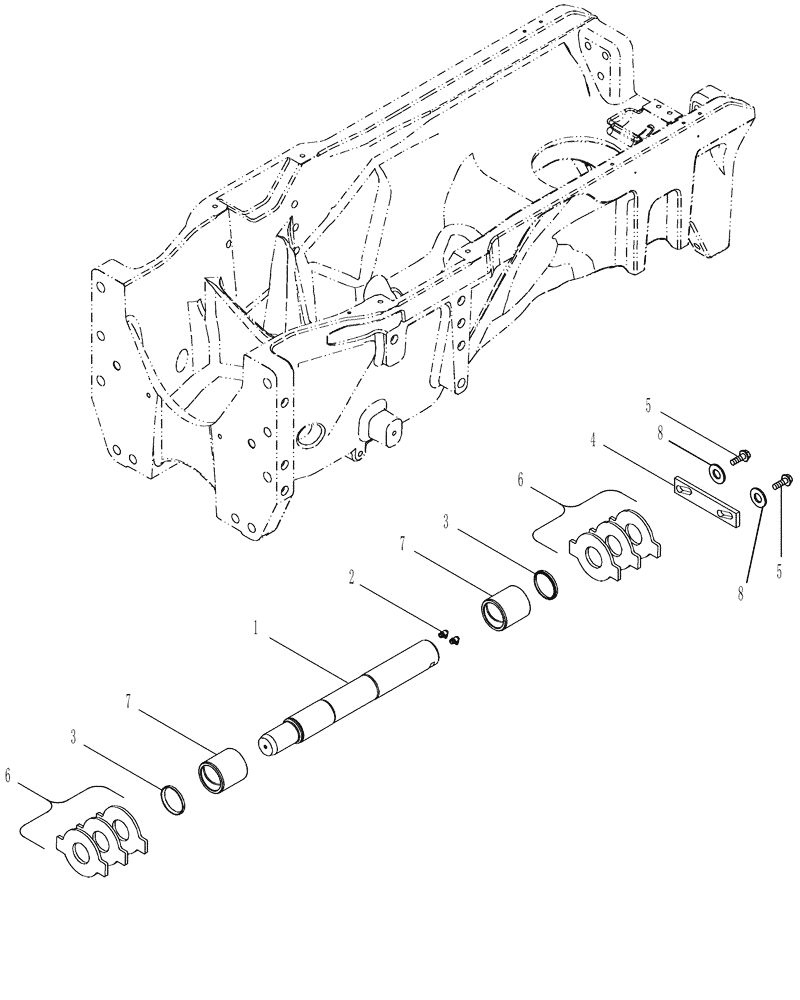

Запчасти Case IH MX210 (05-18) - FRONT AXLE - MOUNTING, MFD (05) - STEERING

1

87400196

PIN ASSY.,60.26mm OD x 510mm L

Inc. 2, Order 87343146. Also Order 2 of 87433501 for Initial Replacement

1шт.

1

87343146

PIN ASSY.

Inc. 2, Replaces 87400196. Also Order 2 of 87433501 for Initial Replacement

1шт.

2

219-92

LUBE NIPPLE,90 Degree Elbow, 1/8" NPTF

Grease, 90, 1/8 NPT

2шт.

3

87400202

SEAL

2шт.

4

87686589

PLATE

Slotted, Length 90 mm (3.5 in)

1шт.

4

87677299

PLATE

Slotted, length 130 mm (5.1 in)

1шт.

5

857-12035

BOLT,Hvy Hex, M12 x 35mm, Cl 10.9

M12 x 35; 8.8

2шт.

6

87403514

THRUST WASHER

Steel, 6.25 / 8.25 mm

1шт.

6

87400218

THRUST WASHER

Steel, 7.0 / 9.0 mm

1шт.

6

87400219

THRUST WASHER

Steel, 7.5 / 9.5 mm

1шт.

6

87400220

THRUST WASHER

Steel, 8.0 / 10.0 mm

1шт.

6

87309060

THRUST WASHER,60.8mm ID x 112mm OD x 7.75mm Thk

Nylon, 5.75 / 7.75 mm

1шт.

6

87309061

THRUST WASHER,6.25mm Thk

Nylon, 6.25 / 8.25 mm

1шт.

6

87309062

THRUST WASHER,7mm Thk

Nylon, 7.0 / 9.0 mm

1шт.

6

87309063

THRUST WASHER,7.5mm Thk

Nylon, 7.5 / 9.5 mm

1шт.

6

87369711

THRUST WASHER,60.8mm ID x 112mm OD x 8mm Thk

Nylon, 8.0 / 10.0 mm

1шт.

7

86993401

BUSHING

Axle Pivot Pin, Used with 87400196

2шт.

7

87433501

BUSHING,60.46mm ID x 74.97mm OD x 75.78mm L

Axle Pivot Pin, Used with 87343146

2шт.

8

896-16012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.
