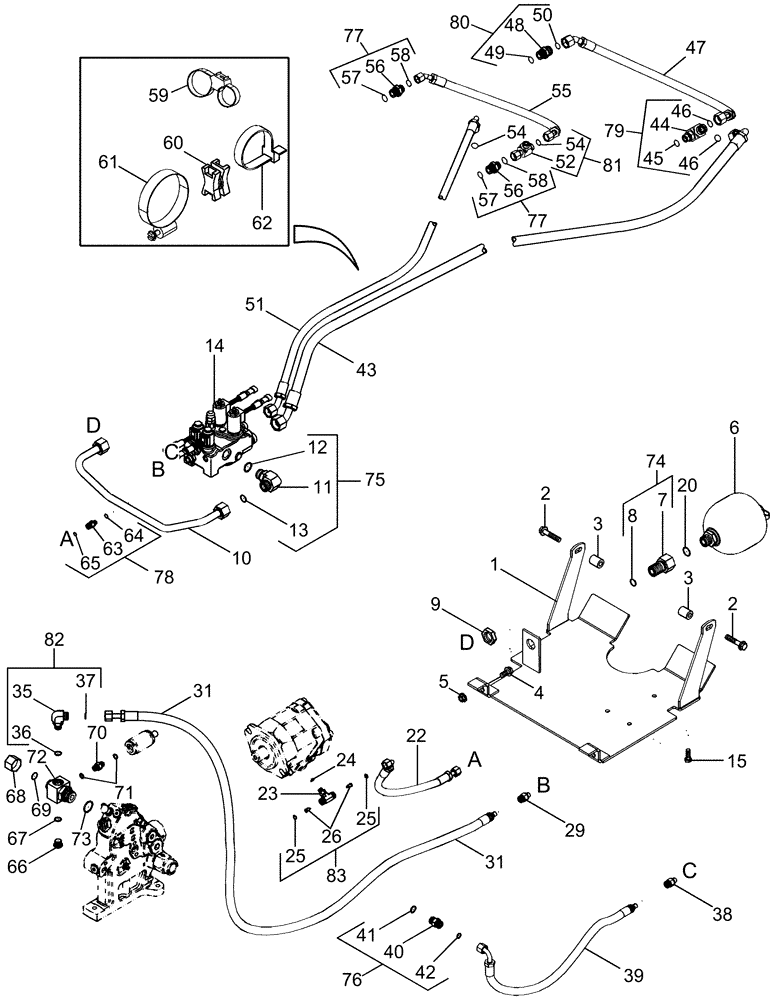

Запчасти Case IH MX210 (05-15) - HYDRAULIC SYSTEM - SUSPENDED MFD AXLE, ASN JAZ135174 (05) - STEERING

1

87453236

BRACKET

1шт.

2

844-12060

BOLT,Hvy Hex, M12 x 60mm, Cl 8.8

2шт.

3

444954A1

SPACER

2шт.

4

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

2шт.

5

9804279

FLANGE NUT,Hex, M12, Cl 8

2шт.

6

452005A1

ACCUMULATOR,1.4L

1шт.

7

86983862

3 WAY CONNECTION

Inc. 8

1шт.

8

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

9

701-1249

BHD LOCK NUT,1-3/16" - 12

1-3/16

1шт.

10

87453240

TUBE,0.75" OD

1шт.

11

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 12, 13

1шт.

12

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

13

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

14

87454196

VALVE

Suspended Axle Control

1шт.

15

514-742

BOLT,Hex, M10 x 1.25 x 30mm, Cl 10.9, Full Thd

M10 x 30; 10.9

3шт.

20

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

22

87452964

HOSE ASSY.

1шт.

23

86994121

TEE

Inc. 24 - 26

1шт.

24

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

25

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

26

133519C1

SCREEN

2шт.

29

87452691

HYD CONNECTOR

M14 x STC

1шт.

31

87452965

HOSE,12.7mm ID x 2469mm L

Supply

1шт.

35

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

Inc. 36, 37

1шт.

36

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

37

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

38

87452690

HYD CONNECTOR

M16 x STC

1шт.

39

87452963

HOSE ASSY.

Return

1шт.

40

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Includes 41, 42

1шт.

41

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

42

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

43

87435438

HOSE,19.05mm ID x 1469mm L

1шт.

44

700-420

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x M22 x 1.5 Male ORB

1 fc sl x 22 Or, Inc. 45, 46

1шт.

45

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

46

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

47

86990963

FLEXIBLE HOSE

1шт.

48

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 49, 50

1шт.

49

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

50

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

51

87435439

HOSE,12.7mm ID x 1454mm L

1шт.

52

700-445

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Inc. 53, 54

1шт.

53

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

54

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

55

86990964

HOSE,12.7mm ID x 700mm L

1шт.

56

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Inc. 57, 58

1шт.

57

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

58

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

59

86991000

CLAMP

2шт.

60

86991001

SPACER

1шт.

61

214-1544

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm, W/ Liner

1шт.

62

86991007

CABLE TIE,509mm L

CABLE STRAP

2шт.

63

86984110

VALVE,M10 x 1

Check, Inc. 64, 65

1шт.

64

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

65

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

66

221578A1

PLUG,M18 x 1.5 ORB

Incl. 67

1шт.

67

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

68

701-907

CAP,1-3/16" - 12

1-3/16, Inc. 69

1шт.

69

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

70

87403003

HYD CONNECTOR

Inc. 71

1шт.

71

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.

72

87402551

TEE

Inc. 73

1шт.

73

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

74

86983862

3 WAY CONNECTION

Inc. 8

1шт.

75

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Inc. 11 - 13

1шт.

76

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Inc. 40 - 42

1шт.

77

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Inc. 56 - 58

2шт.

78

86984110

VALVE,M10 x 1

Inc. 63 - 65

1шт.

79

700-420

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x M22 x 1.5 Male ORB

Inc. 44 - 46

1шт.

80

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Inc. 48 - 50

1шт.

81

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Inc. 52, 54

1шт.

82

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

Inc. 35 - 37

1шт.

83

86994121

TEE

Inc. 23 - 26

1шт.
