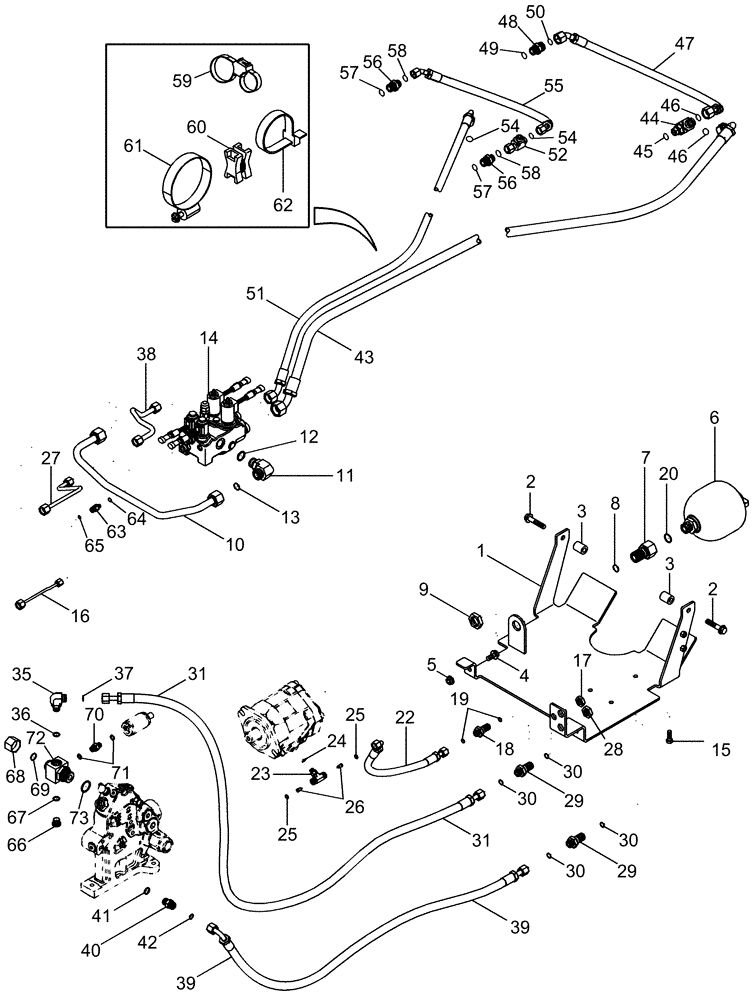

Запчасти Case IH MX210 (05-14) - HYDRAULIC SYSTEM - SUSPENDED MFD AXLE, BSN JAZ135174 (05) - STEERING
№
Артикул
Название
Примечание
Количество
1
87417847
BRACKET
1шт.
2
844-12060
BOLT,Hvy Hex, M12 x 60mm, Cl 8.8
2шт.
3
444954A1
SPACER
2шт.
4
844-12025
BOLT,Hvy Hex, M12 x 25mm, Cl 8.8
2шт.
5
9804279
FLANGE NUT,Hex, M12, Cl 8
2шт.
6
452005A1
ACCUMULATOR,1.4L
1шт.
7
86983862
3 WAY CONNECTION
Inc. 8
1шт.
8
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
1шт.
9
701-1249
BHD LOCK NUT,1-3/16" - 12
1-3/16
1шт.
10
86983811
TUBE,0.75" OD
1шт.
11
700-307
ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB
Incl. 12, 13
1шт.
12
637-64236
O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro
1шт.
13
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
1шт.
14
452001A1
VALVE
Suspended Axle Control
1шт.
See Figure 05-16
1шт.
15
514-742
BOLT,Hex, M10 x 1.25 x 30mm, Cl 10.9, Full Thd
M10 x 30; 10.9
3шт.
16
86990446
TUBE,6.35 mm OD x 204, 48 mm L
Load Sense
1шт.
17
701-909
NUT,11/16" - 16
M10
1шт.
18
701-120
UNION,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS
11/16 fc sl x bulk hd, Inc. 19
1шт.
19
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
2шт.
20
637-64236
O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro
1шт.
22
86983810
HOSE
1шт.
23
86994121
TEE
Inc. 24 - 26
1шт.
24
637-63093
O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro
1шт.
25
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
2шт.
27
86990447
TUBE,9.52 mm OD x 206, 108 mm L
Supply
1шт.
28
701-903
NUT,13/16" - 16
2шт.
29
701-121
UNION,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS
Inc. 30
2шт.
30
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
2шт.
31
87405555
HOSE,12.7mm ID x 2250mm L
Supply
1шт.
35
86579691
90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB
Inc. 36, 37
1шт.
38
86983812
TUBE,0.50" OD
Return
1шт.
39
86983809
HOSE ASSY.
Return
1шт.
40
201-102
HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB
Includes 41, 42
1шт.
41
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
42
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
1шт.
43
87435438
HOSE,19.05mm ID x 1469mm L
1шт.
44
700-420
TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x M22 x 1.5 Male ORB
1 fc sl x 22 Or, Inc. 45, 46
1шт.
45
637-63193
O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro
1шт.
46
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
2шт.
47
86990963
FLEXIBLE HOSE
1шт.
48
700-103
HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB
Incl. 49, 50
1шт.
49
637-63193
O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro
1шт.
50
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
1шт.
51
87435439
HOSE,12.7mm ID x 1454mm L
1шт.
52
701-416
TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS
13/16 fc sl x 22 Or, Inc. 54
1шт.
54
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
2шт.
55
86990964
HOSE,12.7mm ID x 700mm L
1шт.
56
700-162
HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB
Inc. 57, 58
2шт.
57
637-63193
O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro
1шт.
58
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
1шт.
59
86991000
CLAMP
2шт.
60
86991001
SPACER
1шт.
61
214-1544
HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm, W/ Liner
1шт.
62
86991007
CABLE TIE,509mm L
CABLE STRAP
2шт.
63
86984110
VALVE,M10 x 1
Check, Inc. 64, 65
1шт.
64
637-63153
O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro
1шт.
65
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
1шт.
67
637-63153
O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro
1шт.
68
701-907
CAP,1-3/16" - 12
1-3/16, Inc. 69
1шт.
69
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
1шт.
70
87403003
HYD CONNECTOR
Inc. 71
1шт.
71
637-63113
O-RING,2.2mm Thk x 11.3mm ID, Cl 6
2шт.
72
87402551
TEE
Inc. 73
1шт.
73
637-64296
O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro
1шт.
Выбрано товаров: 69
