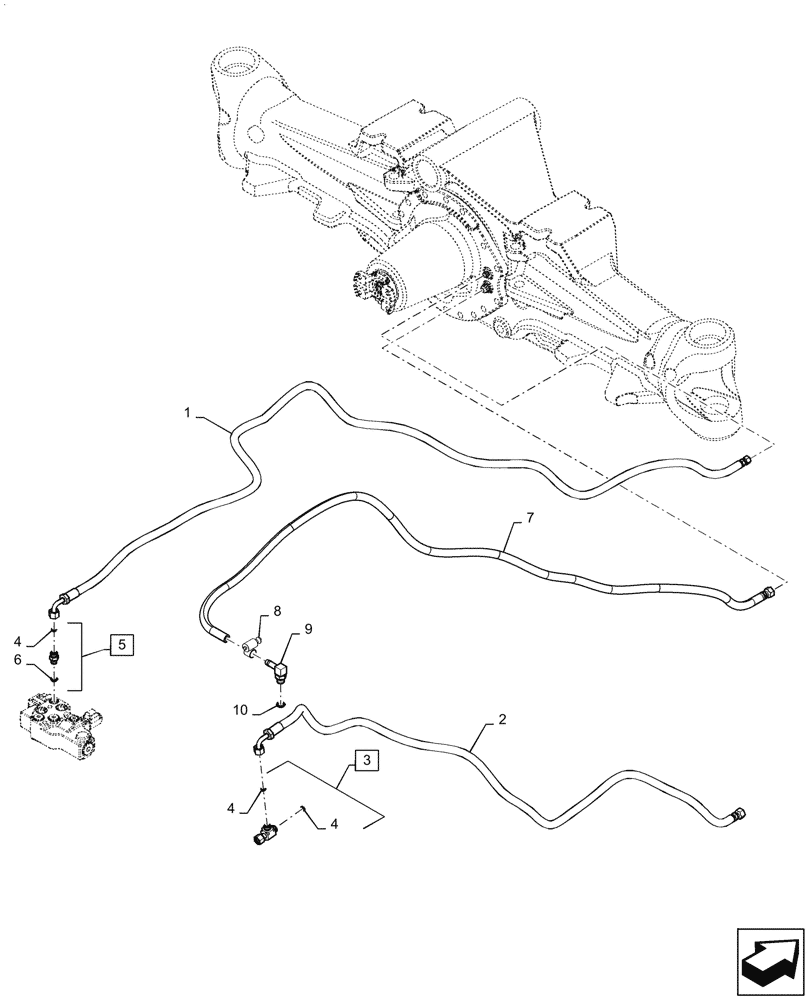

Запчасти Case IH MX210 (05-13) - HYDRAULIC SYSTEM - MFD DIFFERENTIAL LOCK (05) - STEERING

1

414556A2

HOSE ASSY.,9.53mm ID x 3280mm L

Differential Lock Supply

1шт.

2

428609A2

HOSE ASSY.

Differential Lock Return, Serial Range: -AJB0304631

1шт.

3

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl 4, Serial Range: -AJB0304631

1шт.

4

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

, Serial Range: -AJB0304631

3шт.

5

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 4, 6

1шт.

6

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

7

87605685

HOSE ASSY.

Differential Lock Return, Start Serial: AJB0304631

1шт.

8

214-1408

HOSE CLAMP,11.2mm - 19.8mm

, Start Serial: AJB0304631

1шт.

9

87454069

ELBOW,90 Degree Hose Barb, 1/2" ID x M18 x 1.5 Male ORB

, Start Serial: AJB0304631

1шт.

10

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

, Start Serial: AJB0304631

1шт.
