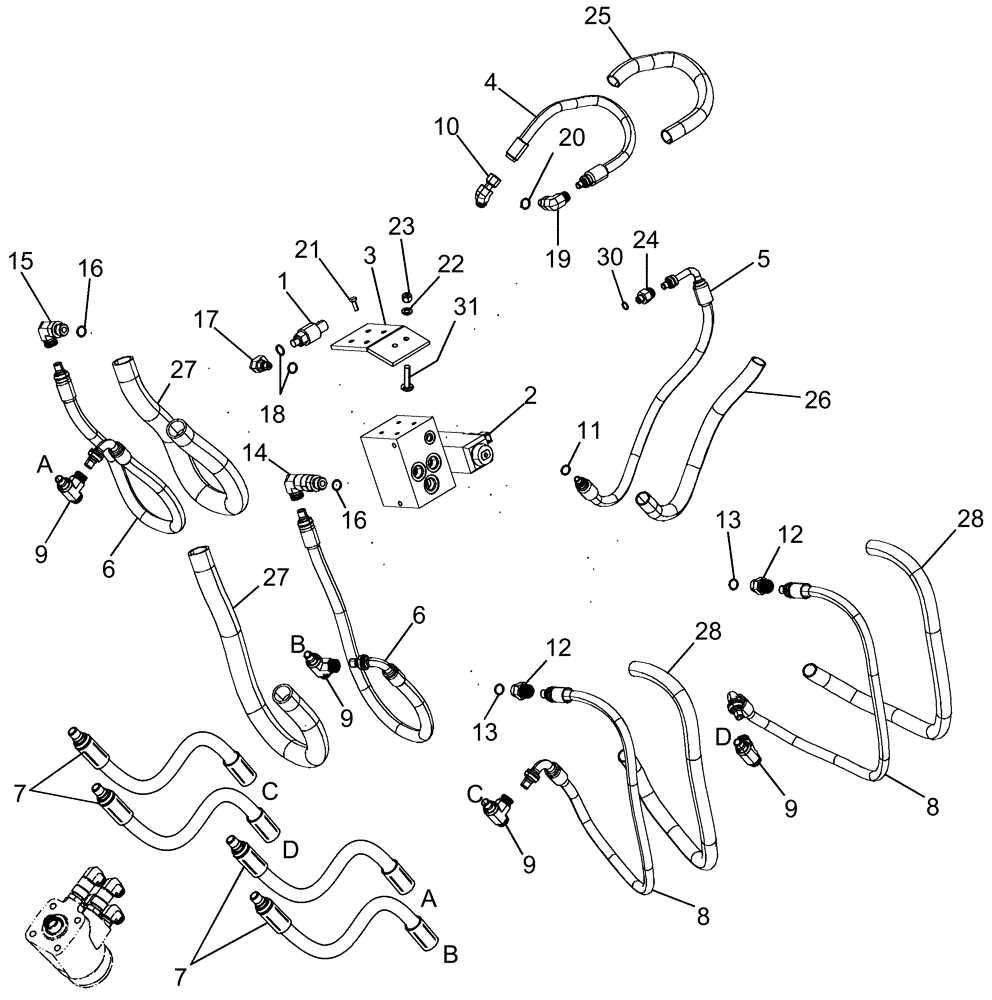

Запчасти Case IH MX210 (05-12) - STEERING SYSTEM - MFD WITH ACCUGUIDE AFTER 04/25/2005 (05) - STEERING

1

87428328

PRESSURE SWITCH

1шт.

2

87339328

VALVE

Accuguide, Incl 32, 33

1шт.

3

87323437

BRACKET

Incl 31

1шт.

4

87325943

HOSE ASSY.

To Priority Valve

1шт.

5

87342465

HOSE ASSY.

To Steering Pump

1шт.

6

87325941

HOSE ASSY.

Supply And Return

2шт.

7

87439248

HOSE ASSY.

4шт.

8

87325940

HOSE ASSY.

2шт.

9

87307694

TEE

Incl 34

1шт.

10

87439251

ELBOW

Incl 35

1шт.

11

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

12

87307824

HYD CONNECTOR

Incl 13, 34

2шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

14

87307693

ELBOW

Incl 16, 34

1шт.

15

87307692

ELBOW

Incl 16, 34

1шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

17

87313877

ELBOW

Incl 18

1шт.

18

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

19

87313878

ELBOW

Incl 20, 35

1шт.

20

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

21

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

4шт.

22

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

23

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

24

87325918

HYD CONNECTOR

Incl 30, 35

1шт.

25

408411A1

CONDUIT

1шт.

26

408412A1

CONDUIT

1шт.

27

87451398

CONDUIT

2шт.

28

87325925

CONDUIT

2шт.

29

86991000

CLAMP

5шт.

30

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

31

NSS

NOT SOLD SEPARAT

WELD STUD Incl in 3

2шт.

32

87340281

ORIFICE

Not Illustrated, Incl in 2

1шт.

33

87330785

VALVE

Load Sense Sequence, Not Illustrated, Incl in 2

1шт.

34

WHFF1222808DS

REPAIR KIT

STC-08 Female

1шт.

35

WHFF1222806DS

REPAIR KIT

STC-06 Female

1шт.
