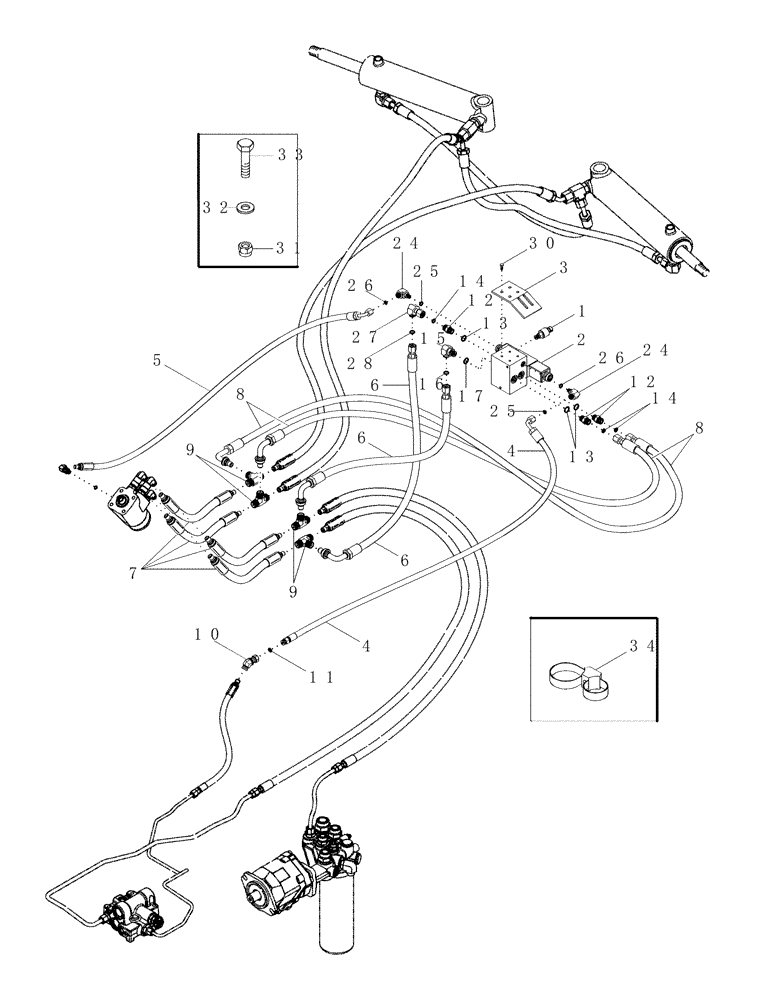

Запчасти Case IH MX210 (05-11) - STEERING SYSTEM - MFD WITH ACCUGUIDE BEFORE 04/25/2005 (05) - STEERING

1

87428328

PRESSURE SWITCH

1шт.

2

87440890

HYDRAULIC VALVE

Accuguide

1шт.

3

87439241

BRACKET

1шт.

3

87323437

BRACKET

1шт.

4

87449832

HOSE ASSY.

To Priority Valve

1шт.

5

87439246

HOSE ASSY.

To Steering Pump

1шт.

6

87439247

HOSE ASSY.

Supply And Return

2шт.

7

87439248

HOSE ASSY.

4шт.

8

87439249

HOSE ASSY.

2шт.

9

87439250

TEE

4шт.

10

87439251

ELBOW

Inc. 11

1шт.

11

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Includes 12, 13

3шт.

12

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

1шт.

13

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

11

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

15

201-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Incl. 16, 17

1шт.

16

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

1шт.

17

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

24

201-311

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 7/16" - 20 Male ORB

Incl. 25, 26

2шт.

25

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

26

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

27

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl. 28

1шт.

28

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

30

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

4шт.

31

832-10406

NUT,M6 x 1, Cl 8

2шт.

32

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

33

814-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

2шт.

34

86991000

CLAMP

4шт.
