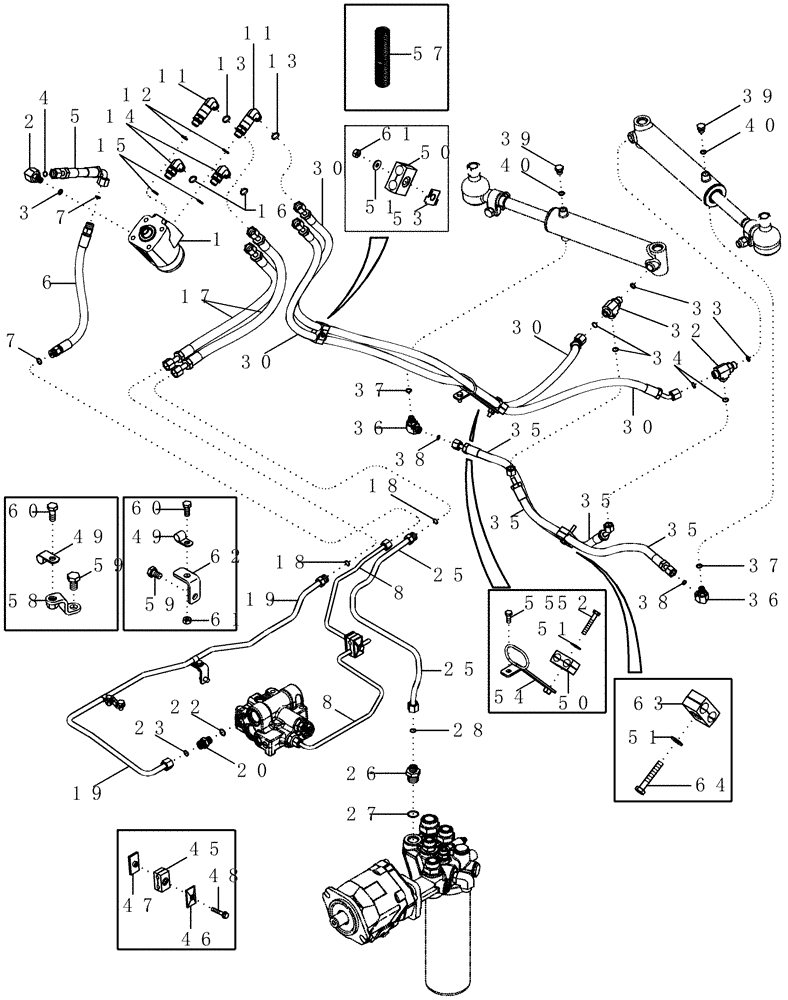

Запчасти Case IH MX210 (05-09) - STEERING SYSTEM - MFD, BSN JAZ126070 (05) - STEERING

1

445303A1

PUMP

Steering

1шт.

With 10 Bolt Hub

1шт.

396591A1

KIT

Seal, Steering Pump

1шт.

1

445304A1

PUMP

Steering

1шт.

With 12 Bolt Hub

1шт.

1

445304A2R

REMAN-STEERING VALVE

Reman For New P/N 445304A1, Steering, With 12 Bolt Hub

1шт.

1

445304A2C

CORE-STEERING VALVE

Return Part Number

1шт.

396591A1

KIT

Seal, Steering Pump

1шт.

2

700-311

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M12 x 1.5 Male ORB

11/16 fc sl x 12 Or, Inc. 3, 4

1шт.

3

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

4

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

5

308247A1

HOSE,9.52mm ID x 180.7mm L

1шт.

6

308000A1

HOSE,9.52mm ID x 454mm L

1шт.

7

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

8

451056A1

TUBE

1шт.

11

700-381

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

13/16 fc sl x 18 Or, Inc. 12, 13

2шт.

12

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

13

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

14

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

Inc. 15, 16

2шт.

15

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

16

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

17

311852A1

HOSE,12.7mm ID x 622.1mm L

2шт.

18

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

19

433591A1

TUBE

1шт.

20

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 22, 23

1шт.

22

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

23

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

25

437015A1

TUBE

1шт.

26

86597761

HYD CONNECTOR,13/16"-16 ORFS x M27 x 2.0 ORB

Incl. 27, 28

1шт.

27

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

28

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

30

419814A2

HOSE ASSY.,9.53mm ID x 1950mm L

2шт.

32

700-412

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Inc. 33, 34

2шт.

33

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

34

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

35

249817A2

HOSE,9.52mm ID x 778mm L

2шт.

36

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 37, 38

2шт.

37

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

38

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

39

220064A1

PLUG,M14 x 1.5, ORB

Incl. 40

2шт.

40

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

45

1546024C1

CLAMP

2 piece

1шт.

46

384870A1

PLATE

9 x 20 x 1,6 mm

2шт.

47

384871A1

PLATE

M8; 10

1шт.

48

844-8045

BOLT,Hvy Hex, M8 x 45mm, Cl 8.8

1шт.

49

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

2шт.

50

387161A1

CLAMP

2шт.

51

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

3шт.

52

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

53

448560A1

RETAINING PLATE

1шт.

54

403534A1

BRACKET

1шт.

55

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

56

408411A1

CONDUIT

3шт.

57

408412A1

CONDUIT

2шт.

58

86988840

BRACKET

1шт.

59

614-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

2шт.

60

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

61

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

62

86988838

BRACKET

1шт.

63

387161A1

CLAMP

1шт.

64

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.
