Запчасти Case IH MX200 (4-044) - BATTERY, BATTERY BOX AND CABLES (04) - ELECTRICAL SYSTEMS

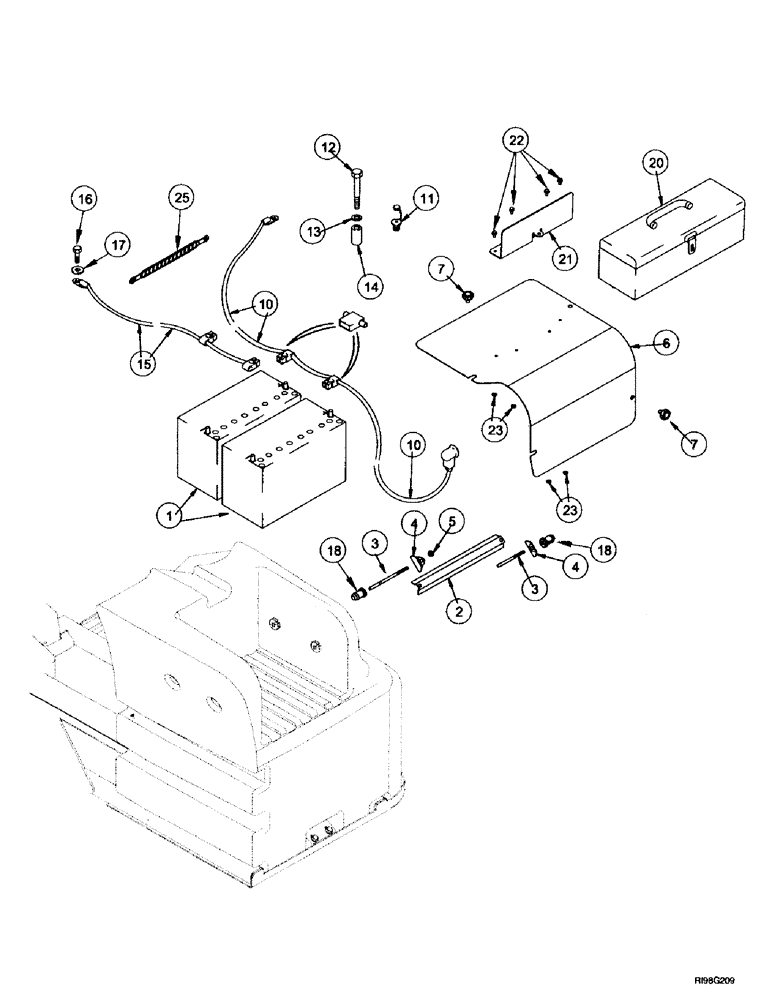

Схема запчастей Case IH MX200 - (4-044) - BATTERY, BATTERY BOX AND CABLES (04) - ELECTRICAL SYSTEMS
10
14
16
2
17
1
10
7
7
3
4
4
11
15
25
23
3
12
23
5
6
13
1b
18
21
20
22

Артикул

Название

Примечание

Количество

1

BMF31G

BATTERY, DRY

BATTERY DRY 12V, Not for UK

2шт.

1

NLS

NO LONGER SERVICED

UK only

2шт.

2

255675A1

ANGLE BAR

2шт.

3

246157A1

TRUSS ROD

4шт.

4

255728A1

PLATE, SUPPORT

4шт.

5

825-5148

SERRATED NUT,M8, Flg Ser

4шт.

6

238016A2

COVER

1шт.

7

258943A1

SCREW

KNOB

4шт.

10

239127A2

CABLE ASSY.

positive

1шт.

11

240557A1

STUD

1шт.

12

814-20070

BOLT,Hex, M20 x 2.5 x 70mm, Cl 8.8

BOLT, M20 x 70

1шт.

13

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

1шт.

14

27828R1

SPACER,26.6mm ID x 33.4mm OD x 39.7mm L

1шт.

15

255835A3

CABLE ASSY.

ground

1шт.

16

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

18

318864A1

SEAL

4шт.

302338A1

PACKAGE

KIT attachment, consists of: Ref. 20 - 23, toolbox

1шт.

20

A181436

TOOL BOX

1шт.

21

255821A2

SUPPORT

BRACKET, toolbox

1шт.

22

905-6012

BOLT,Hex Flg, M6 x 12mm

BOLT flange, M6 x 12, toolbox

4шт.

23

825-5146

SERRATED NUT,M6, Flg Ser

Toolbox

4шт.

25

91963C1

GROUND STRAP

toolbox

1шт.

17

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

Выбрано товаров: 23
