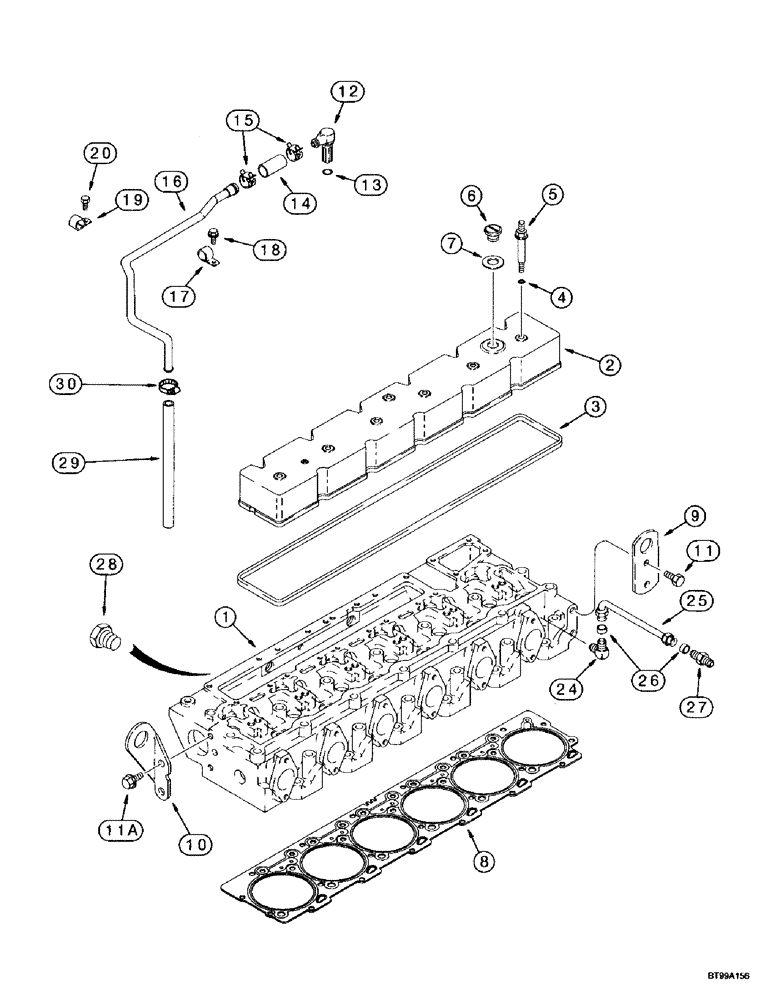

Запчасти Case IH MX200 (2-068) - CYLINDER HEAD, COVER, MX180, MX200, MX220, 6T-830/6TAA-830 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

1

REF

INSTRUCTION

HEAD, see Figure 2-074

1шт.

2

J930903

VALVE COVER

1шт.

3

J905449

SEAL,7.179mm W x 2090mm L

1шт.

Per print, this should be 2090.0 +/-13.0 mm long. This is not one continuous piece. It is a strip that is that long. It should not be a circle.

1шт.

4

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

6шт.

5

J922639

STUD

STUD

6шт.

6

J902468

FILLER CAP,Male

CAP

1шт.

7

J902466

SEAL,39.35mm ID x 59.35mm OD x 3mm Thk

RING

1шт.

8

J931019

GASKET

cylinder head

1шт.

8

J931026

GASKET

cylinder head, 0.25 mm

1шт.

8

J931027

GASKET

cylinder head, 0.50 mm

1шт.

9

J907861

LIFTING EYE

1шт.

10

J906440

LIFTING EYE

1шт.

11

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

2шт.

11a

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

2шт.

12

J935113

ELBOW

CONNECTOR, Replaces: J920497, 238-5115

1шт.

13

J934865

SEAL

17.4 mm ID x 4.3 mm

1шт.

14

J930827

HOSE,51.00 mm

1шт.

15

J934496

CLIP

CLAMP, Replaces: J918163

2шт.

16

J909669

TUBE,15.9-19 mm OD x 642.7 mm L

1шт.

17

J907741

CLAMP,15.88mm ID, 9.52mm Bolt Hole, P Type

1шт.

18

J912072

SELF-TAP SCREW

M8 st x 15

1шт.

19

A77538

CLIP

CLIP

1шт.

20

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

1шт.

24

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ELBOW, 1/4 tube OD x 1/8 PT, 90 deg.

1шт.

25

J924589

TUBE,6.35 mm OD x 112.6 mm L

Includes: Ref. 26

1шт.

26

222-153

SLEEVE,1/4" Tube

2шт.

27

222-22

FITTING,1/2"-24 x 1/8" NPTF w/Nut

ADAPTER, 1/4 tube OD x 1/8

1шт.

28

J906619

PLUG,1/8" - 27

hex, 1/8 PT

1шт.

29

H353854

HOSE ASSY.

813 mm (32 in.), cut from 364359C1

1шт.

Not included in the engine assembly. Purchase separately.

1шт.

30

214-1315

HOSE CLAMP,#15, 15/16", Spring

1шт.

Not included in the engine assembly. Purchase separately.

1шт.
