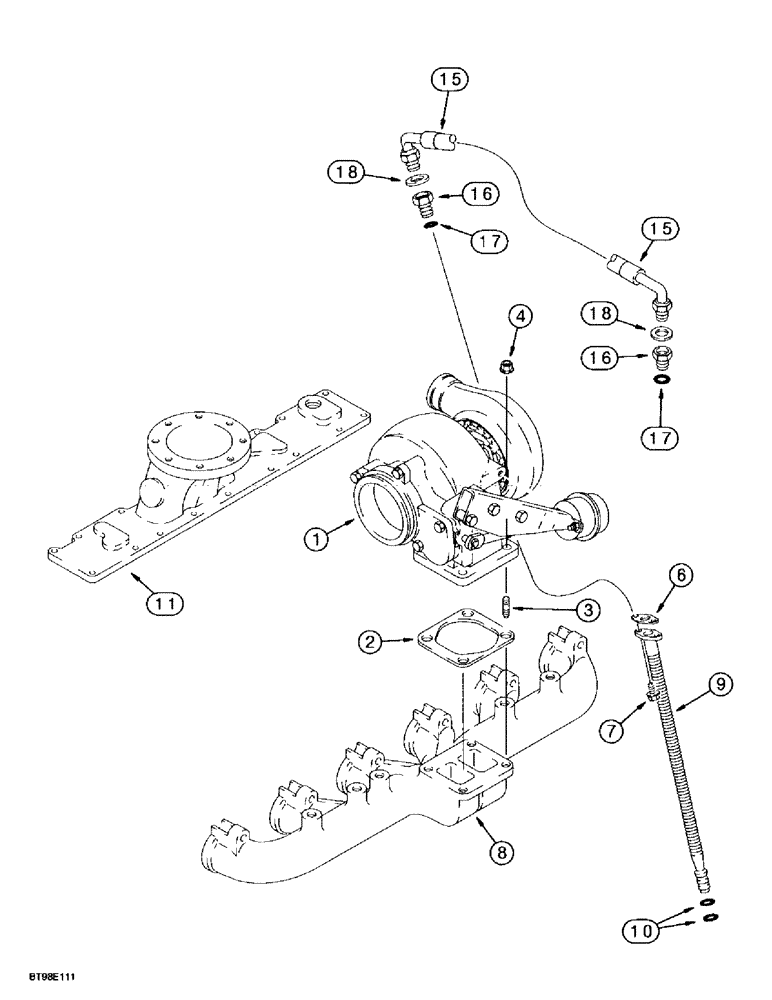

Запчасти Case IH MX200 (2-038) - TURBOCHARGER SYSTEM, MX200, MX220, 6TAA-830 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

1

REF

INSTRUCTION

TURBOCHARGER ASSY, see Figure 2-046

1шт.

2

J911941

GASKET

mounting

1шт.

3

J818823

STUD

M10 x 40

4шт.

4

J818824

FLANGE NUT

flange M10

4шт.

6

J931350

GASKET

mounting, Replaces: J942725

1шт.

7

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

8

J932183

EXHAUST MANIFOLD

see Figure 2-032

1шт.

9

J928629

TUBE

Includes: Ref. 10

1шт.

10

238-7115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 7, 75 Duro

2шт.

11

J926044

COVER

see Figure 2-032

1шт.

15

J921530

HOSE,9.53mm ID x 385mm L

1шт.

16

J919687

HYD CONNECTOR

ADAPTER, Includes: Ref. 17

2шт.

17

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

18

222-993

GASKET,3/8 Tube, Fl, Copper

2шт.
