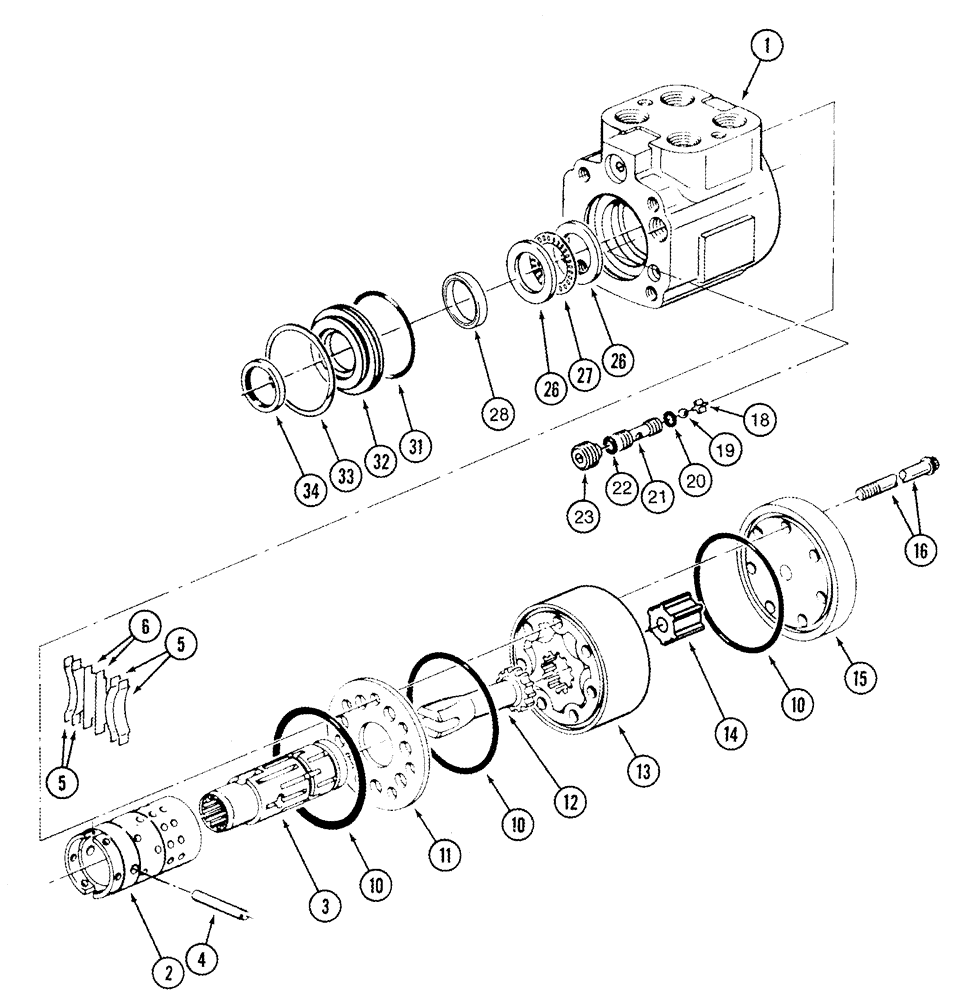

Запчасти Case IH MX200 (05-05) - STEERING HAND PUMP ASSEMBLY, MX180, MX200, MX220 - N.A. ONLY (05) - STEERING

234884A2

PUMP

2 Wheel Drive, Consists Of 1 - 34

1шт.

234885A2

STEERING VALVE

MFD, Consists Of 1 - 34

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

3

NSS

NOT SOLD SEPARAT

Spool

1шт.

4

NSS

NOT SOLD SEPARAT

Pin

1шт.

5

NSS

NOT SOLD SEPARAT

Spring

4шт.

6

NSS

NOT SOLD SEPARAT

Spacer

2шт.

10

238-5040

O-RING,0.07" Thk x 2.864" ID, -40, Cl 5, 75 Duro

3шт.

11

NSS

NOT SOLD SEPARAT

Plate

1шт.

12

NSS

NOT SOLD SEPARAT

Shaft

1шт.

13

NSS

NOT SOLD SEPARAT

Gerotor

1шт.

14

NSS

NOT SOLD SEPARAT

Spacer

1шт.

15

NSS

NOT SOLD SEPARAT

Cap

1шт.

16

NSS

NOT SOLD SEPARAT

Bolt

7шт.

18

NSS

NOT SOLD SEPARAT

Retainer

1шт.

19

NSS

NOT SOLD SEPARAT

Ball

1шт.

20

L30893

O-RING,1/16" Thk x 5/16" ID

7/16 x 5/16 x 1/16 in

1шт.

21

NSS

NOT SOLD SEPARAT

Seat

1шт.

22

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

1шт.

23

NSS

NOT SOLD SEPARAT

Screw

1шт.

26

NSS

NOT SOLD SEPARAT

Race

2шт.

27

NSS

NOT SOLD SEPARAT

Bearing, Needle

1шт.

28

121179A1

SEAL

1шт.

31

238-5225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

1шт.

32

NSS

NOT SOLD SEPARAT

Bushing

1шт.

33

NSS

NOT SOLD SEPARAT

Ring, Retaining

1шт.

34

697494R91

OIL SEAL

1шт.

1343658C3

SEAL KIT

Inc. 10, 20, 22, 28, 31, 34

1шт.
