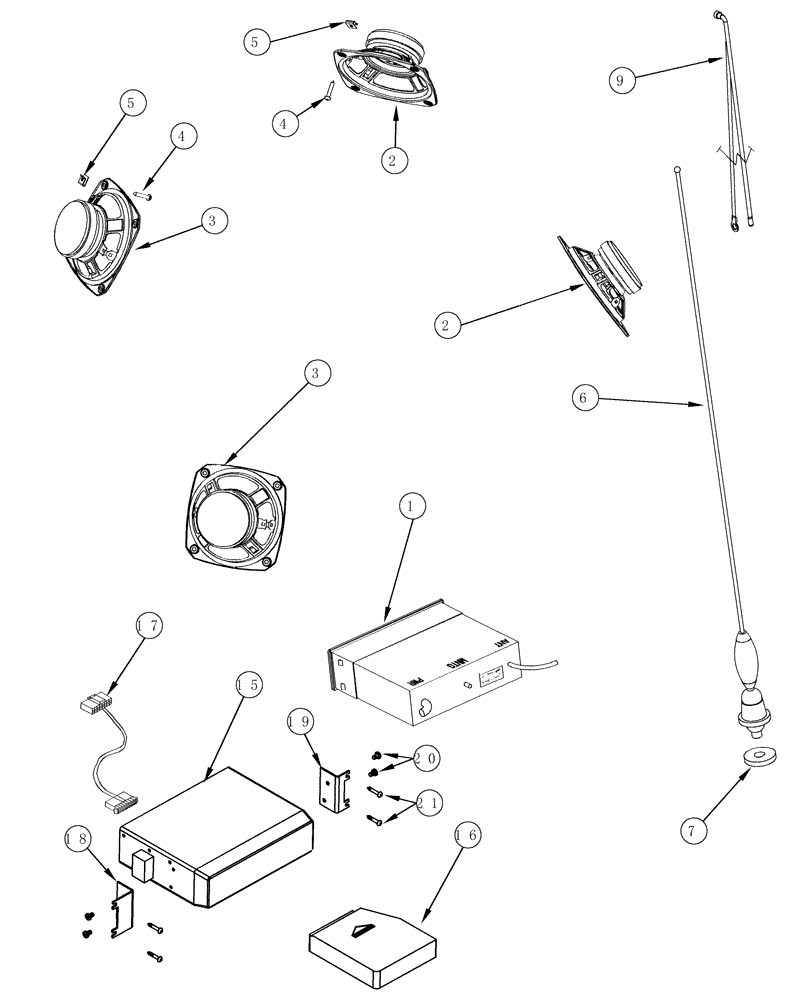

Запчасти Case IH MX200 (04-38) - RADIO, SPEAKERS AND ANTENNA (04) - ELECTRICAL SYSTEMS

313157A1

PACKAGE

Inc. 1 - 7, Order Components

1шт.

1

366631A2

RADIO

AM-FM Stereo

1шт.

2

258342A2

SPEAKER

2шт.

3

258343A2

SPEAKER

With Woofer

2шт.

4

761-17325

SELF-TAP SCREW,Pan Hd, M4.2 x 25

16шт.

5

177269A1

SPRING NUT,M4.2

16шт.

6

318322A1

ANTENNA

1шт.

7

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

1шт.

375729A1

ATTACHMENT

Consists Of 1 - 7, Order Components

1шт.

1

355623A2

RADIO

AM / FM / WB / Cassette

1шт.

2

258342A2

SPEAKER

2шт.

3

258343A2

SPEAKER

With Woofer

2шт.

4

1977686C1

SCREW

M4,2 x 25

16шт.

5

177269A1

SPRING NUT,M4.2

16шт.

6

318322A1

ANTENNA

1шт.

7

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

1шт.

313158A1

PACKAGE

Inc. 1 - 7, Order Components

1шт.

1

325061A2

RADIO

AM/FM/WB,CSS/Changer Ready

1шт.

2

258342A2

SPEAKER

2шт.

3

258343A2

SPEAKER

With Woofer

2шт.

4

1977686C1

SCREW

M4,2 x 25

16шт.

5

177269A1

SPRING NUT,M4.2

16шт.

6

318322A1

ANTENNA

1шт.

7

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

1шт.

9

1983247C1

CABLE

Service

1шт.

313159A1

PACKAGE

Inc. 15 - 20, Order Components

1шт.

15

317688A1

COMPACT DISC PLAYER

1шт.

16

317691A1

MAGAZINE

1шт.

17

303433A1

HARNESS

1шт.

18

355299A2

BRACKET

Left Hand

1шт.

19

355298A2

BRACKET

Right Hand

1шт.

20

543-702

SCREW,Phil Flat Hd, M5 x 10, 4.8

M5 x 10

4шт.

21

761-17325

SELF-TAP SCREW,Pan Hd, M4.2 x 25

4шт.
