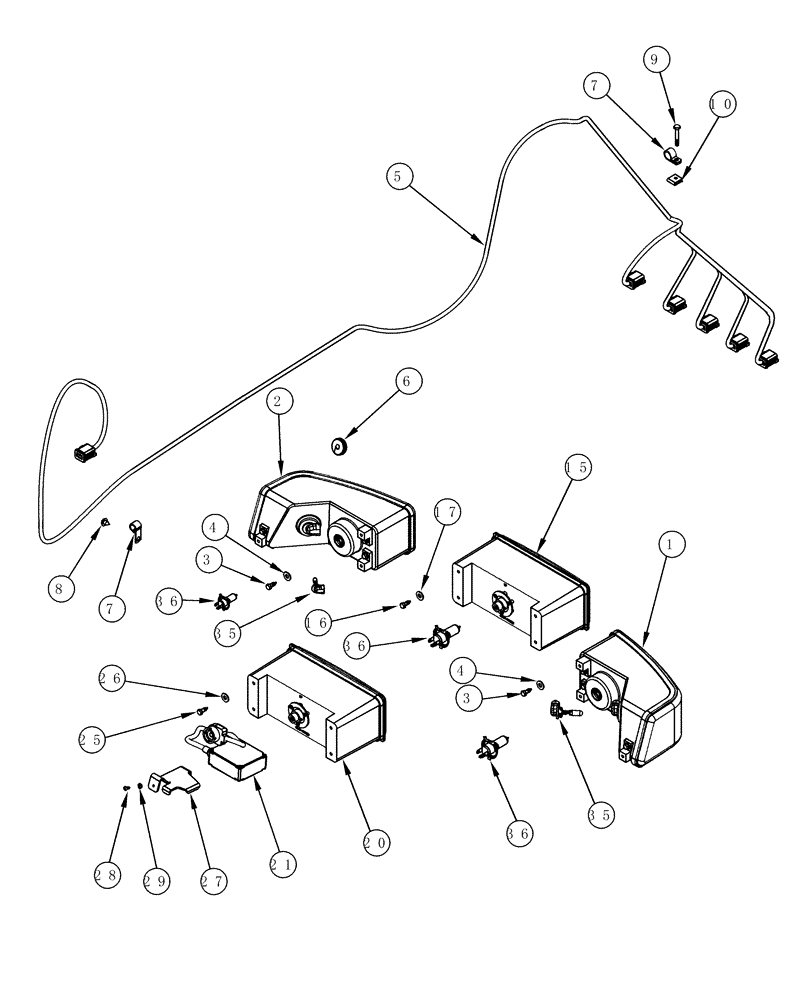

Запчасти Case IH MX200 (04-25) - HEADLAMPS, N.A. ONLY (04) - ELECTRICAL SYSTEMS

1

87429390

RH HEADLAMP

RH DIP, Inc. 35, 36

1шт.

When Replacing Original Headlamp It is Recommended That Both Headlamps Are Changed.

1шт.

2

87429389

LH HEADLAMP

RH DIP, Inc. 35, 36

1шт.

When Replacing Original Headlamp It is Recommended That Both Headlamps Are Changed.

1шт.

3

905286R1

SCREW,Hex, M6.3 x 1.8 x 19mm

M6,3 st x 19

6шт.

4

495-21031

WASHER,1/4"

5/16 x 3/4 x 1/16

6шт.

5

239126A6

HARNESS

1шт.

6

284238A1

GROMMET

1шт.

7

516-22127

CLAMP,12.7mm ID, 8.7mm Bolt Hole, J Type

1/2 ID

6шт.

8

93199C1

FASTENER

2шт.

9

1975782C1

SELF-TAP SCREW,Truss HD, #10 - 16 x 5/8"

4шт.

10

96900C1

SPRING NUT,U, #10-16, Panel type

4шт.

15

232454A2

WORK LAMP,Halogen, 12V, 60W, Clear

Center, Work Lamp, Halogen, Inc. 36

1шт.

16

905286R1

SCREW,Hex, M6.3 x 1.8 x 19mm

M6,3 st x 19

4шт.

17

495-21031

WASHER,1/4"

5/16 x 3/4 x 1/16

4шт.

313168A1

KIT

Inc. 20 - 29, Order Components

1шт.

20

232455A2

WORK LAMP,HID, 12V, 35W, Clear

Center, Work Lamp, High Intensity Discharge - Includes Bulb (NSS due to cost)

1шт.

21

322332A1

BALLAST

1шт.

25

905286R1

SCREW,Hex, M6.3 x 1.8 x 19mm

M6,3 st x 19

4шт.

26

495-21031

WASHER,1/4"

5/16 x 3/4 x 1/16

4шт.

27

319929A1

SUPPORT

1шт.

28

760-14313

SELF-TAP SCREW,Phillips Drive, Pan HD, M4.2 x 1.4 x 13mm

M4,2 x 13

1шт.

29

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

1шт.

35

323093A1

BULB

885-12V, Work Lamp

1шт.

36

87283179

BULB,H4, 12V, 60/55W

1шт.
