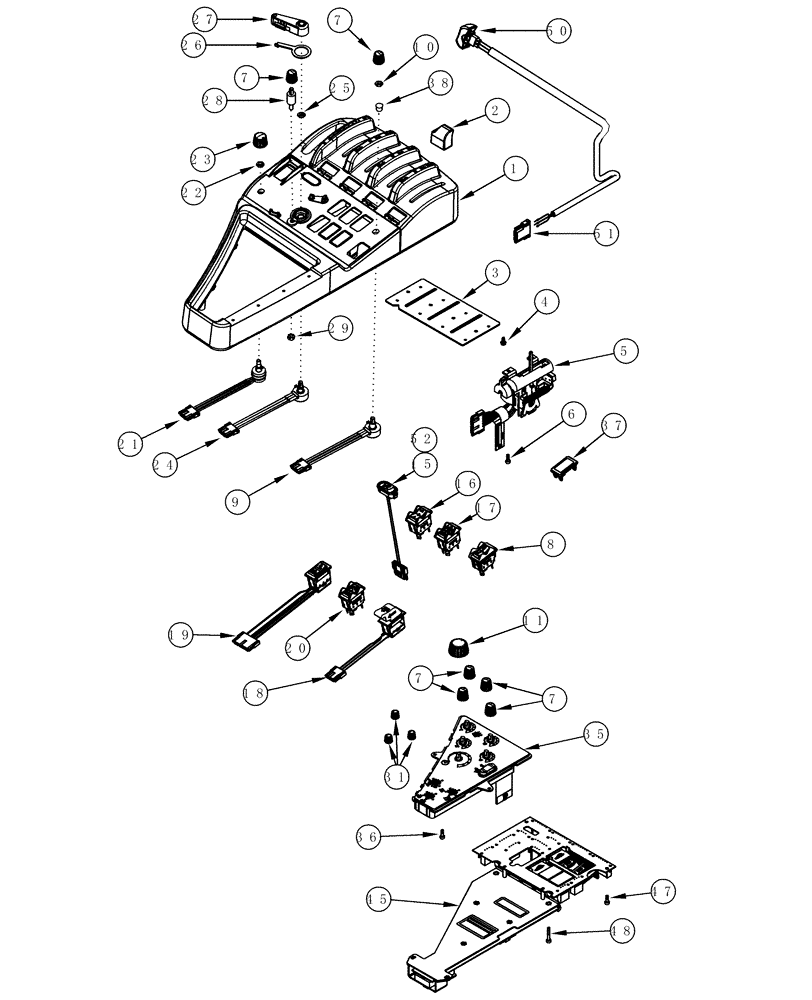

Запчасти Case IH MX200 (04-21) - CONTROLS RIGHT HAND CONSOLE (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

Cover Assy, See Figures 9-35, 9-36

1шт.

2

220455A3

KNOB

1шт.

3

230098A1

PLATE

1шт.

4

368048A1

SCREW,Prev Torque, M4 x 12mm, Cl 8.8, Full Thd

M4 x 12

4шт.

5

302992A2

LEVER

Remote Hydraulics

1шт.

47372893R

REMAN-JOYSTICK

MX180, MX200, MX220, MX240, MX270 All (P.I.N. JJA0105000 & AFTER) (1/99-), Reman for New PN 302992A2

1шт.

47372893C

CORE-JOYSTICK

Return Number

1шт.

6

281-3446

SELF-TAP SCREW,Hex Wash Hd, #8 x 3/8"

No. 8 NC x 3/8 in

1шт.

7

276797A1

KNOB

1шт.

8

277499A1

SWITCH

5th Remote

1шт.

9

256305A2

POTENTIOMETER,1000 Ohm

Flow Control, 5th Remote, Inc. 10

1шт.

10

A39888

NUT

3/8-32

1шт.

11

187820A1

KNOB

1шт.

15

229366A1

SWITCH

Creep Speed

1шт.

16

277497A1

SWITCH

MFD

1шт.

17

277498A1

IGNITION SWITCH

Differential Lock

1шт.

18

229370A4

SWITCH

P.T.O.

1шт.

19

255676A1

SWITCH

Hitch Control

1шт.

20

229373A1

SWITCH

Slip Limit Control

1шт.

21

256305A2

POTENTIOMETER,1000 Ohm

Draft Control, Inc. 22

1шт.

22

A39888

NUT

3/8-32

1шт.

23

314601A1

BUTTON

1шт.

24

256304A2

POTENTIOMETER,1000 Ohm

Hitch Position

1шт.

25

192231A1

NUT

1/4 in

1шт.

26

248087A1

LEVER

1шт.

27

299483A2

CONTROL LEVER

1шт.

28

256303A1

STUD

1шт.

29

829-1406

NUT,Hex, M6 x 1, Cl 10.9

M6; 10.9

1шт.

31

223433A1

KNOB

3шт.

35

232869A5

PANEL

With Hitch

1шт.

35

238290A4

PANEL

Without Hitch

1шт.

36

760-14316

SELF-TAP SCREW,Pan Hd, M4.2 x 16

2шт.

37

86000535

PLUG,1.427" x .62", Plastic

1шт.

38

353-402

PLUG,Dome, .375" hole, Nylon

1шт.

38

353-401

PLUG,Dome, .312" hole, Nylon

1шт.

45

399285A1

UNIT

Without Software

1шт.

45

87308354R

REMAN ELECT CONTROL

MX180, MX220, MX200, MX240, MX270, All CASE IH MAGNUM TRACTOR (P.I.N. JJA0105000 & AFTER) (1/99-), Reman for New PN 399285A1

1шт.

45

87308354C

CORE-ELECTRONIC CONT

Return Number

1шт.

47

864-4012

HEX SOC SCREW,M4 x 12mm, Cl 8.8

4шт.

48

864-4025

HEX SOC SCREW,M4 x 25mm, Cl 8.8

M4 x 25; 8,8

2шт.

50

258010A2

SWITCH

Transmission Shift

1шт.

51

235676A1

CONNECTOR, ELEC

CONNECTOR

1шт.

52

353942A1

SWITCH

Laser Mode

1шт.
