Запчасти Case IH MX200 (04-01) - HARNESS ENGINE, MX180, MX200, MX220 (04) - ELECTRICAL SYSTEMS

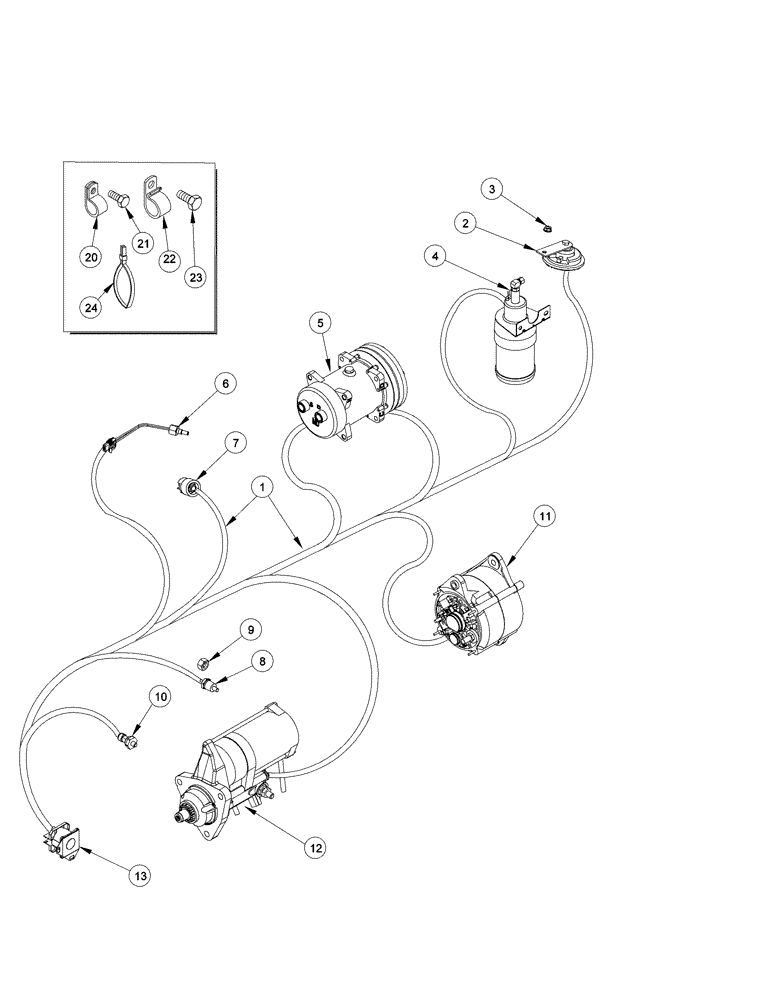

Схема запчастей Case IH MX200 - (04-01) - HARNESS ENGINE, MX180, MX200, MX220 (04) - ELECTRICAL SYSTEMS
13
21
20
22
9
6
5
8
12
3
1
2
11
24
10
4
23
7

Артикул

Название

Примечание

Количество

MX180, MX200, MX220

1шт.

1

358179A1

HARNESS

1шт.

2

237582A1

HORN

1шт.

3

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

4

REF

INSTRUCTION

Solenoid Assy, Ether Start, See Figure 2-07

1шт.

5

REF

INSTRUCTION

Compressor Assy, See Page(s) 9-101

1шт.

6

194346A1

SENSOR

Air to Air Temperature

1шт.

7

1983640C1

RESTRICTION SWITCH

Air Filter Restriction

1шт.

8

A176566

TRANSMITTER

Coolant

1шт.

9

193-1000

NUT,Keps, w/LW,#10-32

No. 10 NF

1шт.

10

238082A1

SWITCH, PRESSURE

PRESSURE SWITCH Oil Pressure

1шт.

11

REF

INSTRUCTION

Alternator Assy, See Figures 4-13, 4-14

1шт.

12

REF

INSTRUCTION

Starter Assy, See Figure 4-16

1шт.

13

REF

INSTRUCTION

Solenoid, See Figure 4-17

1шт.

20

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

1шт.

21

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

22

229354A1

CLAMP,20.62mm ID, 12.7mm Bolt Hole, J Type

1шт.

23

615-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

1шт.

24

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

7шт.

Выбрано товаров: 19
