Запчасти Case IH MX200 (03-02) - FUEL INJECTION SYSTEM, MX200, MX220, 6TAA-830 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM

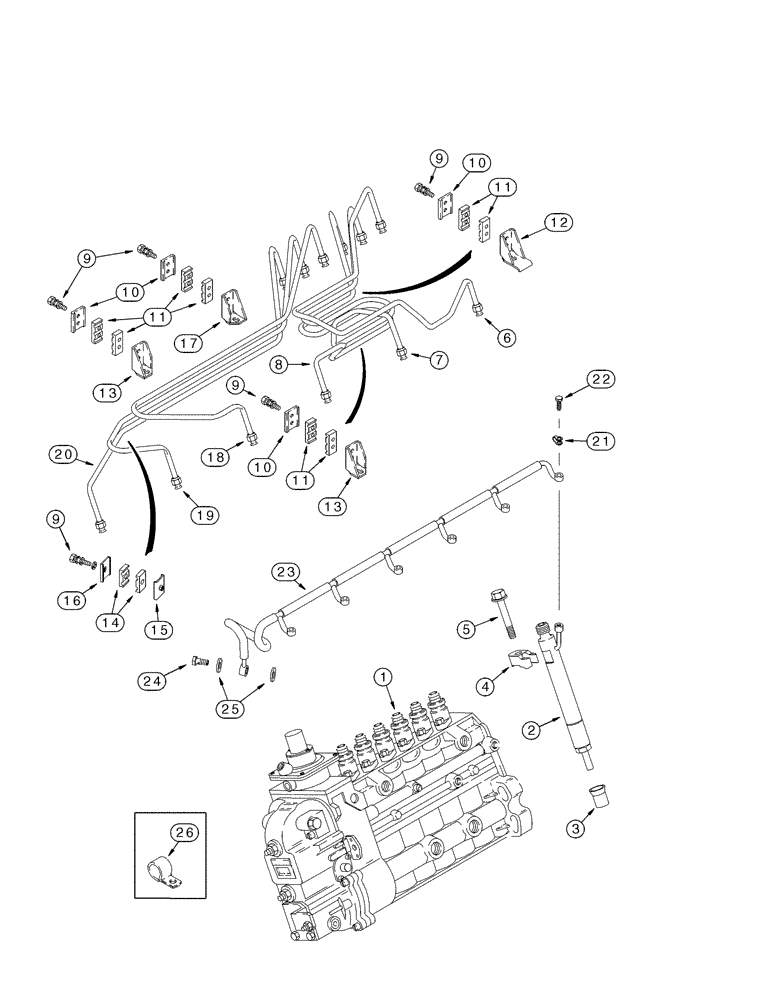

Схема запчастей Case IH MX200 - (03-02) - FUEL INJECTION SYSTEM, MX200, MX220, 6TAA-830 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM
12
22
26
11
9
13
6
1
10
15
8
19
10
4
21
16
9
9
3
9
2
23
5
13
7
24
18
17
11
11
20
25
14
10

Артикул

Название

Примечание

Количество

1

J930530

FUEL INJECTION PUMP

MX200(1)

1шт.

1

JR930530

REMAN-INJECTION PUMP

Remanufactured Injection Pump

1шт.

1

JC930530

CORE-INJECTION PUMP

Return Part Number, Injection Pump

1шт.

1

J930529

FUEL INJECTION PUMP

MX220(1)

1шт.

1

JR930529

REMAN-INJECTION PUMP

Remanufactured Injection Pump

1шт.

1

JC930529

CORE-INJECTION PUMP

Return Part Number, Injection Pump

1шт.

2

J926787

INJECTOR ASSY.

See Figure 3-17

6шт.

2

JR926787

REMAN-FUEL INJECTOR

Remanufactured Injection Pump

6шт.

2

JC926787

CORE-FUEL INJECTOR

Return Part Number, Injection Pump

6шт.

3

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

6шт.

4

J910279

CLAMP

6шт.

5

845-8080

BOLT,Hvy Hex, M8 x 80mm, Cl 8.8

6шт.

6

J930391

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 740 mm L

No. 1

1шт.

7

J930392

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 740 mm L

No. 2

1шт.

8

J930393

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 740 mm L

No. 3

1шт.

9

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

9шт.

10

J904519

SUPPORT

4шт.

11

J917747

CLAMP

8шт.

12

J919622

BRACE

1шт.

13

J282942

BRACKET

2шт.

14

J917746

CLAMP

2шт.

15

J917717

BRACE

1шт.

16

CURJ904711

CLAMP

1шт.

17

J282942

BRACKET

1шт.

18

J930394

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 740 mm L

No. 4

1шт.

19

J930395

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 740 mm L

No. 5

1шт.

20

J930396

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 740 mm L

No. 6

1шт.

21

J903380

SEAL

6шт.

22

J905307

BANJO BOLT,M6 x 1 x 14.30mm

7шт.

23

J920595

TUBE ASSY.

1шт.

24

J924726

BANJO BOLT

1шт.

25

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

2шт.

26

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

1/4 ID

2шт.

Выбрано товаров: 33
