Запчасти Case IH MX200 (02-45) - GASKET KIT, MX180, MX200, MX220, 6T-830/6TAA-830 EMISSIONS CERTIFIED ENGINE, CYLINDER BLOCK (02) - ENGINE

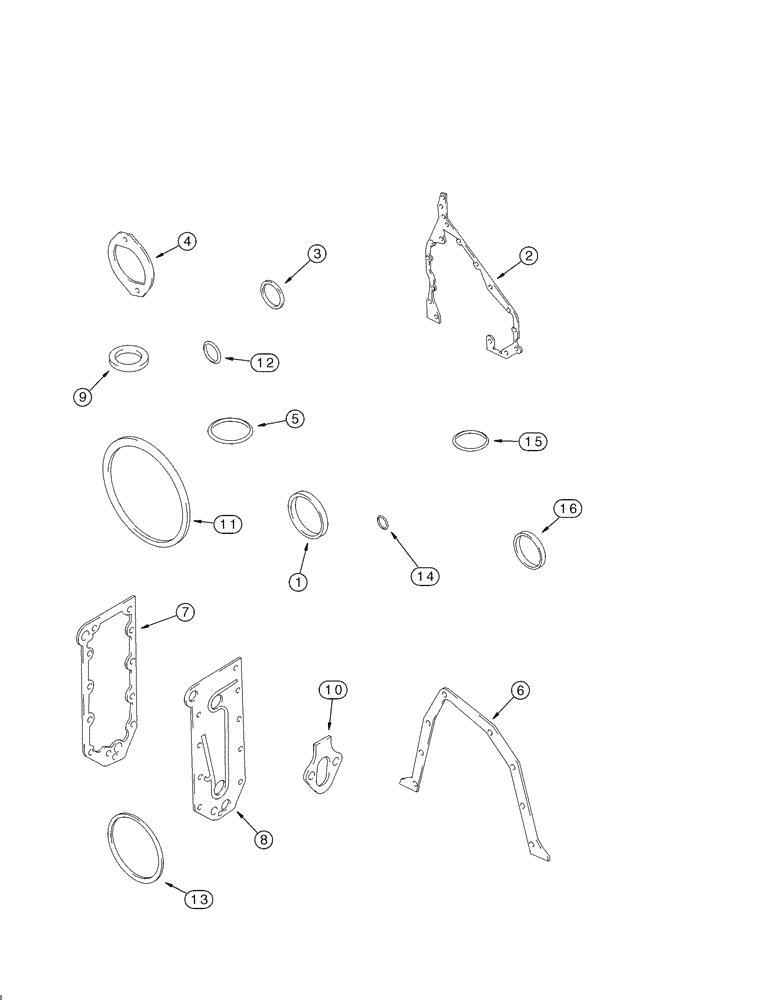

Схема запчастей Case IH MX200 - (02-45) - GASKET KIT, MX180, MX200, MX220, 6T-830/6TAA-830 EMISSIONS CERTIFIED ENGINE, CYLINDER BLOCK (02) - ENGINE
12
9
4
6
13
3
2
7
11
15
16
10
8
5
1
14

Артикул

Название

Примечание

Количество

A77855

KIT

Cylinder Block, Inc. 1 - 16

1шт.

1

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

See Figure 2-14

1шт.

2

J929253

GASKET

See Figure 2-14

1шт.

3

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING See Figure 2-14

1шт.

4

J931351

GASKET

See Figure 2-45

1шт.

5

J902089

SEAL,0.139" Thk x 3.859" ID, -241

See Figure 2-12

1шт.

6

J914301

GASKET

See Figure 2-40

1шт.

7

J918174

GASKET,0.71mm Thk

See Figure 2-26

1шт.

8

J929011

GASKET,1.19mm Thk

See Figure 2-26

1шт.

9

J901798

SEALING WASHER

Not Used

1шт.

10

J931059

GASKET

Replaces J931348, See Figures 3-05, 3-06

1шт.

11

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING Not Used

1шт.

12

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

Not Used

1шт.

13

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

See Figure 2-42

6шт.

14

J913994

O-RING

See Figure 2-14

1шт.

15

J916284

O-RING

See Figure 3-09

1шт.

16

J926722

SEALING RING,Square, 2.51mm Thk x 6.27mm ID, -108

Not Used

1шт.

Выбрано товаров: 17
