Запчасти Case IH MX200 (02-43) - GASKET KIT, MX180, MX200, MX220, 6T-830/6TAA-830 EMISSIONS CERTIFIED ENGINE, VALVE GRIND (02) - ENGINE

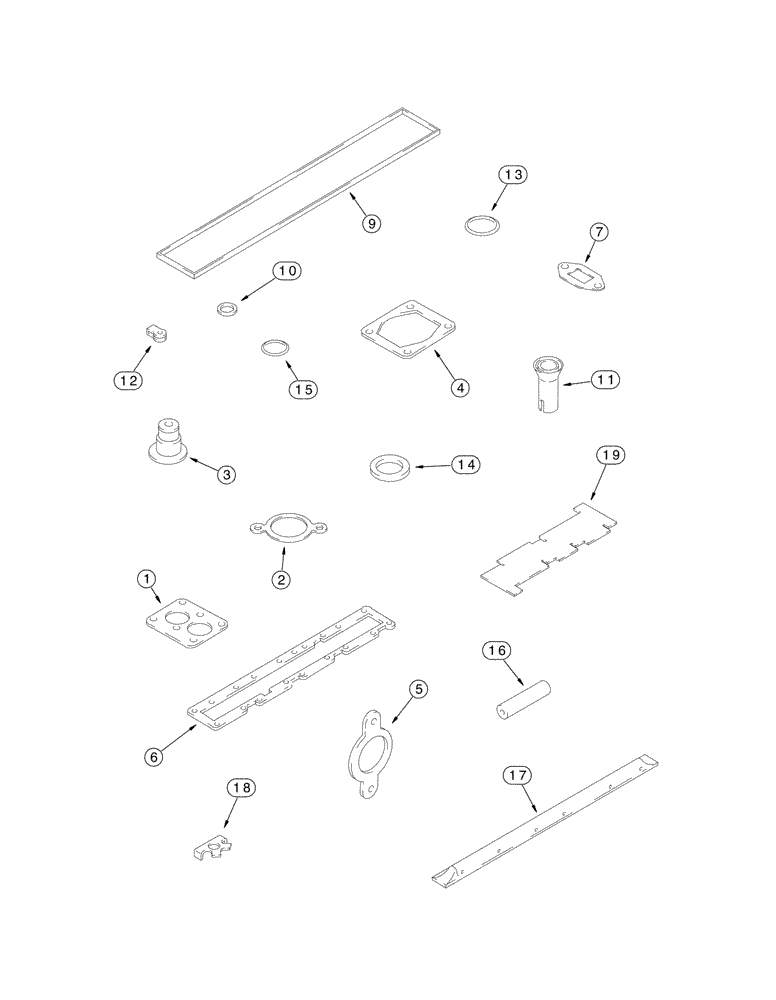

Схема запчастей Case IH MX200 - (02-43) - GASKET KIT, MX180, MX200, MX220, 6T-830/6TAA-830 EMISSIONS CERTIFIED ENGINE, VALVE GRIND (02) - ENGINE
16
4
7
17
5
15
9
18
1
10
19
6
12
14
11
13
2
3

Артикул

Название

Примечание

Количество

A77842

GASKET KIT

Consists Of 1 - 19

1шт.

1

J914310

GASKET,0.8mm Thk

See Figure 2-33

1шт.

2

J918779

GASKET,1.19mm Thk

See Figure 2-33

1шт.

3

J927642

SEAL

See Figure 2-31

12шт.

4

J911941

GASKET

See Figures 2-19, 2-20

1шт.

5

J929012

GASKET,0.5mm Thk

See Figures 2-16, 2-17

6шт.

6

J914311

MANIFOLD GASKET

See Figures 2-16, 2-17

1шт.

7

J285747

GASKET

See Figures 2-19, 2-20, 2-21

1шт.

9

J905449

SEAL,7.179mm W x 2090mm L

See Figure 2-29

1шт.

10

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

See Figure 2-29

6шт.

11

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

See Figures 3-1, 3-2, 3-17

6шт.

12

J903380

SEAL

See Figures 3-1, 3-2, 3-17

7шт.

13

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

See Figures 6-15, 6-20 to 6-24, 6-27, 6-39

1шт.

14

J923261

WASHER,7.2mm ID x 15mm OD x 2.5mm Thk

2,5 mm, See Figure 3-17

6шт.

15

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

See Figures 2-33, 2-34

1шт.

16

J930827

HOSE,51.00 mm

See Figure 2-29

1шт.

17

J919677

TUBE

See Figure 2-31

1шт.

18

J914708

LOCKING PLATE

See Figures 2-16, 2-17

12шт.

19

J823921

GAUGE

1шт.

Выбрано товаров: 19
