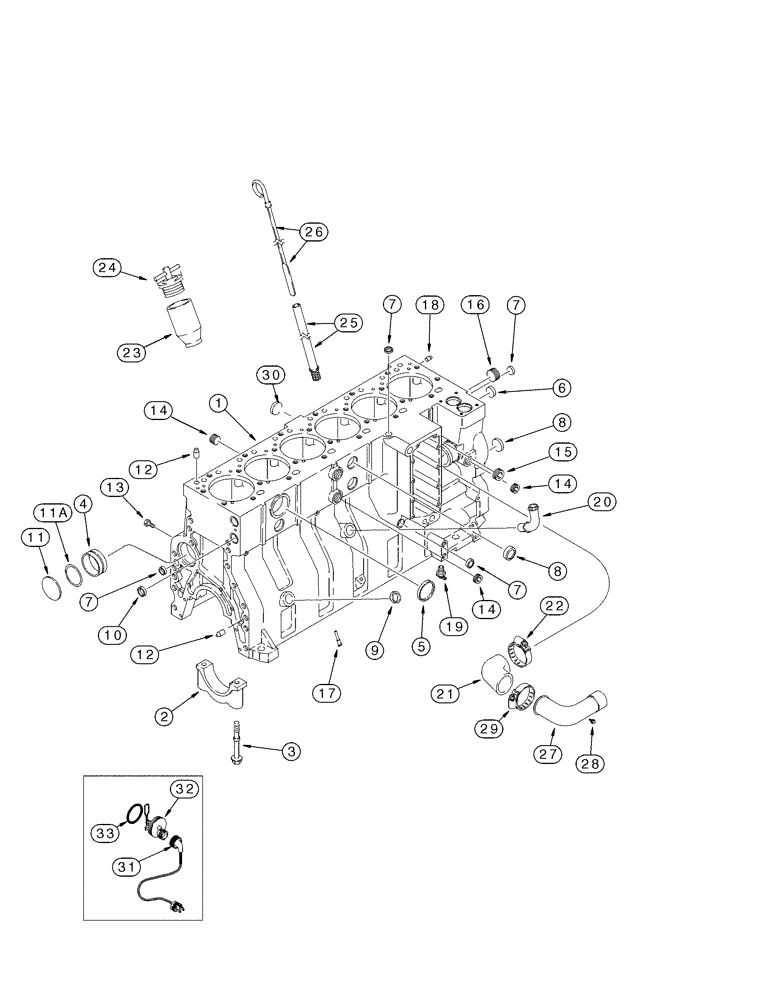

Запчасти Case IH MX200 (02-38[A]) - CYLINDER BLOCK- FILTER, VATTEN, MX200, MX220, 6TAA-830 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

256635A1

ENGINE ASSEMBLY

ENGINE ASSY MX200(1), Complete Engine, Less, Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler and Exhaust Pipe, Order 243308A1

1шт.

256636A1

ENGINE ASSEMBLY

ENGINE ASSY MX200(1), Complete Engine, Less, Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler and Exhaust Pipe, Order 243308A1

1шт.

243308A1

BASIC ENGINE

Less, Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold, Flywheel and Housing, Oil Fill and Dipstick, Fuel Injection Pump, Injectors and Lines, Front Pulley, Belt Tensioner, Turbocharger and Aftercooler; See Note

1шт.

243308A1R

REMAN-BASIC ENGINE

MX200, MX220

1шт.

243308A1C

CORE-ENGINE

Return Part Number

1шт.

J934600

SKELETON ENGINE

Short, With: Stripped Block, Pistons, Connecting Rods and Bearings, Crankshaft and Bearings, Consists Of 1 - 8

1шт.

JR934600

ENGINE, EXCHANGE

Engine (Exchange) Short, Remanufactured

1шт.

JC934600

CORE-ENGINE

Return Part Number

1шт.

87448701

REMAN-SHORT ENGINE

Reman for New PN J934600

1шт.

6-830-SHBC

CORE

Return Part Number, Short Block

1шт.

JC925187

CORE-SHORT ENGINE

1шт.

1

J934900

SHORT ENGINE

Stripped, Also Order A77716, Consists Of 2 - 8

1шт.

2

J936058

BEARING CAP

7шт.

3

J916369

FLANGE BOLT,Hex, M14 x 2 x 128mm, Cl 10.9

14шт.

4

J945329

CAMSHAFT BEARING,60.08mm ID x 64.13mm OD x 25mm L

Replaces J943199, See Figure 2-36

7шт.

5

A77782

PLUG

58 mm

1шт.

6

A77586

PLUG

28.9 mm

1шт.

7

A77506

PLUG

21 mm

4шт.

8

J905401

PLUG

35 mm

4шт.

A77716

BLOCK

Consists Of 9 - 11, 12 - 20

1шт.

9

J920706

PLUG

Not Used

1шт.

10

J920443

PLUG

Not Used

2шт.

11

41-3044

PLUG,Exp, 2 3/4"

(70 mm)

1шт.

11a

J926048

O-RING,0.07" Thk x 2.614" ID, -38, Cl 5, 75 Duro

66 mm ID

1шт.

12

J901846

PIN,12.01mm OD x 24mm L

4шт.

13

J906619

PLUG,1/8" - 27

1/8 PT

6шт.

14

A77429

PLUG

1/2 PT

4шт.

15

A77505

PLUG

3/4 PT

2шт.

16

A77533

PLUG

1 PT

1шт.

17

J928031

NOZZLE,8.5mm OD x 30mm L

12шт.

18

J900257

PIN,10.01mm OD x 16mm L

16 mm

2шт.

19

217-103

COCK, DRAIN

1/4" PT

1шт.

20

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

Not Used

1шт.

21

J920762

ELBOW

79 mm (3-1/8 inch)

1шт.

22

J918521

HOSE CLAMP,59mm - 83mm

1-13/16 - 2-3/4

1шт.

23

J905408

TUBE,35.13 mm ID x 52.39 mm OD x 100 mm L

1шт.

24

J934480

FILLER CAP

1шт.

25

A77645

TUBE

1шт.

26

J934481

DIPSTICK

1шт.

27

J907208

TUBE,50.8 mm DIA x 295.3 mm L

1шт.

28

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

1шт.

29

J922847

CLAMP

1шт.

30

J905401

PLUG

35 mm

1шт.

196804A1

KIT

Engine Block Heater, 120 Volt, Consists Of 31 - 33

1шт.

31

196466A1

ELECTRIC CABLE

1829 mm (72 in)

1шт.

32

NSS

NOT SOLD SEPARAT

Element

1шт.

33

J910517

O-RING

240 Volt

1шт.

A77665

SET OF PARTS

Coolant Heater, 240V, Consists Of 31 - 33

1шт.

31

NSS

NOT SOLD SEPARAT

Cable

1шт.

32

NSS

NOT SOLD SEPARAT

Element

1шт.

33

J910517

O-RING

Repair Kit

1шт.

A77885

PACKAGE, REPAIR

Engine Block, Not Illustrated, Inc. 34 - 41, Serial Range: -45636465

1шт.

34

A77854

PACKAGE, REPAIR

Piston and Sleeve, Standard, See Figure 2-42

6шт.

A77885

PACKAGE, REPAIR

Kit, Repair, Engine Block, Not Illustrated, Inc. 34 - 41, Serial Range: -45636465

1шт.

35

A77563

BEARING SET

See Figure 2-42

6шт.

36

J901597

PIN

See Figure 2-42

6шт.

37

J945930

BEARING SET

See Figure 2-40

6шт.

38

J945929

THRUST BEARING

See Figure 2-40

1шт.

39

A77976

GASKET KIT

1шт.

40

J935585

GASKET

See Figure 2-29

1шт.

41

A77679

GASKET KIT

See Figure 2-27

1шт.

A77913

PACKAGE, REPAIR

Kit, Repair - Engine Block, Not Illustrated Inc. 42 - 49, Start Serial: 45636466

1шт.

42

A77912

PACKAGE, REPAIR

Piston, See Figure 2-42

6шт.

43

A77563

BEARING SET

See Figure 2-42

6шт.

44

J901597

PIN

See Figure 2-42

6шт.

45

J945930

BEARING SET

See Figure 2-40

6шт.

46

J945929

THRUST BEARING

See Figure 2-40

1шт.

47

A77976

GASKET KIT

1шт.

48

J935585

GASKET

See Figure 2-29

1шт.

49

A77679

GASKET KIT

See Figure 2-27

1шт.
