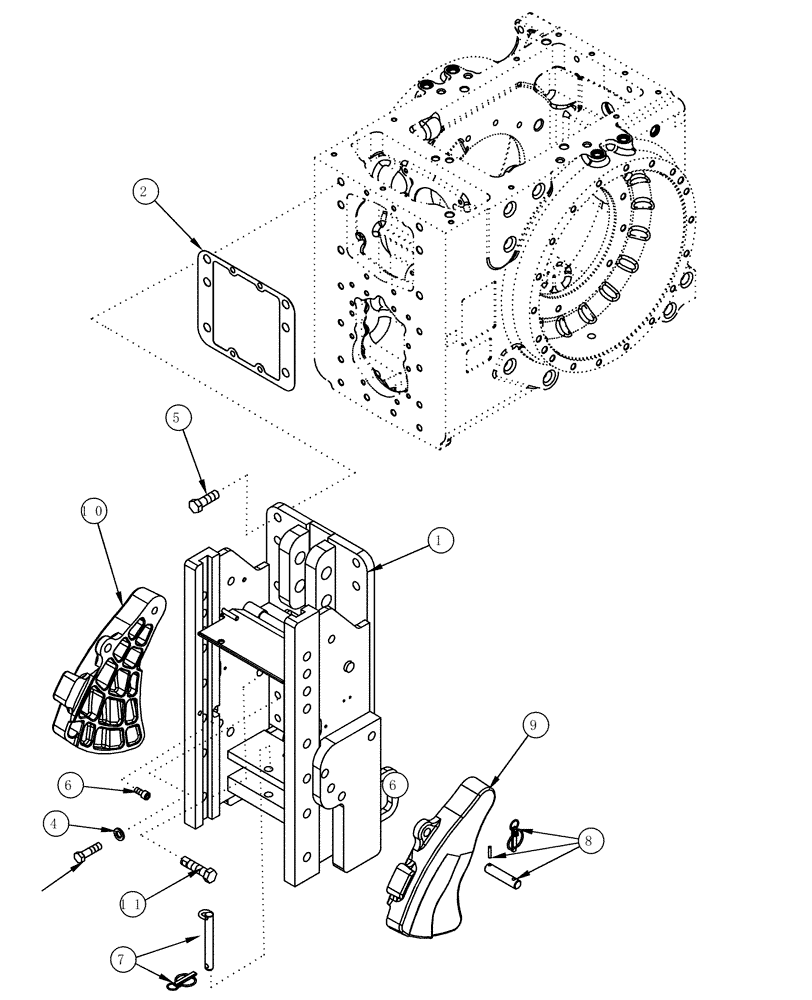

Запчасти Case IH MX200 (09-63) - TRAILER HITCH AUTO CLEVIS, GERMANY ONLY (09) - CHASSIS/ATTACHMENTS

1

314326A5

FRAME

MX180(1)

1шт.

1

314328A5

FRAME

MX200(1), MX220(1), MX240(1), MX270(1)

1шт.

2

379145A2

GASKET,0.79mm Thk

1шт.

3

828-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

8шт.

4

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

5

628-20060

SCREW,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

6шт.

6

864-12025

HEX SOC SCREW,M12 x 25mm, Cl 8.8

M12 x 25

1шт.

7

333337A1

HITCH PIN,19mm OD x 155mm L

2шт.

8

320986A1

PIN

2шт.

9

293792A4

STOP

Right Hand

1шт.

10

293789A4

CAM

Left Hand

1шт.

11

804-20080

BOLT,Hex, M20 x 2.5 x 80mm, Cl 10.9

M20 x 80; 10,9

2шт.
