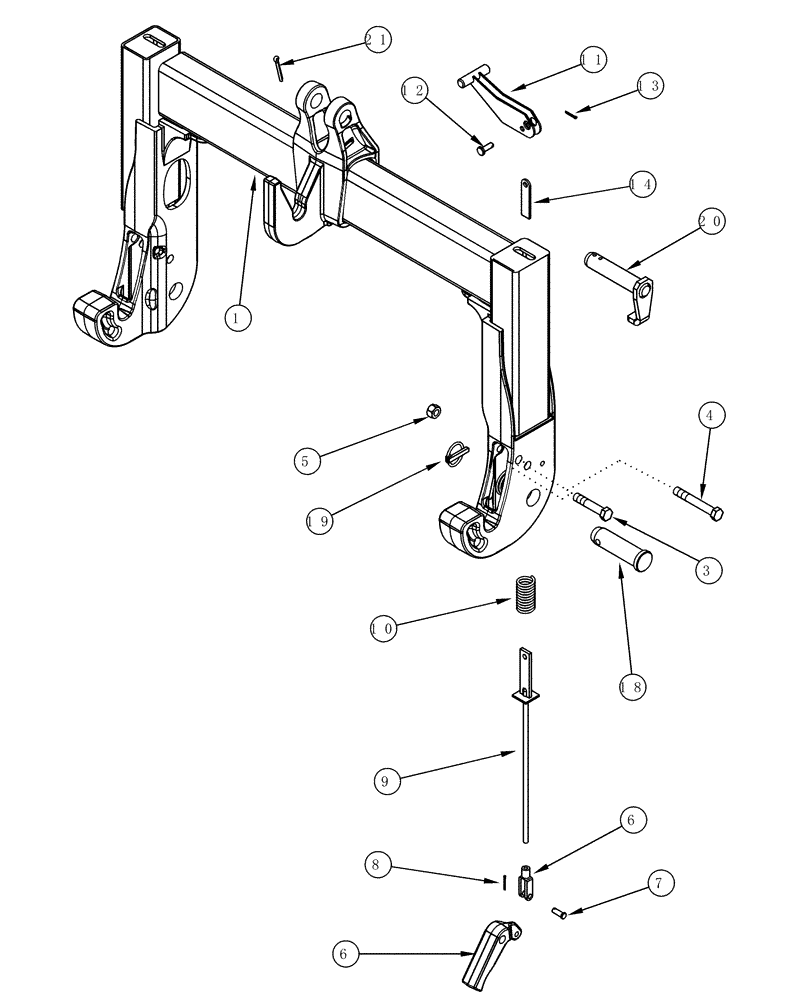

Запчасти Case IH MX200 (09-61) - QUICK HITCH COUPLER FIXED, N.A. ONLY, CATEGORY III (09) - CHASSIS/ATTACHMENTS

310527A

KIT

Order From Machinery Price List, Inc. 1 - 21

1шт.

300948A4

HITCH ASSY, TRAILER

Consists Of 1 - 14

1шт.

1

NSS

NOT SOLD SEPARAT

Coupler, Quick

1шт.

2

297598A1

LATCH

2шт.

3

827-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

2шт.

4

827-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9

2шт.

5

829-1416

NUT,M16, Cl 10

2шт.

6

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

2шт.

7

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

2шт.

8

432-616

COTTER PIN,3/32" x 1"

2шт.

9

302258A1

ROD

2шт.

10

70-4340T1

COMPRESSION SPRING

2шт.

11

315227A1

HANDLE

2шт.

12

729-1030

CLEVIS PIN,M10 x 30

2шт.

13

733-3220

COTTER PIN,M3.2 x 20

2шт.

14

315228A1

LARGE PLATE

PLATE, LARGE

4шт.

18

A75028

PIN,36.45mm OD x 138mm L

2шт.

19

378704A1

LOCK PIN

2шт.

20

321527A3

PIN ASSY.

1шт.

21

733-6350

COTTER PIN,M6.3 x 50

6,3 x 50 mm

1шт.
