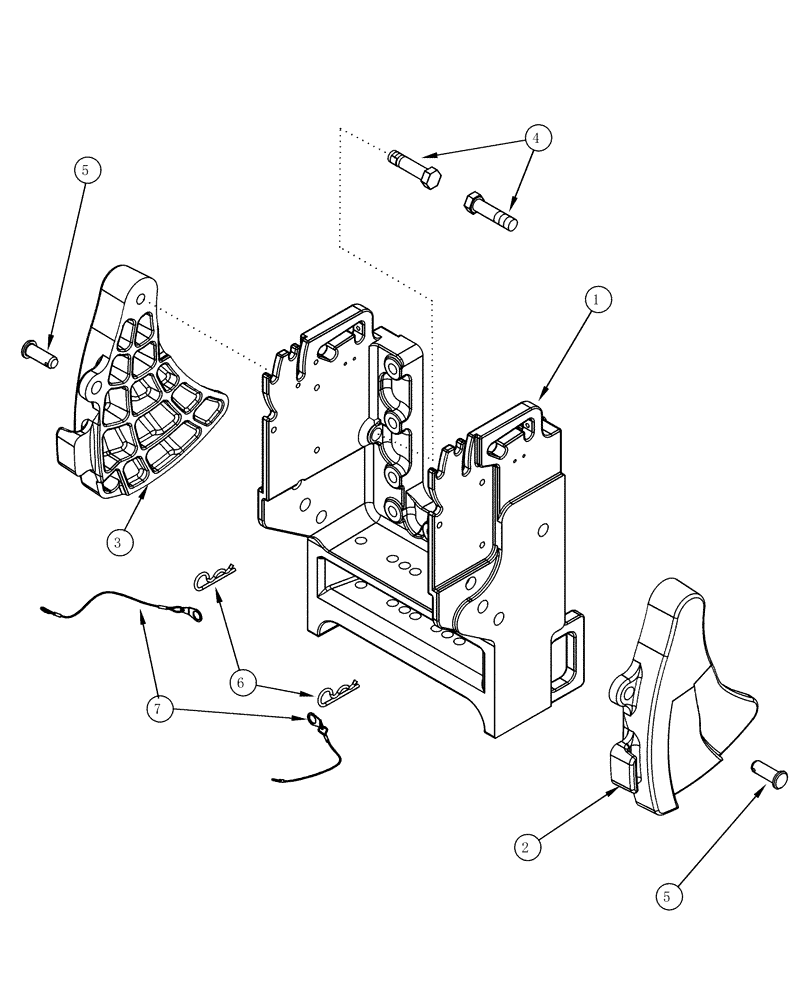

Запчасти Case IH MX200 (09-57) - SWAY LIMITER HITCH (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

Bracket, See Figures 9-45, 9-46, and 9-47

1шт.

2

293792A4

STOP

Right Hand

1шт.

3

293789A4

CAM

Left Hand

1шт.

4

804-20080

BOLT,Hex, M20 x 2.5 x 80mm, Cl 10.9

M20 x 80; 10,9

2шт.

5

439-11236

HEADED PIN,3/4" x 2 1/4"

2шт.

6

1978738C1

HAIR PIN COTTER

3/16"

2шт.

7

336494A1

CHAIN

Europe Only

2шт.
