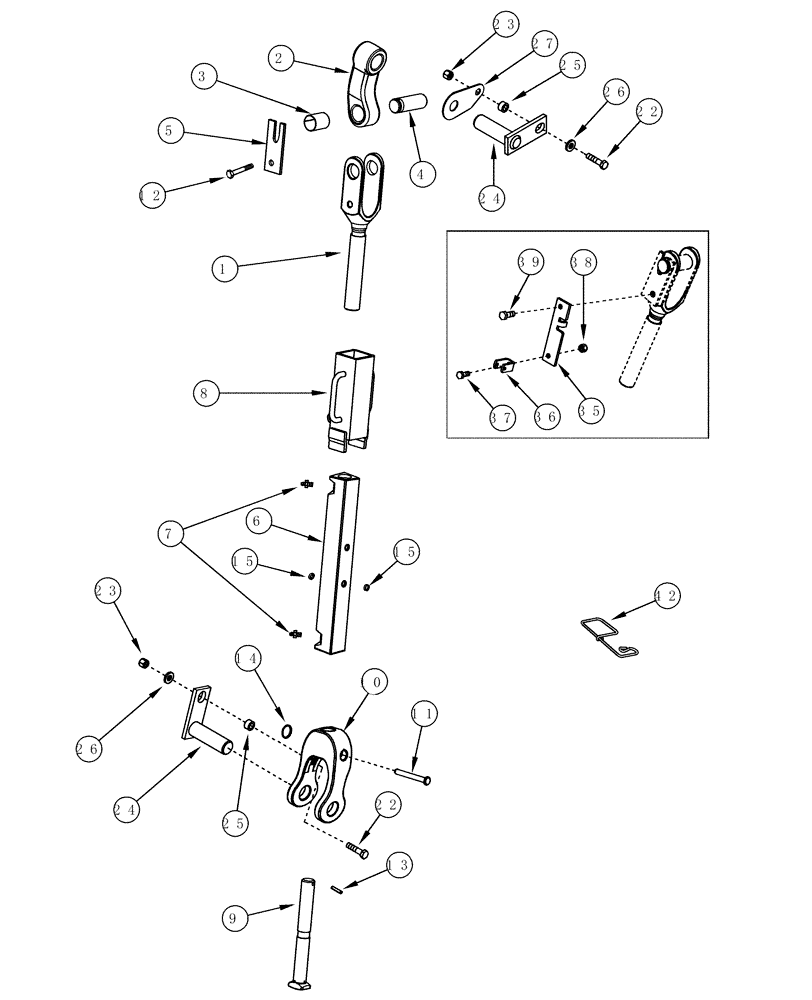

Запчасти Case IH MX200 (09-52) - LIFT LINKS HITCH, WITH STANDARD CLEARANCE HITCH ONLY, BSN JJA0112726 (09) - CHASSIS/ATTACHMENTS

1

251711A1

YOKE,1-1/4" - 7

UNIVERSAL JOINT YOKE "A" 355 mm, Right Hand Threads

2шт.

2

225278A2

JOINT

2шт.

3

237443A1

BUSHING,34.96mm ID x 38.9mm OD x 50mm L

4шт.

4

239292A2

PIN,34.87mm OD x 103mm L

2шт.

5

225049A3

LARGE PLATE

PLATE, LARGE

2шт.

6

238420A3

TURNBUCKLE,1-1/4" - 7

2шт.

7

219-23

LUBE NIPPLE,1/4" - 18 NPTF

4шт.

8

308213A1

COLUMN JACKET

2шт.

9

239058A2

ROD, ADJUSTMENT

ROD, ADJUSTING "A" 130 mm, Left Hand Threads

2шт.

10

232668A4

TRAILER HITCH

2шт.

11

310629A1

HITCH PIN,11.95mm OD x 104mm L

2шт.

12

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

2шт.

13

38-11620

PIN,1/4" x 1 1/4", Slotted

2шт.

14

307431A1

SNAP RING

2шт.

15

1965426C1

PLUG

4шт.

22

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

4шт.

23

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

24

321367A3

PIN ASSY.,34.91mm OD x 133mm L

4шт.

25

321365A1

SPACER,13.5mm ID x 22.23mm OD x 12.5mm L

4шт.

26

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

4шт.

27

255803A1

SHIM

1шт.

35

103679A1

BAR

Europe Only

1шт.

36

103678A1

SUPPORT

Europe Only

1шт.

37

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

38

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

39

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

1шт.

42

362420A1

RETAINER

Europe Only

1шт.
