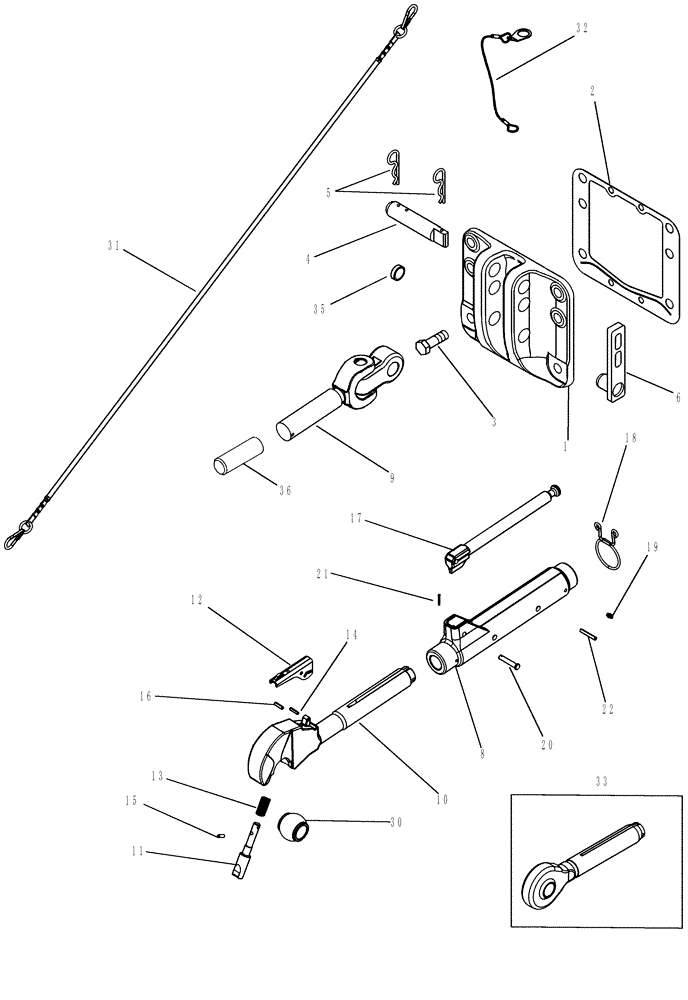

Запчасти Case IH MX200 (09-51) - TOP LINK HITCH, EUROPE ONLY (09) - CHASSIS/ATTACHMENTS

1

377206A1

HITCH BRACKET

1шт.

2

379145A2

GASKET,0.79mm Thk

1шт.

3

628-20060

SCREW,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

6шт.

4

378929A1

PIN,31.65mm OD x 180mm L

1шт.

5

486830R1

COTTER PIN

2шт.

6

378932A1

PIN,31.65mm OD x 46mm L

1шт.

8

1954223C4

ARM,1-3/4" - 5

406 mm, 16 Inchs

1шт.

9

319585A1

CLEVIS

Right Hand Threads

1шт.

10

245301A2

END

Left Hand Threads, Inc. 11 - 16

1шт.

11

118707A1

PIN

1шт.

12

118708A1

LEVER

1шт.

13

118705A1

SPRING

1шт.

14

838-5524

LOCK PIN,M5 x 24, Slotted

5 x 24 mm

1шт.

15

838-5620

LOCK PIN,M6 x 20, Slotted

1шт.

16

838-5624

LOCK PIN,M6 x 24, Slotted

1шт.

17

1331863C2

HANDLE

1шт.

18

315912A1

SPRING

1шт.

19

378716A1

LUBE NIPPLE,Hex, M10 x 1 x 17.5mm L

2шт.

20

427-6200

CLEVIS PIN,3/8" x 2", HDN

1шт.

21

432-610

COTTER PIN,3/32" x 5/8"

1шт.

22

738-5645

LOCK PIN,M6 x 45, Slotted

6 x 45 mm

2шт.

30

359188A2

BALL JOINT

1шт.

31

1348080C1

CABLE,1500mm L

1шт.

32

336494A1

CHAIN

1шт.

33

1282082C2

LIFT LINK END ASSY,1-3/4" - 5, LH Threads

Left Hand Threads, If Equipped

1шт.

35

641-3432

PLUG,M32, Conical

32 mm

3шт.

36

315541A1

SPACER

1шт.

37

284335A3

UPPER LINK

Ball End, Inc. 8, 9, 17 - 22, 33, 36

1шт.

38

284336A4

UPPER LINK

Claw End, Inc. 8 - 10, 17 - 22

1шт.
