Запчасти Case IH MX200 (09-48) - HITCH SUPPORTS ROCKSHAFT (09) - CHASSIS/ATTACHMENTS

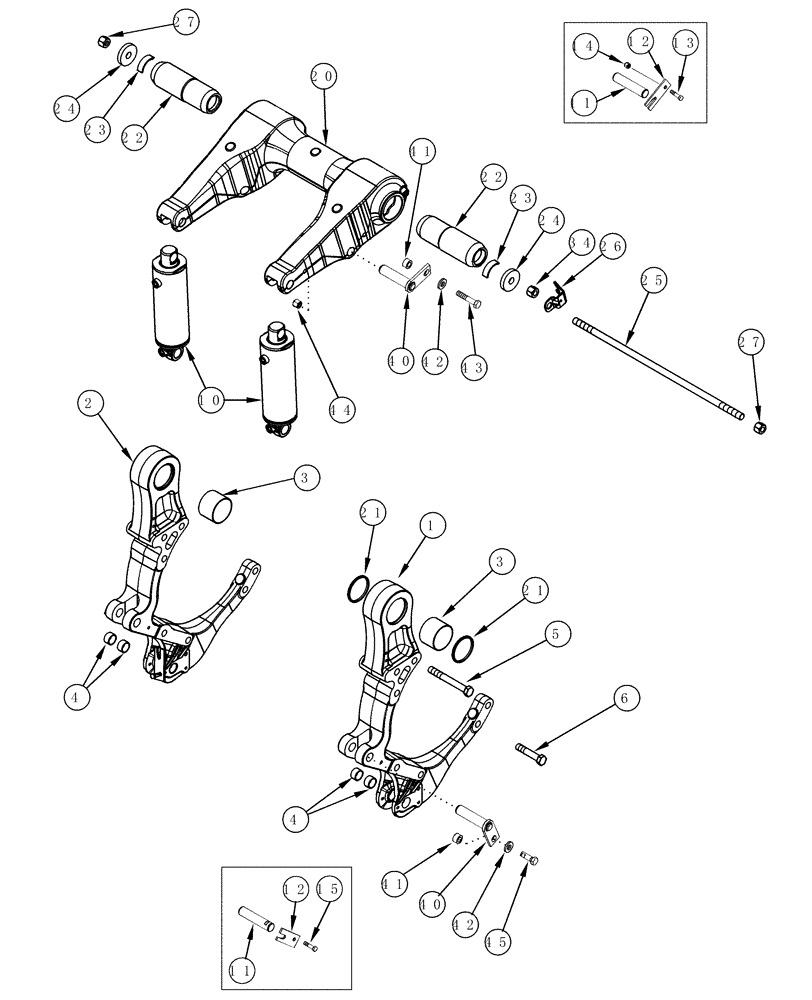

Схема запчастей Case IH MX200 - (09-48) - HITCH SUPPORTS ROCKSHAFT (09) - CHASSIS/ATTACHMENTS
41
11
40
24
25
21
13
27
1
42
45
14
12
15
26
5
22
34
22
23
41
42
44
4
6
11
43
23
4
40
24
27
12
3
21
2
3
20
10

Артикул

Название

Примечание

Количество

1

303570A2

HITCH BRACKET

MX 180(1), Right Hand, Inc. 3,4

1шт.

1

302887A2

HITCH BRACKET

MX200(1), MX220(1), MX240(1), MX270(1), Right Hand, Inc. 3,4

1шт.

2

303571A2

HITCH BRACKET

MX180(1), Left Hand, Inc. 3,4

1шт.

2

302887A2

HITCH BRACKET

MX200(1), MX220(1), MX240(1), MX270(1), Left Hand, Inc. 3,4

1шт.

3

222355A1

BUSHING,100.25mm ID x 106.11mm OD x 75mm L

1шт.

4

1960223C1

BUSHING,37.15mm ID x 43.09mm OD x 24mm L

2шт.

5

828-24200

BOLT,Hex, M24 x 3 x 200mm, Cl 10.9

10шт.

6

828-24120

BOLT,Hex, M24 x 3 x 120mm, Cl 10.9

M24 x 120; 10.9

4шт.

10

305002A2

CYLINDER,Double Acting, 63.5mm Rod, 260.4mm Stroke

89 ID x 260 mm strk, Part Number Stamped On Cylinder, See Figure 8-20

1шт.

10

278277A3

CYLINDER ASSY.

95 ID x 260 mm strk, Part Number Stamped On Cylinder, See Figure 8-21

1шт.

10

87542725R

REMAN-HYD CYLINDER

MX180, MX200, MX220, MX240, MX270, All CASE IH MAGNUM TRACTOR (P.I.N. JJA0105000 & AFTER) (1/99-), Reman for New PN 278277A3

1шт.

10

87542725C

CORE-HYD CYLINDER

Return Number

1шт.

10

278419A3

CYLINDER

105 ID x 260 mm strk, Part Number Stamped On Cylinder, See Figure 8-22

1шт.

10

87542726R

REMAN-HYD CYLINDER

MX180, MX200, MX220, MX240, MX270, All CASE IH MAGNUM TRACTOR (P.I.N. JJA0105000 & AFTER), 105 ID x 260 mm strk (1/99-), Reman for New PN 278419A3

1шт.

10

87542726C

CORE-HYD CYLINDER

Return Number

1шт.

11

224446A2

PIN

4шт.

12

225049A3

LARGE PLATE

PLATE, LARGE

4шт.

13

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

2шт.

14

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

15

608-12025

BOLT,Hex, M12 x 25mm, Cl 10.9

M12 x 25; 10,9

2шт.

20

293767A2

HITCH BRACKET

Part Number Stamped On Part

1шт.

20

292298A2

HITCH BRACKET

Part Number Stamped On Part

1шт.

21

222354A1

SEAL

4шт.

22

251386A1

PIN,99.98mm OD x 299mm L

2шт.

23

220598A3

SNAP RING

6шт.

24

220599A2

WASHER

2шт.

25

220600A2

ROD

1шт.

26

241889A3

BRACKET

1шт.

27

832-10424

NUT,M24 x 3, Cl 8

2шт.

34

829-1424

NUT,M24, Cl 10

1шт.

40

391415A1

PIN,34.91mm OD x 154mm L

4шт.

41

321365A1

SPACER,13.5mm ID x 22.23mm OD x 12.5mm L

4шт.

42

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

4шт.

43

814-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

2шт.

44

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

45

806-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9

M12 x 35; 10,9

2шт.

Выбрано товаров: 36
