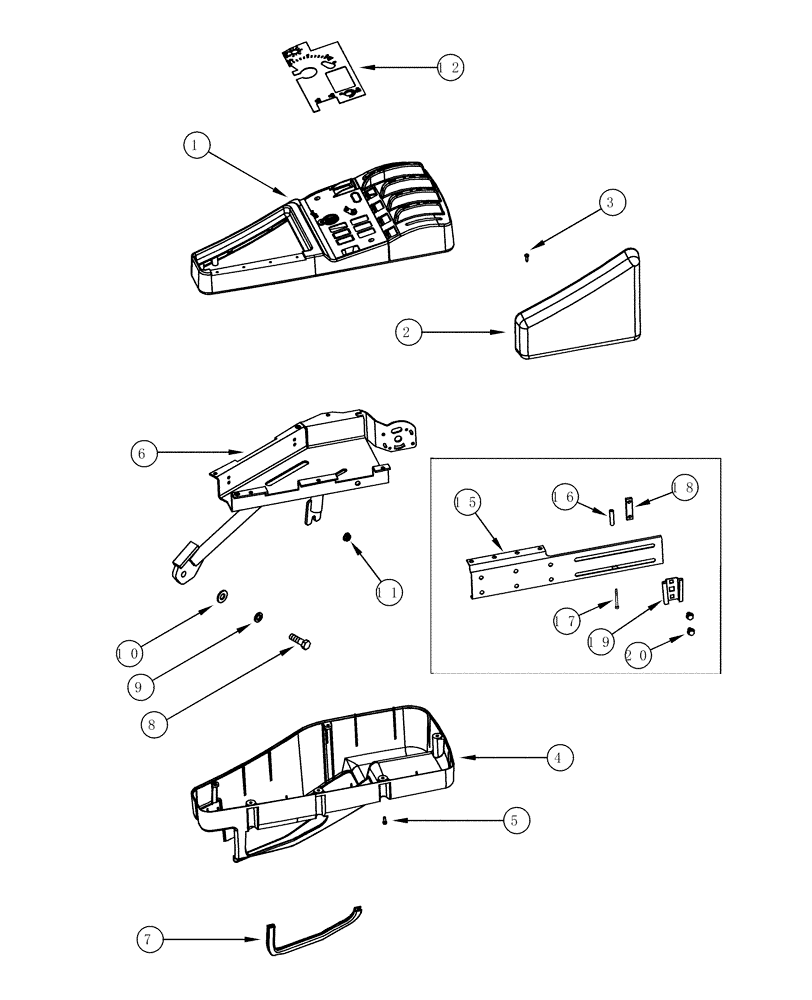

Запчасти Case IH MX200 (09-35) - CONSOLE, RIGHT HAND, STANDARD CAB (09) - CHASSIS/ATTACHMENTS

1

358811A2

HOUSING

Upper

1шт.

2

277204A2

CUSHION

1шт.

3

760-14316

SELF-TAP SCREW,Pan Hd, M4.2 x 16

4шт.

4

358814A1

HOUSING

Lower

1шт.

5

864-4012

HEX SOC SCREW,M4 x 12mm, Cl 8.8

6шт.

6

319913A2

SUPPORT

1шт.

7

329057A1

LINING

1шт.

8

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

1шт.

9

892-11012

LOCK WASHER,M12

1шт.

10

895-15012

WASHER,M12 x 28 x 2.5

13,5 x 28 x 2,5 mm

1шт.

11

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

12

275278A2

DECAL

Without Creep Speed, Without Slip Limit Control

1шт.

12

235925A3

DECAL

With Creep Speed, Without Slip Limit Control

1шт.

12

302990A2

DECAL

Without Creep Speed, With Slip Limit Control

1шт.

12

302991A2

DECAL

With Creep Speed, With Slip Limit Control

1шт.

371336A1

KIT

Implement Control Bracket, Inc. 15 - 20

1шт.

15

377950A1

BRACKET

1шт.

16

371731A1

SPACER

1шт.

17

864-4060

HEX SOC SCREW,M4 x 60mm, Cl 8.8

M4 X 60; 8.8

1шт.

18

368761A1

PLATE

1шт.

19

A59457

BRACKET

1шт.

20

844-8012

BOLT,M8 x 1.25 x 20.1mm, Cl 8.8

2шт.
