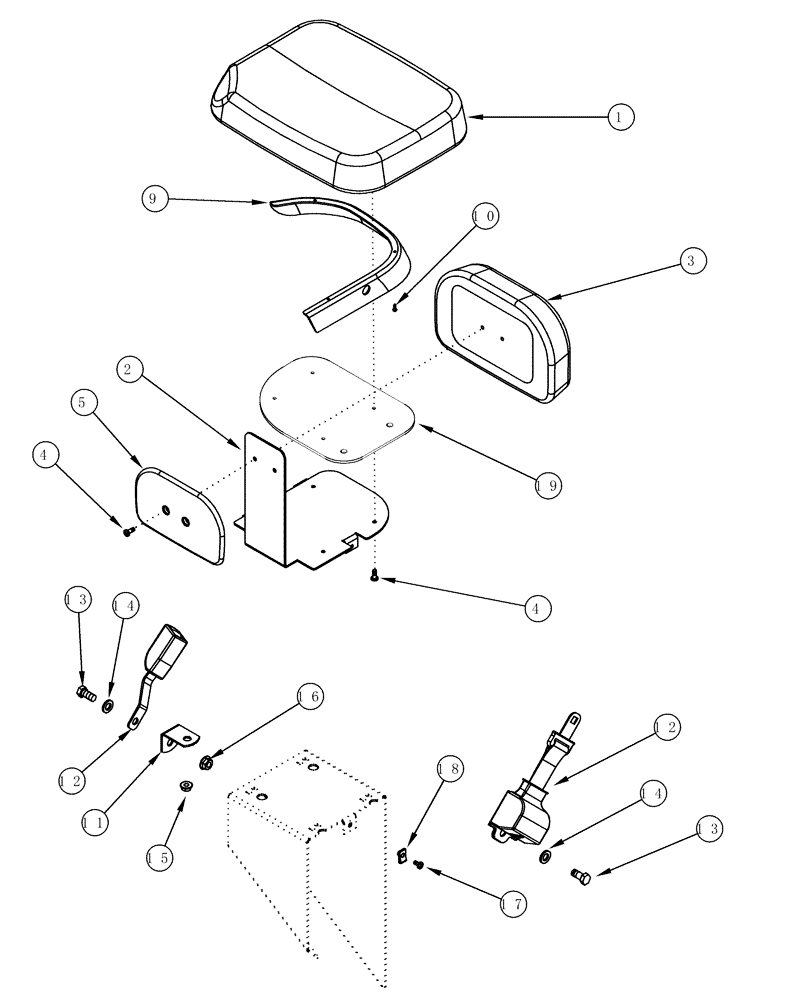

Запчасти Case IH MX200 (09-34) - SEAT OPERATOR TRAINING (09) - CHASSIS/ATTACHMENTS

1

359027A1

CUSHION, SEAT

Standard And Deluxe Cab

1шт.

1

359030A1

CUSHION, SEAT

Luxury Cab

1шт.

2

296316A3

SUPPORT

1шт.

3

359028A1

BACKREST COVER

Standard And Deluxe Cab

1шт.

3

359031A1

BACKREST COVER

Luxury Cab

1шт.

4

840-2616

SCREW,Pan, M6 x 16mm, Cl 4.8

6шт.

5

359029A1

COVER

1шт.

9

359039A1

BEZEL

1шт.

10

760-14113

SELF-TAP SCREW,Pan Hd, M3.5 x 13

3шт.

11

309099A1

BRACKET

1шт.

12

224808A1

SAFETY BELT ,48mm W x 1219mm L

N.A. Only

1шт.

13

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

2шт.

14

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

15

825-51410

FLANGE NUT,M10, Flg Ser

1шт.

16

825-51412

FLANGE NUT,M12, Flg Ser

1шт.

17

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

1шт.

18

833-40306

SPRING NUT,M6, U

1шт.

19

381940A1

PANEL

1шт.
