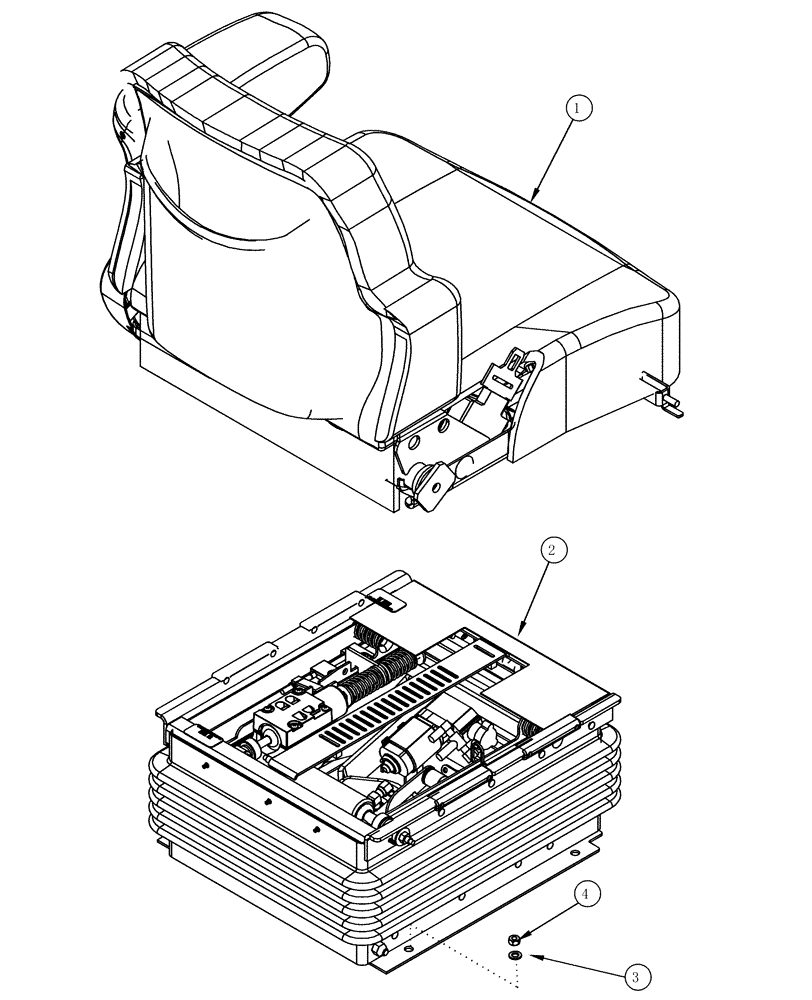

Запчасти Case IH MX200 (09-29) - SEAT ASSEMBLY (09) - CHASSIS/ATTACHMENTS

358202A2

SEAT ASSY.

Standard, Deluxe, N.A. Only, Inc. 1, 2, Serial Range: -JJA0108800

1шт.

397519A1

SEAT ASSY.

Deluxe N.A. Only, Inc. 1, 2, Start Serial: JJA0108800

1шт.

358204A2

SEAT ASSY.

Standard, Deluxe, Europe Only, Inc.1, 2, Serial Range: -JJA0108800

1шт.

397520A1

SEAT ASSY.

Deluxe Europe Only, Inc. 1, 2, Start Serial: JJA0108800

1шт.

358203A2

SEAT ASSY.

Luxury, N.A. Only, Inc. 1, 2

1шт.

358205A2

SEAT ASSY.

Luxury, Europe Only, Inc. 1, 2

1шт.

1

360319A2

CUSHION ASSY.

Standard, Deluxe, Cloth, without Heat, N.A. Only, See Figure 9-31, Serial Range: -JJA0108800

1шт.

1

397525A1

CUSHION ASSY.

Deluxe, Cloth, Heated, N.A. Only, See Figure 9-31, Start Serial: JJA0108800

1шт.

1

360324A2

SEAT ASSY.

Standard, Deluxe, Cloth, Without Heat, Europe Only, See Figure 9-31, Serial Range: -JJA0108800

1шт.

1

397526A1

SEAT ASSY.

Deluxe, Cloth, With Heat, Europe Only, See Figure 9-31, Start Serial: JJA0108800

1шт.

1

360321A2

CUSHION ASSY.

Luxury, N.A. Only, See Figure 9-31

1шт.

1

360325A2

SEAT ASSY.

Luxury, Europe Only, See Figure 9-31

1шт.

2

374353A2

PACKAGE,SERVICE

See Figure 9-33

1шт.

4

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

4шт.
