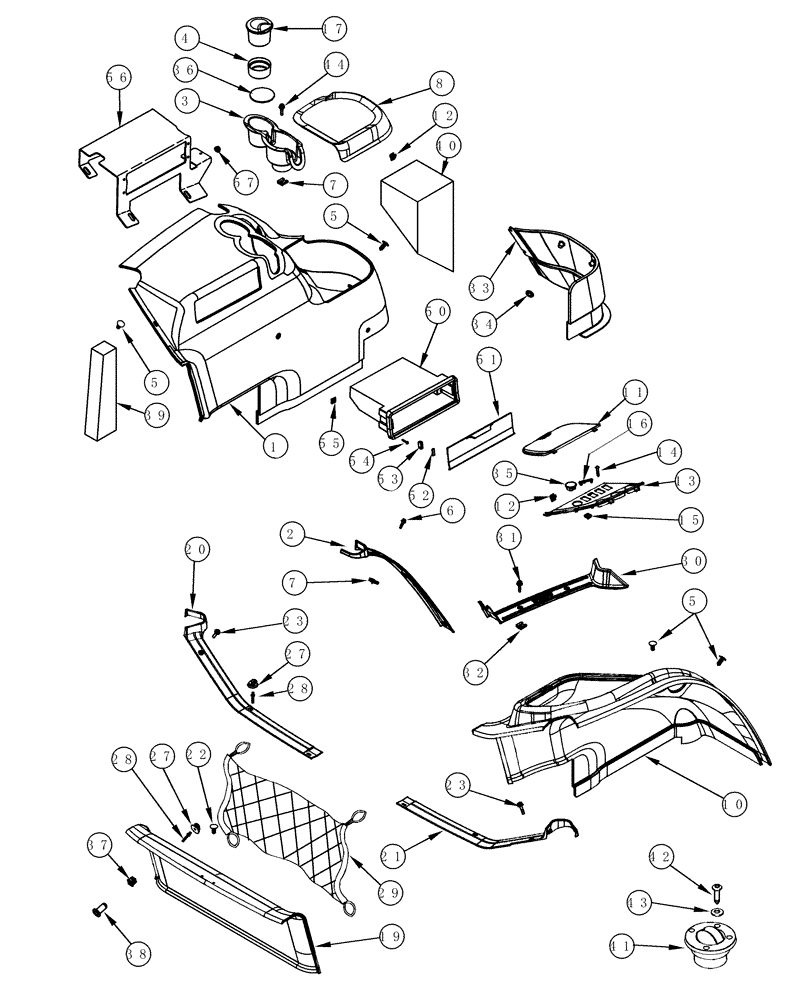

Запчасти Case IH MX200 (09-25) - CAB TRIM, FENDERS (09) - CHASSIS/ATTACHMENTS

1

358147A2

PADDING

Left Hand, Without, CD Player, Inc. 41

1шт.

1

355105A2

PADDING

Left Hand, With, CD Player, Inc. 41, Serial Range: -JJA0107230

1шт.

1

398227A1

PADDING

Left Hand, With, CD Player, Inc. 41, Serial Range: JJA0107230-JJA0108800

1шт.

1

355105A2

PADDING

Left Hand, With, CD Player, Inc. 41, Start Serial: JJA0108800

1шт.

2

358235A1

TRIM PANEL

1шт.

3

358805A1

HOLDER

1шт.

4

301901A1

INSERT

1шт.

5

93199C1

FASTENER

16шт.

6

360362A1

CAPTIVE WASHER SCREW

No. 10 x 1

3шт.

7

131-832

SPRING NUT,U, #10-16, Panel type

4шт.

8

358806A1

COVER

1шт.

10

363618A3

PADDING

Right Hand, Standard And Deluxe Cab, Inc. 41

1шт.

10

363619A2

PADDING

Right Hand, Luxury Cab, Serial Range: -JJA0107230

1шт.

10

398228A1

PADDING

Right Hand, Luxury Cab, Serial Range: JJA0107230-JJA0108800

1шт.

10

363618A3

PADDING

Right Hand, Luxury Cab, Start Serial: JJA0108800

1шт.

11

277773A3

COVER

Fuse Access

1шт.

12

278316A2

CLIP

6шт.

13

314749A1

PANEL

Without Auto Temp Control

1шт.

13

252580A4

PANEL

With Auto Temp Control

1шт.

14

761-17325

SELF-TAP SCREW,Pan Hd, M4.2 x 25

2шт.

15

177269A1

SPRING NUT,M4.2

2шт.

16

302118A1

COVER

Without Auto Temp Control

1шт.

17

302456A1

ASH TRAY

1шт.

19

358681A1

PADDING

Rear, Standard And Deluxe Cab

1шт.

19

360117A2

PADDING

Rear, Luxury Cab, Serial Range: -JJA0107230

1шт.

19

398230A1

PADDING

Rear, Luxury Cab JJA0107230, Serial Range: -JJA0108800

1шт.

19

360117A2

PADDING

Rear, Luxury Cab, Start Serial: JJA0108800

1шт.

20

357169A2

TRIM PANEL

Left Hand

1шт.

21

357168A2

TRIM PANEL

Right Hand

1шт.

22

93199C1

FASTENER

2шт.

23

360362A1

CAPTIVE WASHER SCREW

No. 10 x 1

2шт.

27

359037A1

HOOK

4шт.

28

322413A2

STUD

4шт.

29

359036A1

NET,Cargo

1шт.

30

358807A1

SILL

1шт.

31

360362A1

CAPTIVE WASHER SCREW

No. 10 x 1

2шт.

32

96900C1

SPRING NUT,U, #10-16, Panel type

2шт.

33

358682A1

GUARD

1шт.

34

333773A1

PUSH-ON NUT

3шт.

35

280628A1

PLUG

Without Power Mirrors

1шт.

36

318996A1

PADDING

1шт.

37

322072A2

FASTENER

2шт.

38

322073A1

NUT

2шт.

39

336383A1

PAD

1шт.

40

336385A1

PAD

1шт.

41

360365A1

DIFFUSER

2шт.

42

151-535

RIVET,Pop, 1/8" x .462"

8шт.

43

895-11003

WASHER,3.2mm ID x 7mm OD x 0.5mm Thk

(3.2 x 7 x 0.5 mm)

8шт.

44

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

No. 10 x 3/4

1шт.

50

355101A2

BOX

CD Player, Luxury Cab

1шт.

51

355102A2

DOOR

1шт.

52

364279A1

PLATE

2шт.

53

364281A1

CATCH

2шт.

54

260-16516

SELF-TAP SCREW,Cross Pan Hd, #10 x 1"

4шт.

55

96900C1

SPRING NUT,U, #10-16, Panel type

4шт.

56

368520A2

BRACKET

1шт.

57

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

4шт.
