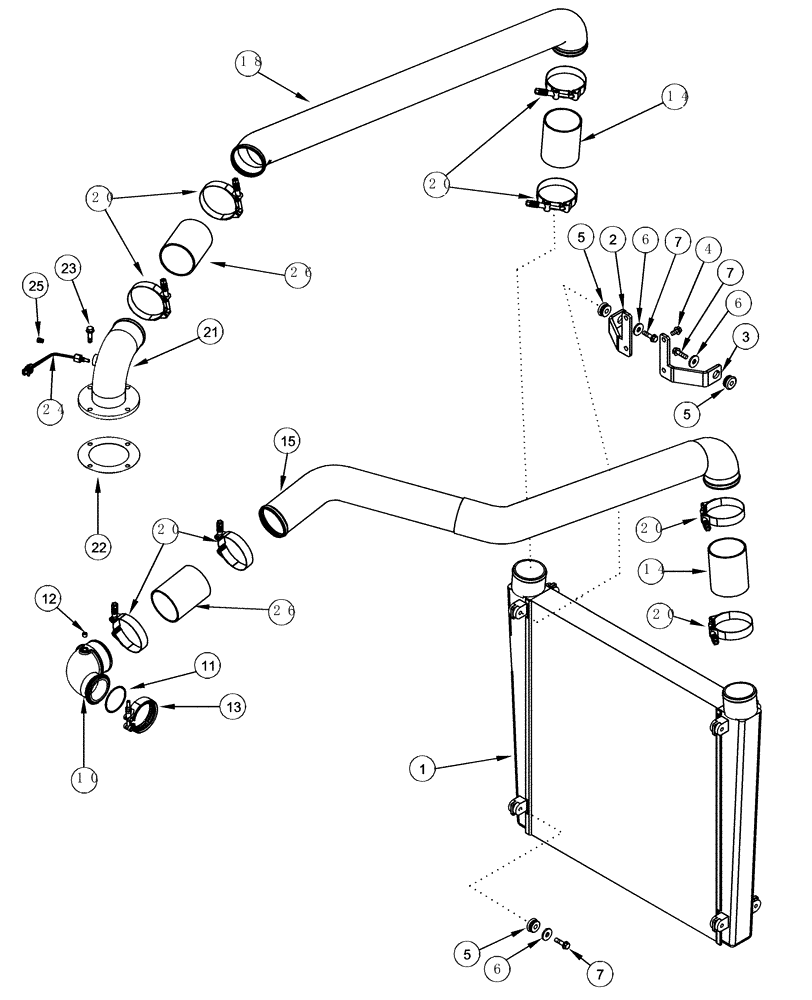

Запчасти Case IH MX200 (02-06) - AFTERCOOLER, MX200, MX220, MX240, MX270 (02) - ENGINE

1

194375A1

AFTERCOOLER

1шт.

2

255646A1

SUPPORT

Left Hand

1шт.

3

255645A1

SUPPORT

Right Hand

1шт.

4

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

4шт.

5

60-6650T1

RUBBER BUSHING

4шт.

6

495-81120

WASHER,.344" x 1 1/4" x .120"

11/32 x 1-1/4 x 7/64

4шт.

7

614-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

4шт.

10

J918685

PIPE

1шт.

11

J883284

O-RING,0.07" Thk x 2.364" ID, -36

1шт.

12

J008465

PLUG

1шт.

13

J069053

CLAMP,66.54mm ID

1шт.

14

362341A1

HOSE,76.20 mm ID x 100.00 mm, SAE J20

2шт.

15

361991A2

PIPE

1шт.

18

361992A1

PIPE

1шт.

20

364751A1

CLAMP,78mm - 86mm

8шт.

21

220851A1

ELBOW

1шт.

22

J917892

GASKET,0.79mm Thk

1шт.

23

844-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

4шт.

24

194346A1

SENSOR

Air to Air Temperature, MX200(1), MX220(1)

1шт.

25

86643151

PLUG,Hex Hd, 1/8"-27 NPTF

MX240(1), MX270(1)

1шт.

26

377592A1

HOSE,76.20 mm ID x 130.00 mm, SAE 20R1, SAE J20

2шт.
