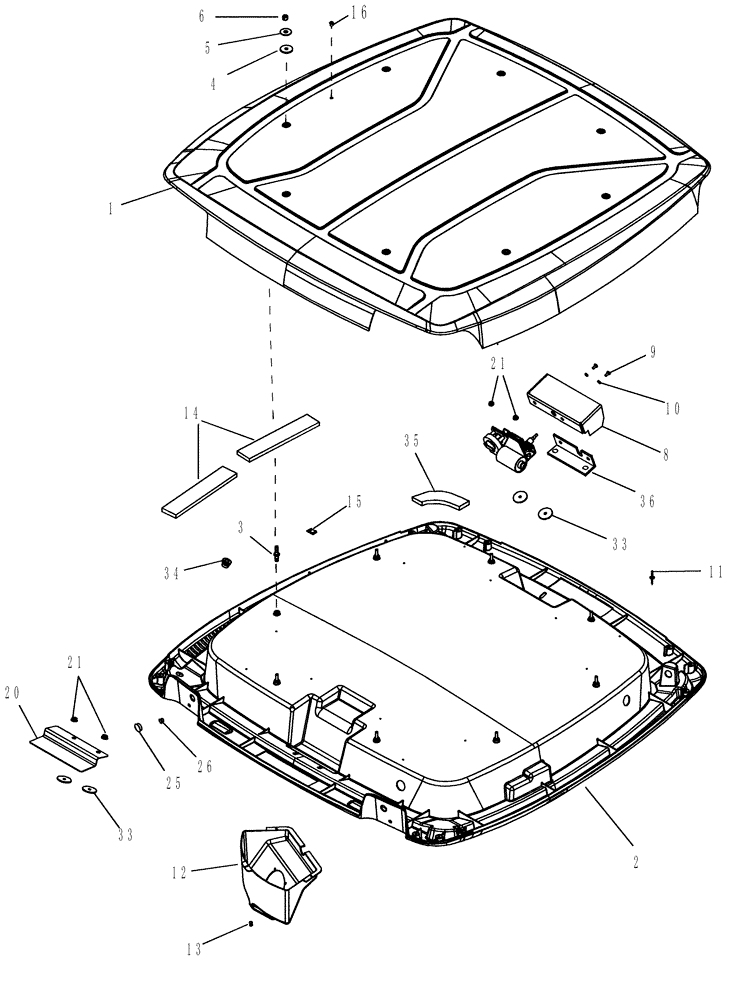

Запчасти Case IH MX200 (09-13) - CAB ROOF (09) - CHASSIS/ATTACHMENTS

1

250928A4

ROOF

Upper, Serial Range: -JJA0115434

1шт.

1

433973A3

ROOF

Upper, Start Serial: JJA0115434

1шт.

2

250929A6

ROOF

Lower, Inc. 3, Serial Range: -JJA0115434

1шт.

2

437785A3

ROOF

Lower, Inc. 3, Start Serial: JJA0115434

1шт.

3

237275A1

STUD

8шт.

4

221429A2

SPACER

8шт.

5

495-81140

WASHER,13/32" x 1 1/4" x .060"

8шт.

6

832-10408

NUT,M8 x 1.25, Cl 8.8

8шт.

8

379981A1

COVER

Wiper Motor

1шт.

9

414-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

2шт.

10

892-11006

LOCK WASHER,M6

2шт.

11

1330955C2

RIVET

3/16, If Used

10шт.

12

294498A2

HOUSING

Speaker Cover

4шт.

13

151-535

RIVET,Pop, 1/8" x .462"

, Serial Range: -JJA0115434

12шт.

13

758-5

SELF-TAP SCREW,Hex Hd, M5.5 x 15

M5,5 x 15 (Not Shown), Start Serial: JJA0115434

12шт.

13

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

Not Shown, Start Serial: JJA0115434

12шт.

14

297459A1

FILTER

2шт.

15

297530A1

CLIP,ELECTRICAL

4шт.

20

255083A1

SUPPORT

Without Rear Wiper

1шт.

21

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

2шт.

22

353-401

PLUG,Dome, .312" hole, Nylon

2шт.

25

353-411

PLUG,Dome, 1.000" hole, Nylon

5шт.

26

353-425

PLUG,0.437 Hole OD

7/16 in dia

2шт.

33

348228A1

GASKET,8mm ID x 50mm OD x 3mm Thk

4шт.

34

182220A1

GROMMET

1шт.

35

365219A1

FOAM INSULATION

1шт.

36

381083A1

BRACKET

1шт.
