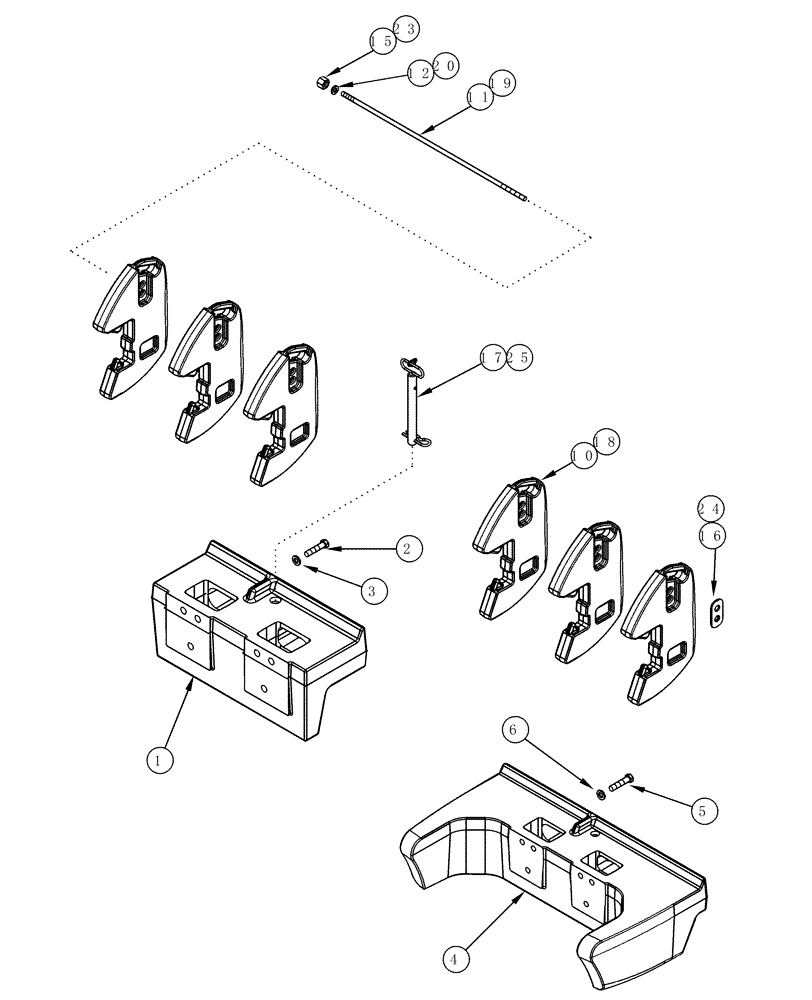

Запчасти Case IH MX200 (09-03) - FRONT WEIGHTS, EUROPE ONLY (09) - CHASSIS/ATTACHMENTS

308738A

KIT

Order From Machinery Price List, Inc. 1 - 3

1шт.

1

257326A2

SUPPORT

Small

1шт.

2

258504A1

BOLT

M20 x 90; 10,9

6шт.

3

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

6шт.

308735A

KIT

Order From Machinery Price List, Inc. 4 - 6

1шт.

4

238518A2

SUPPORT

Large

1шт.

5

258504A1

BOLT

M20 x 90; 10,9

6шт.

6

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

6шт.

308740A

KIT

454Kg (1000 lb), Order From Machinery Price List, Inc. 10 - 16

1шт.

10

405846A3

WEIGHT

45Kg (100 lb)

6шт.

11

324475A1

TRUSS ROD

600mm

1шт.

12

896-16016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

17,5 x 34 x 5 mm

1шт.

15

829-1416

NUT,M16, Cl 10

1шт.

16

229483A1

RETAINER

1шт.

17

297750A2

PIN,32mm OD x 975.25mm L

1шт.

308741A

KIT

815Kg (1800 lb), Order From Machinery Price List, Inc. 18 - 24

1шт.

18

224383A2

WEIGHT

45Kg (100 lb), Order From Machinery Price List

14шт.

19

324474A1

TRUSS ROD

1070mm

1шт.

20

896-16016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

17,5 x 34 x 5 mm

1шт.

23

829-1416

NUT,M16, Cl 10

1шт.

24

229483A1

RETAINER

1шт.

25

297750A2

PIN,32mm OD x 975.25mm L

1шт.
