Запчасти Case IH MX200 (02-05) - AIR INDUCTION SYSTEM (02) - ENGINE

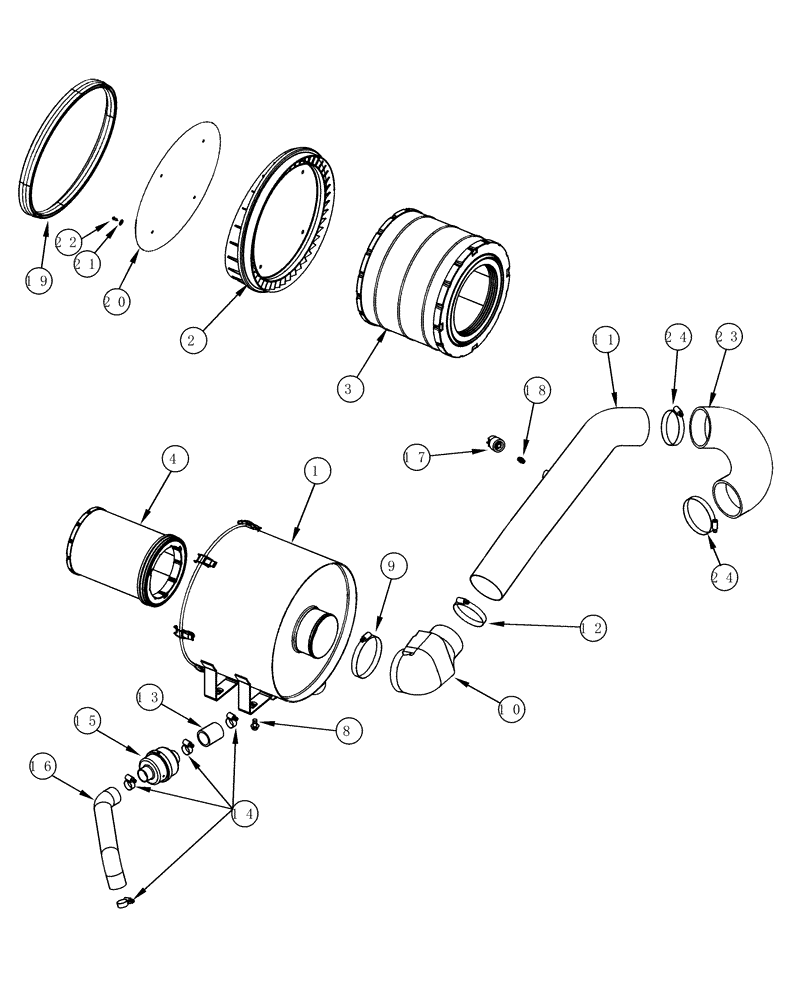

Схема запчастей Case IH MX200 - (02-05) - AIR INDUCTION SYSTEM (02) - ENGINE
14
15
22
24
8
1
24
23
18
13
4
10
9
20
21
17
12
19
2
11
3
16

Артикул

Название

Примечание

Количество

291903A3

AIR CLEANER

Consists Of 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

294291A1

COVER

1шт.

3

294292A1

AIR CLEANER

1шт.

4

294293A1

AIR FILTER

1шт.

8

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

4шт.

9

214-3296

HOSE CLAMP,5-1/4" - 6-1/8", HD Worm, W/ Liner

1шт.

10

352790A1

ELBOW,101.6mm ID x 242mm L, EPDM

1шт.

11

352792A1

AIR INTAKE TUBE,315 mm Length

1шт.

12

214-3280

HOSE CLAMP,4-1/4" - 5-1/8", HD Worm, W/ Liner

1шт.

13

277655A2

HOSE

1шт.

14

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

4шт.

15

307123A1

VALVE

1шт.

16

321131A1

HOSE

1шт.

17

1983640C1

RESTRICTION SWITCH

Air Filter Restriction

1шт.

18

217-1079

HYD CONNECTOR,1/8" - 27 NPTF

1/8 PT

1шт.

19

365829A1

SEAL,1276mm L

1шт.

20

282109A1

BAFFLE

1шт.

21

895-25005

WASHER,M5 x 15 x 1.6

4шт.

22

760-14313

SELF-TAP SCREW,Phillips Drive, Pan HD, M4.2 x 1.4 x 13mm

M4,2 x 13

4шт.

23

297362A1

INTAKE AIR HOSE,101.60 mm ID x 209.60 mm, SAE J20

Without Air Compressor, See Page(s) 7-31

1шт.

24

214-3280

HOSE CLAMP,4-1/4" - 5-1/8", HD Worm, W/ Liner

2шт.

Выбрано товаров: 22
