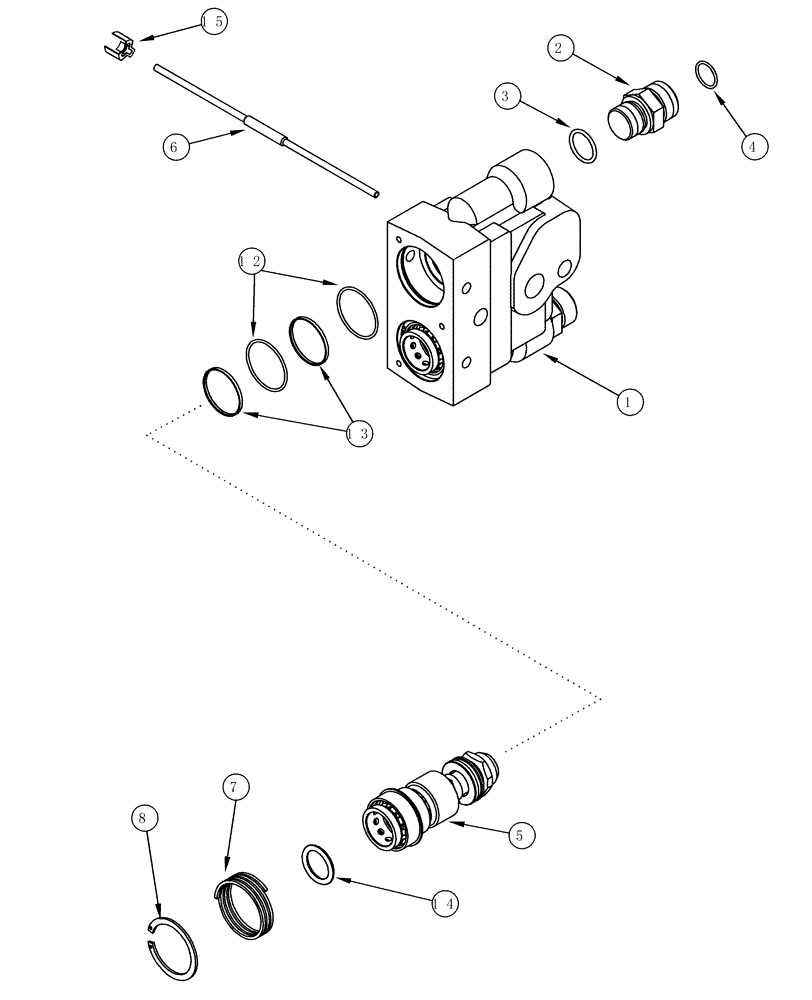

Запчасти Case IH MX200 (08-27) - REMOTE HYDRAULIC COUPLINGS (08) - HYDRAULICS

275182A2

HYDRAULIC VALVE

Consists Of 1 - 14

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 3, 4

2шт.

3

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

4

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

5

321623A1

CARTRIDGE

2шт.

6

93329C2

SPRING

1шт.

7

93330C1

VALVE SPRING

2шт.

8

100-28162

SNAP RING,1.625", Int, #162

2шт.

345193A1

SEAL KIT

Inc. 12 - 14

1шт.

12

238-5027

O-RING,0.07" Thk x 1.301" ID, -27, Cl 5, 75 Duro

4шт.

13

93332C1

SEAL ASSY.

4шт.

14

86013815

O-RING,0.139" Thk x 0.796" ID, -211, 88 Duro

O-Ring

2шт.

15

361880A1

RETAINER

1шт.
