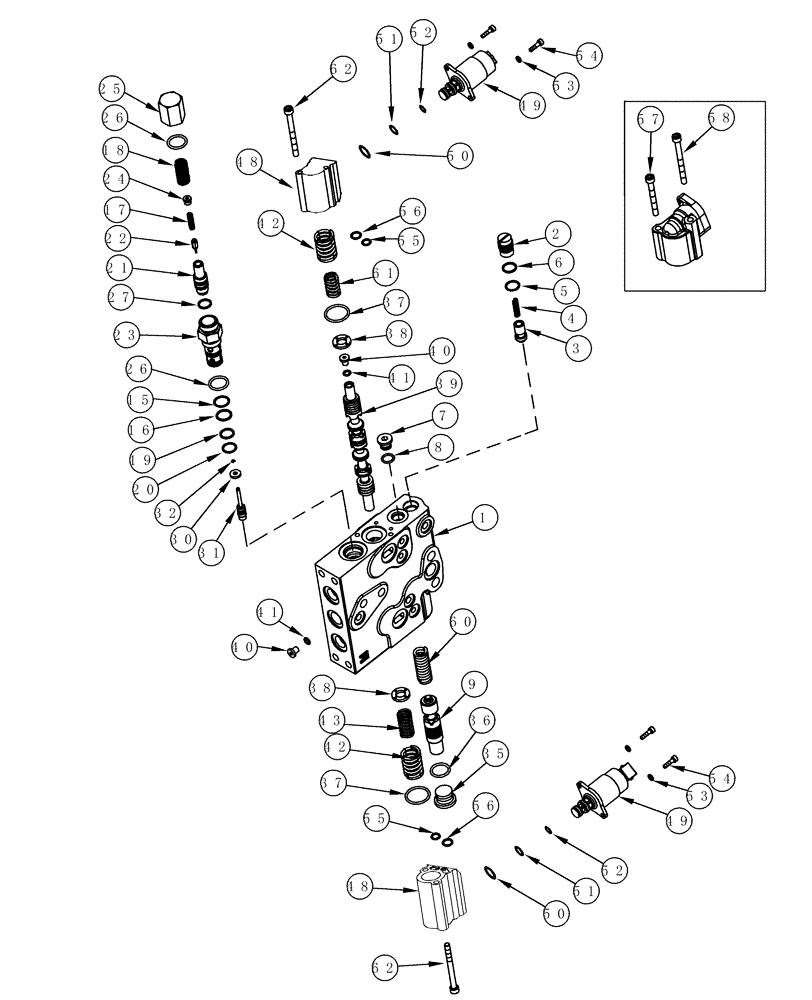

Запчасти Case IH MX200 (08-25) - REMOTE HYDRAULIC CONTROL VALVE (08) - HYDRAULICS

393975A1

VALVE

Left Hand Side of Tractor, Inc. 1 - 61, (Valve Casting Marked R)

1шт.

367422A1

VALVE

Center, Inc. 1 - 61, (Valve Casting Marked M)

1шт.

393974A1

VALVE

Right Hand Side of Tractor, Inc. 1 - 61, (Valve Casting Marked L)

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

1542563C1

KIT

Consists Of 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

Plug

1шт.

3

1543329C1

VALVE POPPET,7mm ID x 13.8mm OD x 27mm L

1шт.

4

1994581C1

SPRING,6.1mm OD x 31.1mm L

1шт.

5

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

6

G108723

RING,14.34mm ID x 16.94mm OD x 1.32mm Thk

1шт.

7

9625178

PLUG,9/16" - 18 ORB

Incl. 8

1шт.

9

292321A2

SPOOL

1шт.

278550A1

CHECK VALVE

Consists Of 15 - 27

1шт.

278550A2R

REMAN-HYD VALVE

MX240,MX180,MX200,MX220,MX270 ALL P.I.N. JJA0105000 & AFTER (1/99-), Reman For New P/N 278550A1

1шт.

278550A2C

CORE-VALVE HYD

Return Number

1шт.

15

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

16

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

1шт.

17

NSS

NOT SOLD SEPARAT

Spring

1шт.

18

NSS

NOT SOLD SEPARAT

Spring

1шт.

19

G108723

RING,14.34mm ID x 16.94mm OD x 1.32mm Thk

1шт.

20

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

21

NSS

NOT SOLD SEPARAT

Poppet, Valve

1шт.

22

NSS

NOT SOLD SEPARAT

Poppet, Valve

1шт.

23

NSS

NOT SOLD SEPARAT

Body

1шт.

24

NSS

NOT SOLD SEPARAT

Plug

1шт.

25

NSS

NOT SOLD SEPARAT

Cap

1шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

27

G108727

BACK-UP RING,13.27mm ID x 15.87mm OD x 1.32mm Thk

1шт.

1957907C1

PISTON ASSY

Consists Of 30 - 32

1шт.

30

1957861C1

WASHER

1шт.

31

1957862C1

PISTON

1шт.

32

1957859C1

SNAP RING

1шт.

35

86625138

PLUG,7/18" - 14

Includes Ref. 36

1шт.

36

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

37

238-5120

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

2шт.

38

280927A1

WASHER

2шт.

394030A1

SPOOL

Inc. 39 - 41

1шт.

39

NSS

NOT SOLD SEPARAT

Spool

1шт.

40

86632547

PLUG,Hex, 5/16"-24 ORB

Includes 41

1шт.

41

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

1шт.

42

301969A2

SPRING

2шт.

43

301970A1

SPRING

1шт.

367421A2

SOLENOID VALVE

Inc. 48 - 58

2шт.

48

NSS

NOT SOLD SEPARAT

Body

1шт.

49

278506A1

SOLENOID VALVE

Inc. 50 - 52

1шт.

372228A1

SEAL

Inc. 50 - 52

1шт.

50

319721A1

O-RING,2.4mm Thk x 15.3mm ID

15,3 ID x 2,4

1шт.

51

319722A1

O-RING,2.4mm Thk x 10.3mm ID

10,3 ID x 2,4

1шт.

52

319723A1

O-RING,2.4mm Thk x 8.3mm ID

8,3 ID x 2,4

1шт.

53

892-11004

LOCK WASHER,M4

2шт.

54

864-4016

HEX SOC SCREW,M4 x 16mm, Cl 8.8

2шт.

55

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

56

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

1шт.

57

864-6055

HEX SOC SCREW,M6 x 55mm, Cl 8.8

M6 x 55; 8.8

1шт.

58

864-6065

HEX SOC SCREW,M6 x 65mm, Cl 8.8

1шт.

60

301973A1

SPRING

1шт.

61

321689A1

SPRING

1шт.

62

864-6075

HEX SOC SCREW,M6 x 75mm, Cl 8.8

2шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
