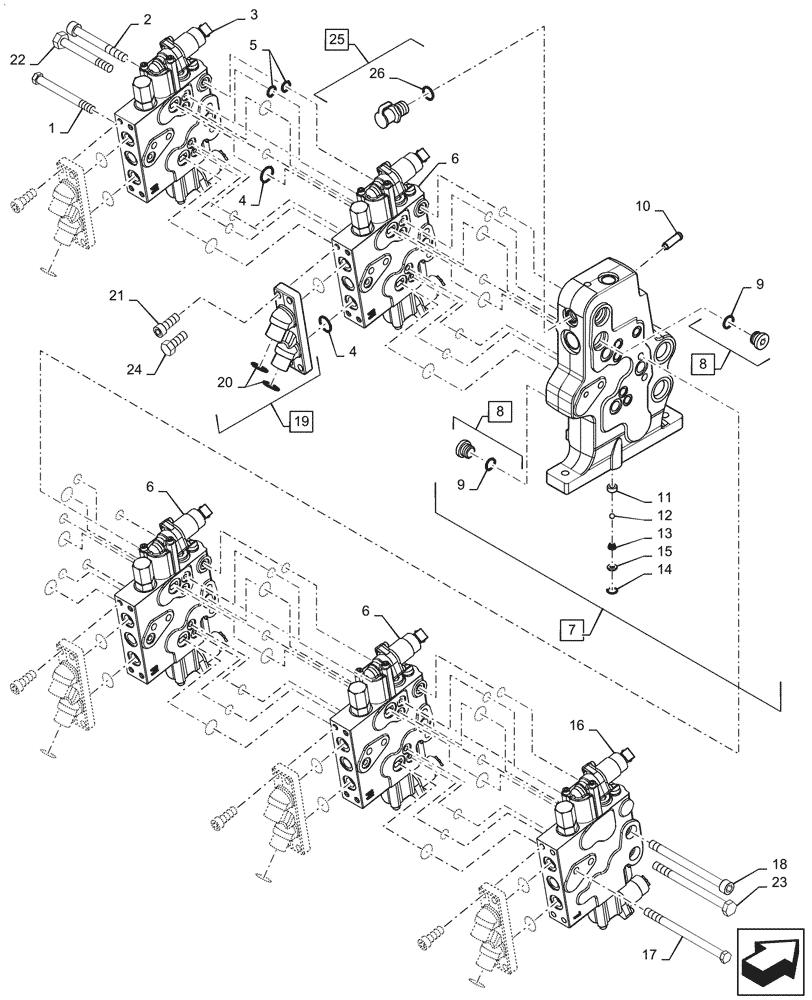

Запчасти Case IH MX200 (08-24) - REMOTE HYDRAULIC CONTROL VALVE (08) - HYDRAULICS

1

828-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 10.9

1шт.

2

863-12100

HEX SOC SCREW,M12 x 100mm, Cl 12.9

2шт.

3

393975A1

VALVE

Left Hand Side of Tractor, See Figure 8-25, (Valve Casting Marked R)

1шт.

4

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

3шт.

5

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

1шт.

6

367422A1

VALVE

Center, See Figure 8-25, (Valve Casting Marked M)

1шт.

7

361981A2

MANIFOLD VALVE

Incl 8 - 15

1шт.

8

221578A1

PLUG,M18 x 1.5 ORB

Incl 9

3шт.

9

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

3шт.

10

326965A1

FILTER STRAINER,10.46mm OD x 33.7mm L, 140 Micron

1шт.

11

370450A2

SEAT, VALVE

1шт.

12

358919A1

BALL

3/8

1шт.

13

337433A1

COMPRESSION SPRING,Compression, 13.21mm OD x 12.289mm L

1шт.

14

800-2115

SNAP RING,M15, Int

1шт.

15

370451A1

SPACER

1шт.

16

393974A1

VALVE

Right Hand Side of Tractor, See Figure 8-25, (Valve Casting Marked L)

1шт.

17

828-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

3 Valve

1шт.

17

828-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 10.9

4 Valve

1шт.

17

828-10160

BOLT,Hex, M10 x 1.5 x 160mm, Cl 10.9

5 Valve

1шт.

18

863-12055

HEX SOC SCREW,M12 x 55mm, Cl 12.9

M12 x 55; 12.9, 3 Valve

2шт.

18

863-12100

HEX SOC SCREW,M12 x 100mm, Cl 12.9

M12 x 100; 12.9, 4 Valve

2шт.

18

863-12150

HEX SOC SCREW,M12 x 150mm, Cl 12.9

M12 x 150; 12.9, 5 Valve

2шт.

19

364431A1

COVER

Incl 20

1шт.

20

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

5/8 x 3/4 inch

1шт.

If larger o-ring needed, use p/n 277634 0.103 x .799

1шт.

21

863-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

1шт.

22

828-12110

BOLT,Hex, M12 x 1.75 x 110mm, Cl 10.9

2шт.

23

828-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

3 Valve

2шт.

23

828-12110

BOLT,Hex, M12 x 1.75 x 110mm, Cl 10.9

4 Valve

2шт.

23

828-12160

BOLT,Hex, M12 x 1.75 x 160mm, Cl 10.9

5 Valve

2шт.

24

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

25

403373A1

FITTING

Incl 26

1шт.

26

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.
