Заказать запчасти

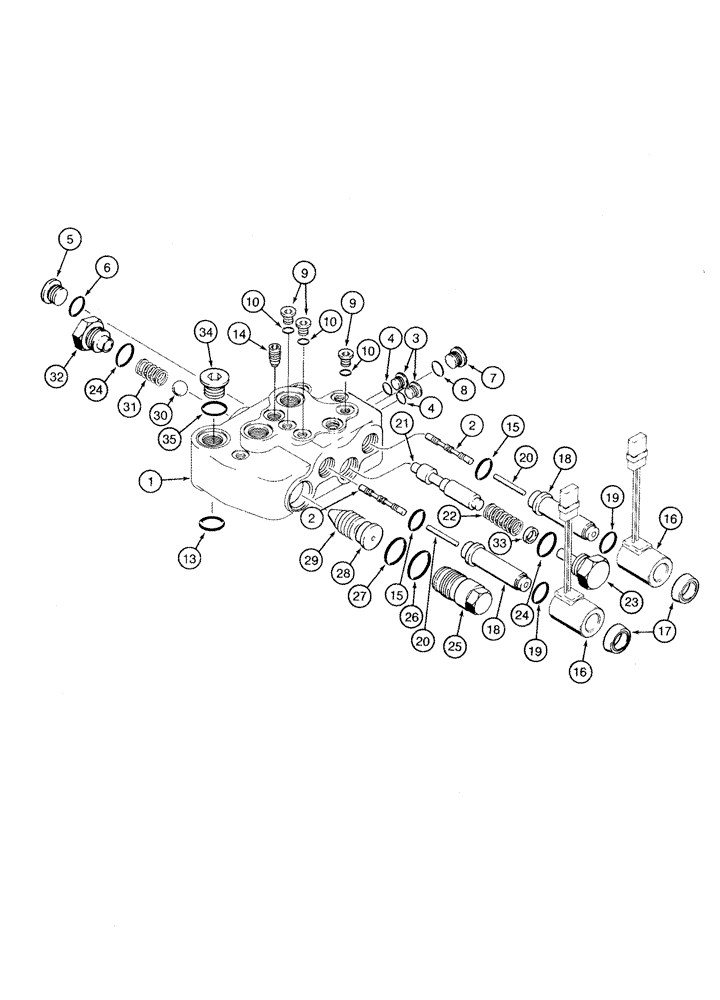

Запчасти Case IH MX200 (08-19) - HITCH VALVE ASSEMBLY (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
251138A2
VALVE
Consists Of 1 - 35
1шт.
1
NSS
NOT SOLD SEPARAT
Body
1шт.
3
86529630
PLUG,Hex Soc, 3/8"-24 ORB
Includes 4
2шт.
4
237-6003
O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro
1шт.
5
71100209
PLUG,Hex Soc, 3/4"-16 ORB
Incl Ref 6
1шт.
6
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
7
9625178
PLUG,9/16" - 18 ORB
Incl. 8
1шт.
8
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
9
278548
PLUG,Hex, 7/16"-20 ORB
Incl 10
3шт.
10
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
1шт.
13
238-6125
O-RING,0.103" Thk x 1.299" ID, -125, Cl 6, 90 Duro
1-5/16 ID x 3/32
1шт.
14
188115A1
VALVE POPPET
1шт.
15
238-5114
O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro
2шт.
243254A1
KIT
12 V, DC, Consists Of 16 - 16B
2шт.
16
188105A1
SOLENOID
12 Volt, DC
1шт.
16b
225318C1
ELEC CONNECTOR,2 Pin
1шт.
16c
225315C1
ELEC CONNECTOR,Male, 2 Pin
1шт.
17
188106A1
NUT
2шт.
18
188117A1
CARTRIDGE,72.25mm OAL
2шт.
19
238-5017
O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro
2шт.
20
188116A1
PIN,3.25mm OD x 39.93mm L
2шт.
21
NSS
NOT SOLD SEPARAT
Spool
1шт.
22
NSS
NOT SOLD SEPARAT
Spring
1шт.
23
188110A1
PLUG
1шт.
24
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
2шт.
243256A1
SERVICE KIT
Consists Of 25 - 29
1шт.
25
NSS
NOT SOLD SEPARAT
Plug
1шт.
26
238-5023
O-RING,0.07" Thk x 1.051" ID, -23, Cl 5, 75 Duro
1шт.
27
238-5022
O-RING,0.07" Thk x 0.99" ID, -22, Cl 5, 75 Duro
1шт.
28
NSS
NOT SOLD SEPARAT
Stem
1шт.
29
NSS
NOT SOLD SEPARAT
Poppet, Valve
1шт.
30
511-10200
BALL,20mm Dia
Gr 28
1шт.
31
188114A1
SPRING
1шт.
32
188107A1
PLUG
1шт.
33
NSS
NOT SOLD SEPARAT
Shim
1шт.
34
9841223
PLUG,1-1/16" - 12 ORB
Incl. 35
1шт.
35
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
243253A1
SEAL KIT
Consists Of 4, 6, 8, 10, 13, 15, 19, 24, 26, 27, 35
1шт.
Выбрано товаров: 39
