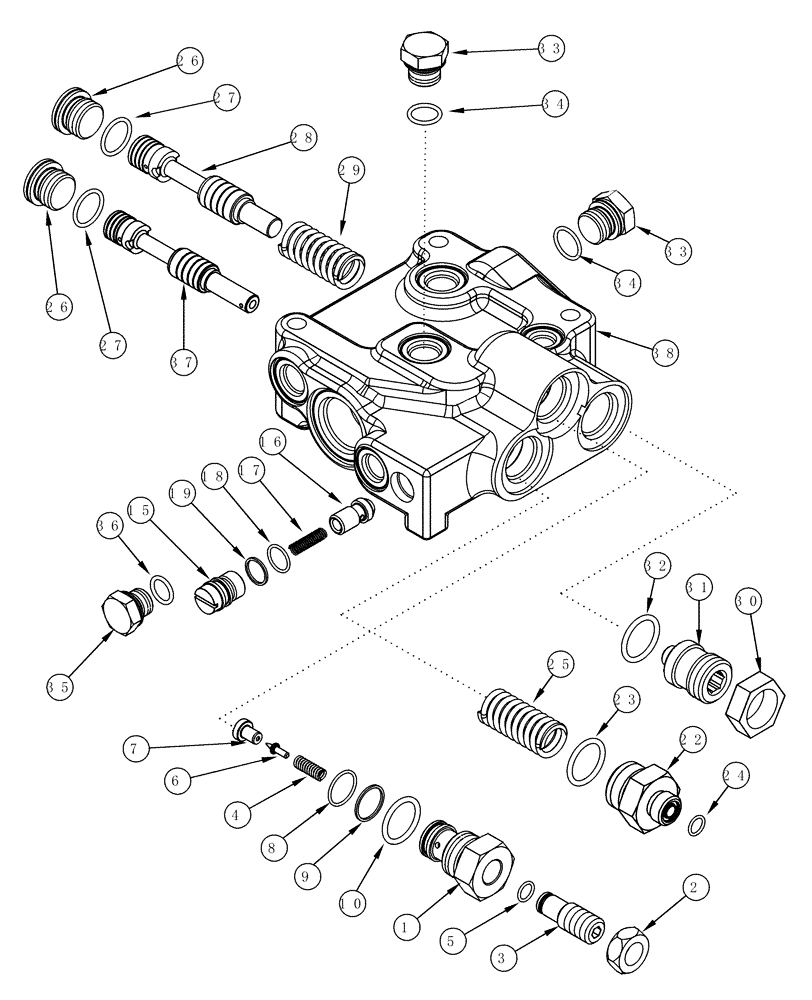

Запчасти Case IH MX200 (08-18) - PRIORITY AND REGULATOR VALVE ASSEMBLY (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
335877A2
VALVE
Inc. 1 - 36
1шт.
G108868
VALVE PRESSURE RELIE
Consists Of 1 - 10
1шт.
1
NSS
NOT SOLD SEPARAT
Cap
1шт.
2
425-1510
JAM NUT,Jam, 5/8"-18, G5
1шт.
3
NSS
NOT SOLD SEPARAT
Plug, Hex Socket
1шт.
4
NSS
NOT SOLD SEPARAT
Spring
1шт.
5
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
6
NSS
NOT SOLD SEPARAT
Poppet, Valve
1шт.
7
NSS
NOT SOLD SEPARAT
Seat
1шт.
8
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
1шт.
9
G35540
BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk
1шт.
10
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
1542563C1
KIT
Consists Of 15 - 19
1шт.
15
NSS
NOT SOLD SEPARAT
Plug
1шт.
16
1543329C1
VALVE POPPET,7mm ID x 13.8mm OD x 27mm L
1шт.
17
NSS
NOT SOLD SEPARAT
Spring
1шт.
18
238-6015
O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro
1шт.
19
G108723
RING,14.34mm ID x 16.94mm OD x 1.32mm Thk
1шт.
22
313940A1
FITTING
Inc. 23,24
1шт.
23
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
24
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
25
230613A1
SPRING
1шт.
26
221579A1
PLUG,M22 x 1.5 ORB
Includes Ref. 27
2шт.
27
637-63193
O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro
1шт.
28
119182A3
SPOOL
1шт.
29
176312A1
SPRING
1шт.
30
218-1280
BHD LOCK NUT,Blkhd, 1 1/16"-12
1шт.
31
313941A1
PLUG
Inc. 32
1шт.
32
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
33
220066A1
PLUG,M18 x 1.5, ORB
Includes 34
2шт.
34
637-63153
O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro
1шт.
35
220065A1
PLUG,M16 x 1.5, ORB
Incl. 36
1шт.
36
637-63133
O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro
1шт.
37
230612A2
SPOOL
1шт.
38
NSS
NOT SOLD SEPARAT
Body
1шт.
Выбрано товаров: 35
