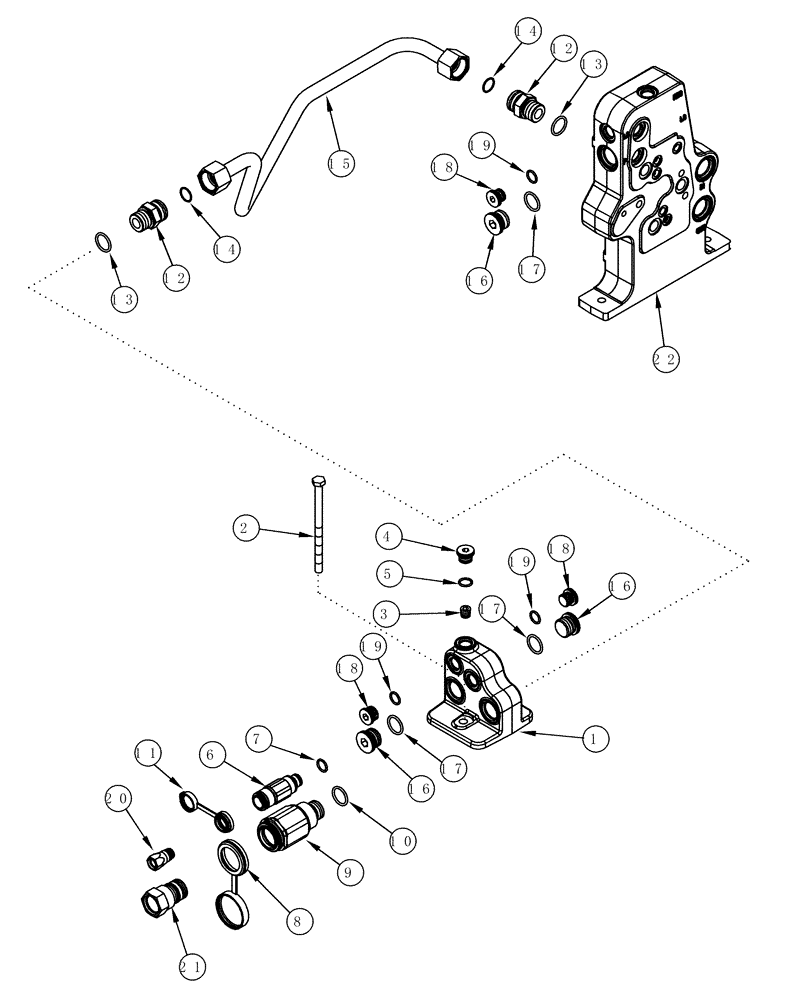

Запчасти Case IH MX200 (08-14) - HYDRAULIC SYSTEM MOTOR RETURN (08) - HYDRAULICS

400307A1

VALVE

Order From Machinery Price List, Inc. 1 - 19

1шт.

1

295036A1

SUPPORT

1шт.

1

387929A1

VALVE

, Start Serial: JJA0108800

1шт.

2

814-10150

BOLT,Hex, M10 x 1.5 x 150mm, Cl 8.8

M10 x 150

2шт.

3

217-432

PLUG,Hex Soc, 1/4" - 18 NPTF

1шт.

4

221578A1

PLUG,M18 x 1.5 ORB

Includes 5

1шт.

5

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

6

294603A1

BODY

1/4 in, -JJA0108800, Includes 7

1шт.

6

380739A1

COUPLING, BREAK AWAY

3/8, Inc. 7, Start Serial: JJA0108800

1шт.

7

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

8

334216A1

CAP

1шт.

9

298291A1

COUPLING, QUICK, FEM,Assembly, 3/4"

3/4 in, Inc. 10

1шт.

10

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

11

334218A1

CAP

, Serial Range: -JJA0108800

1шт.

11

380740A1

CAP

, Start Serial: JJA0108800

1шт.

12

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 13, 14

2шт.

13

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

14

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

15

388559A1

PIPE

1шт.

16

221580A1

PLUG,M27 x 2 ORB

Includes 17

3шт.

17

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

18

221578A1

PLUG,M18 x 1.5 ORB

Includes 19

3шт.

19

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

20

347756A1

QUICK MALE COUPLING,ISO 6.3, 1/4" x 9/16" - 18, Fem SAE ORB

1/4 in, Serial Range: -JJA0108800

1шт.

20

385358A1

QUICK MALE COUPLING,3/8"

3/8, Start Serial: JJA0108800

1шт.

21

347755A1

COUPLING,ISO 20, 3/4" x 1 1/16" - 12, Fem SAE ORB

3/4 in

1шт.

22

REF

INSTRUCTION

Manifold, See Figure 8-24

1шт.
