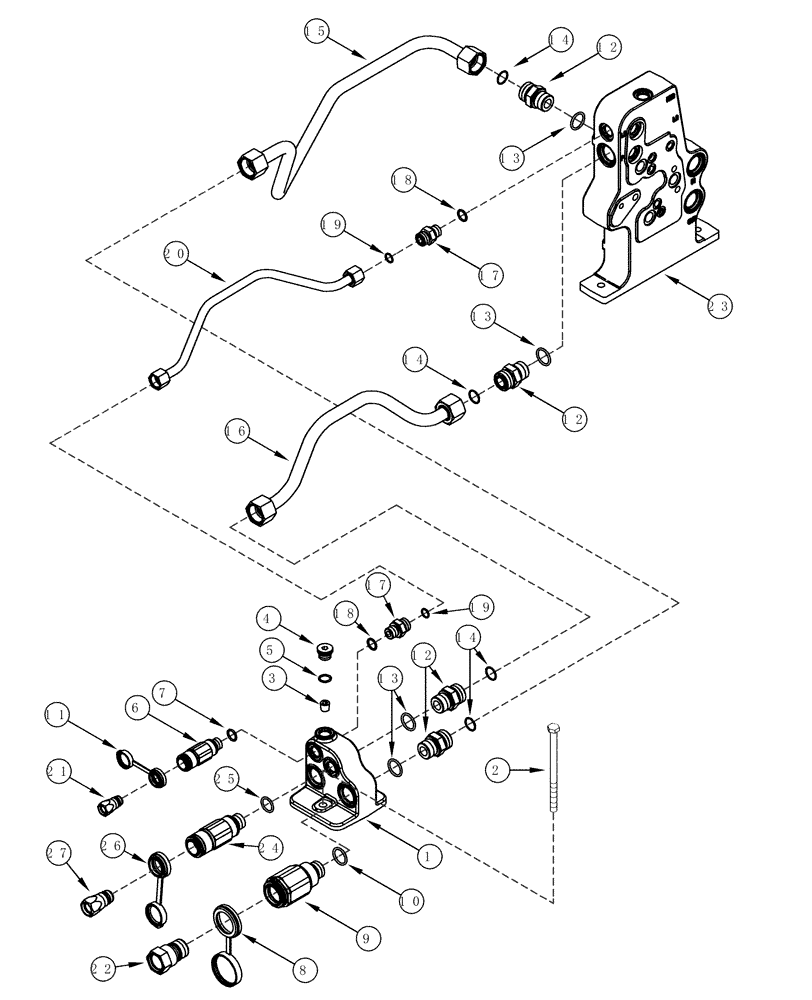

Запчасти Case IH MX200 (08-13) - HYDRAULIC SYSTEM POWER BEYOND (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
400306A1
ATTACHMENT
Order From Machinery Price List, Incl 1 - 20
1шт.
1
295036A1
SUPPORT
Use With (2) 3/4" Couplers (ref 9) and (2) 1/4" Couplers (ref 6), Serial Range: -JJA0108800
1шт.
1
387929A1
VALVE
Use With (2) 3/4" Couplers (ref 9), (1) 1/4" Coupler (ref 6), and (1) 3/8" Coupler (ref 24), Start Serial: JJA0108800
1шт.
2
814-10150
BOLT,Hex, M10 x 1.5 x 150mm, Cl 8.8
2шт.
3
217-432
PLUG,Hex Soc, 1/4" - 18 NPTF
1шт.
4
221578A1
PLUG,M18 x 1.5 ORB
Incl 5
1шт.
5
637-63153
O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro
1шт.
6
294603A1
BODY
1/4", Incl 7, Serial Range: -JJA0108800
2шт.
6
294603A1
BODY
1/4", Incl 7, Start Serial: JJA0108800
1шт.
7
637-63153
O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro
1шт.
8
334216A1
CAP
3/4" Coupler
2шт.
9
298291A1
COUPLING, QUICK, FEM,Assembly, 3/4"
Incl 10
2шт.
10
637-64236
O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro
1шт.
11
334218A1
CAP
1/4" Coupler, Serial Range: -JJA0108800
2шт.
11
334218A1
CAP
1/4" Coupler, Start Serial: JJA0108800
1шт.
12
700-104
HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB
Incl 13, 14
4шт.
13
637-64236
O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro
1шт.
14
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
1шт.
15
388559A1
PIPE
Return
1шт.
16
362279A1
PIPE
Supply
1шт.
17
700-102
HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB
Incl 18, 19
2шт.
18
637-63153
O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro
1шт.
19
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
1шт.
20
362280A1
PIPE
Power Beyond Load Sense
1шт.
21
347756A1
QUICK MALE COUPLING,ISO 6.3, 1/4" x 9/16" - 18, Fem SAE ORB
1шт.
23
REF
INSTRUCTION
Manifold, See Figure 8-24
1шт.
25
637-63193
O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro
, Start Serial: JJA0108800
1шт.
26
380740A1
CAP
3/8" Coupler, Start Serial: JJA0108800
1шт.
Выбрано товаров: 31
