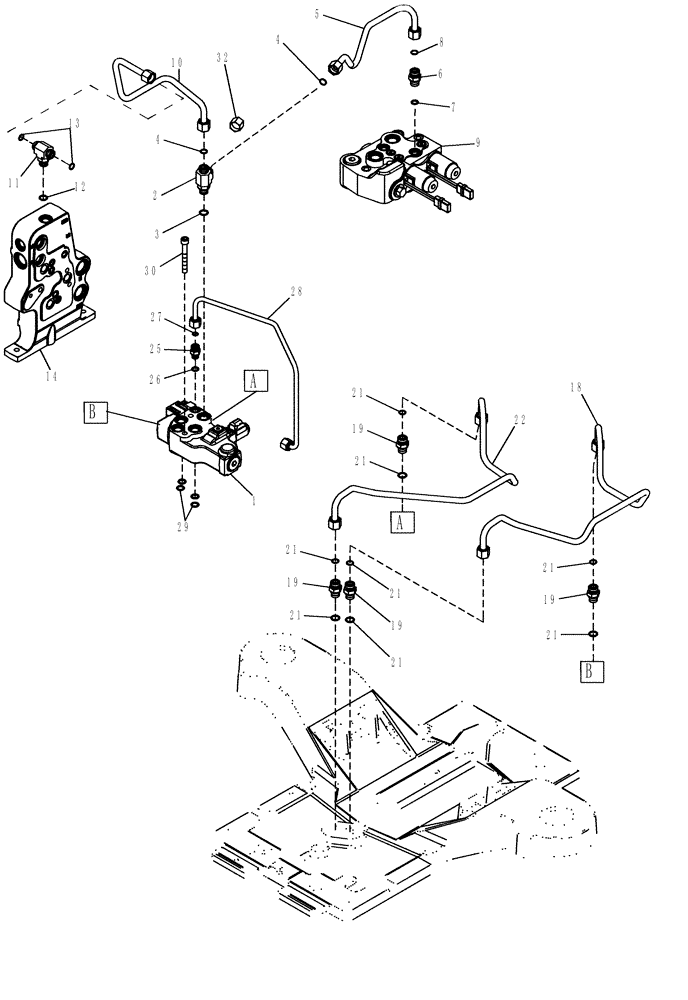

Запчасти Case IH MX200 (08-11) - HYDRAULIC SYSTEM POWER TAKE OFF (08) - HYDRAULICS

1

REF

INSTRUCTION

Valve Assy, Control, P.T.O., See Figure 8-23

1шт.

2

700-412

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Inc. 3, 4

1шт.

3

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

4

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

5

372190A1

PIPE

With Hitch

1шт.

6

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 7, 8

1шт.

7

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

8

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

9

REF

INSTRUCTION

Valve Assy, Control, See Figure 8-19

1шт.

10

362776A1

PIPE

1шт.

11

700-402

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

13/16 fc sl x 18 Or, Inc. 12, 13

1шт.

12

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

13

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

14

REF

INSTRUCTION

Manifold, See Figure 8-24

1шт.

18

362693A2

PIPE

1шт.

19

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 20, 21

4шт.

20

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

21

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

22

362692A2

PIPE

1шт.

25

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 26, 27

1шт.

26

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

27

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

28

278018A2

TUBE,0.375" OD, 327, 327 mm Length

1шт.

29

238-5112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

4шт.

30

864-10080

HEX SOC SCREW,M10 x 80mm, Cl 8.8

2шт.

32

701-905

CAP,13/16" - 16

13/16 NF, Without Hitch

1шт.
