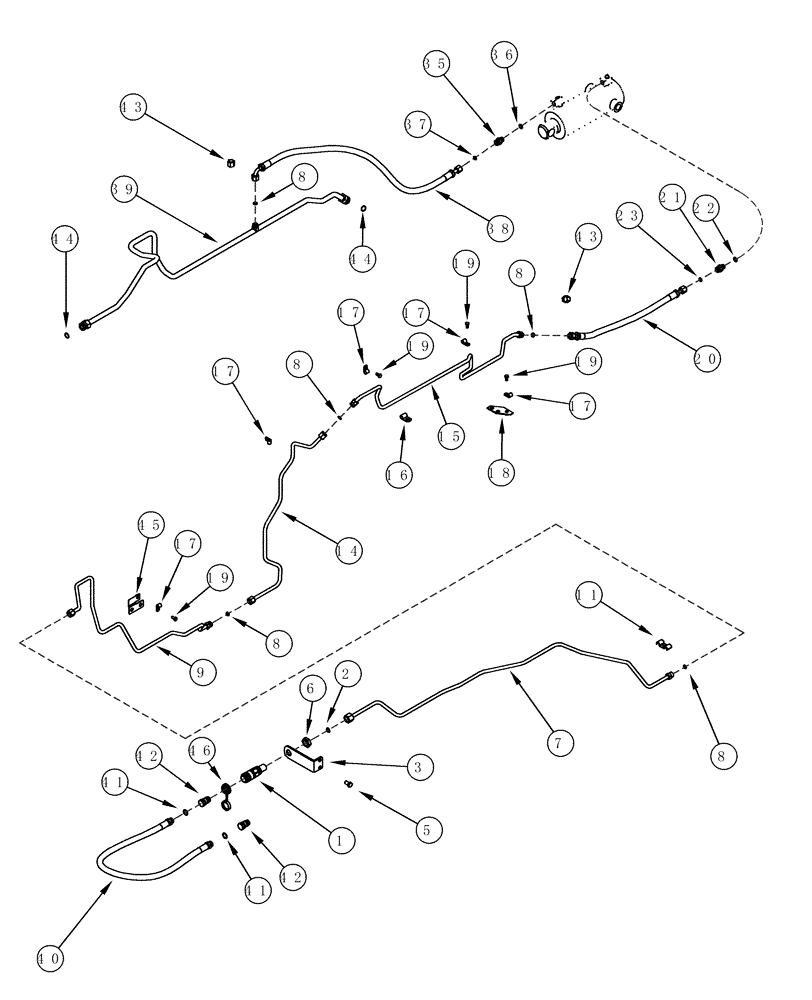

Запчасти Case IH MX200 (08-10) - HYDRAULIC SYSTEM FRONT HITCH (08) - HYDRAULICS

1

257481A2

COUPLING

Inc. 2

1шт.

2

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

3

353697A2

SUPPORT

1шт.

5

614-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

2шт.

6

701-919

BHD LOCK NUT,1" - 14

1шт.

7

353714A1

HYD TUBE,0.5" OD, 1190 mm Length

1шт.

8

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

5шт.

9

353716A2

PIPE

1шт.

11

299430A1

CLAMP

1/2 in

1шт.

14

384571A1

PIPE

1шт.

15

353703A1

HYD TUBE

1шт.

16

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

1шт.

17

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

5шт.

18

353693A1

SUPPORT

1шт.

19

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

4шт.

20

353711A1

HOSE

1шт.

21

353695A1

FITTING

4 mm orifice, Inc. 22, 23

1шт.

22

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

23

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

28

348474A1

CYLINDER ASSY.

Inc. 29

1шт.

29

281456A1

SEAL KIT

1шт.

35

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 36, 37

1шт.

36

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

37

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

38

359879A1

HOSE

1шт.

39

359878A1

TUBE

1шт.

40

359851A1

HOSE,12.70 mm ID x 1100.00 mm

1шт.

41

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

42

1272399C2

QUICK MALE COUPLING

7/8 NF, Self-Sealing, Male

2шт.

43

701-905

CAP,13/16" - 16

13/16 NF, If Equipped

2шт.

44

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

45

362976A1

SUPPORT

1шт.

46

1954146C1

CAP

1шт.
