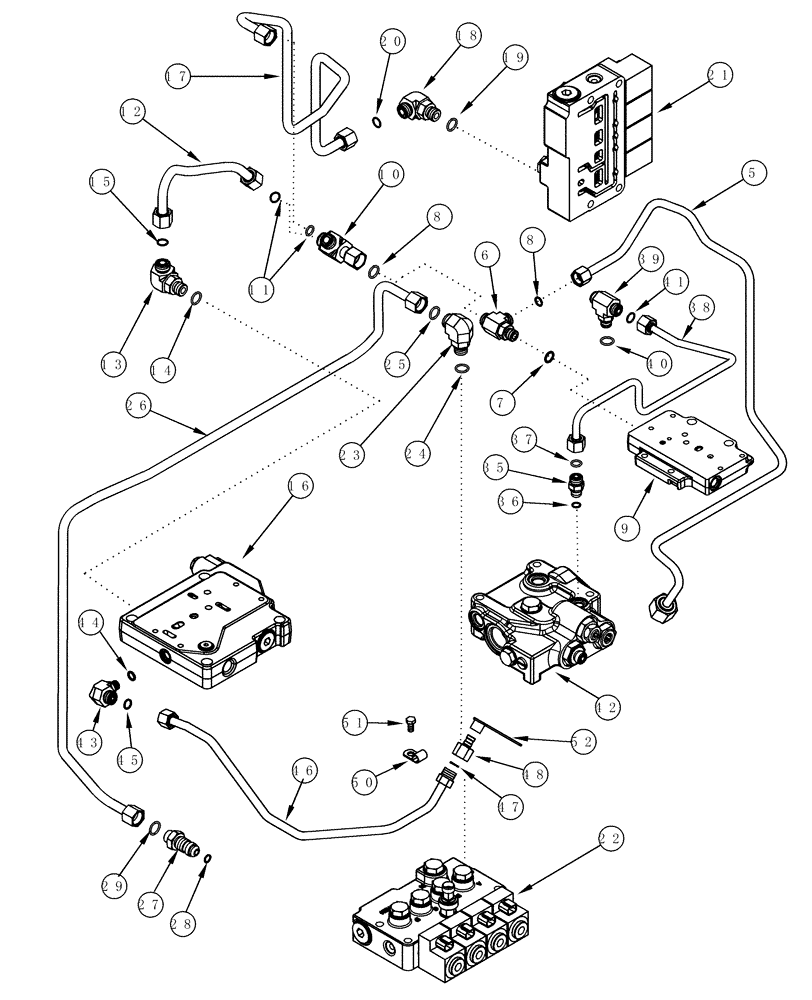

Запчасти Case IH MX200 (08-06) - HYDRAULIC SYSTEM TRANSMISSION CONTROL (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
5
362325A3
PIPE
1шт.
6
700-412
TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB
Inc. 7,8
1шт.
7
637-63153
O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro
1шт.
8
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
2шт.
9
REF
INSTRUCTION
Plate Assy, See Figure 6-03
1шт.
10
701-416
TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS
Inc. 11
1шт.
11
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
2шт.
12
308172A1
TUBE,0.5" OD, 158, 37 mm Length
1шт.
13
700-305
ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB
Incl. 14, 15
1шт.
14
637-63153
O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro
1шт.
15
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
1шт.
16
REF
INSTRUCTION
Valve Assy, Control, See Figure 6-10
1шт.
17
305539A1
TUBE,0.5" OD, 408, 308" Length
1шт.
18
700-305
ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB
Incl. 19, 20
1шт.
19
637-63153
O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro
1шт.
20
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
1шт.
21
REF
INSTRUCTION
Valve Assy, Control, See Figures 6-21, 6-22
1шт.
22
REF
INSTRUCTION
Valve Assy, Control, See Figures 6-21, 6-22
1шт.
23
700-305
ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB
Incl. 24 ,25
1шт.
24
637-63153
O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro
1шт.
25
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
1шт.
26
258154A3
TUBE,0.5" OD, 657, 521 mm Length
1шт.
27
9992305
HYD CONNECTOR,13/16" - 16 ORFS x 3/4" - 16 ORB
1шт.
28
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
29
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
35
700-101
HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB
Incl. 36, 37
1шт.
36
637-63113
O-RING,2.2mm Thk x 11.3mm ID, Cl 6
1шт.
37
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
38
293275A1
TUBE,0.375" OD, 323, 182 mm Length
1шт.
39
201-401
TEE,11/16"-16 x 9/16"-18 Br, ORFS
11/16 fc sl x 9/16 Or, Includes 40,41
1шт.
41
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
42
REF
INSTRUCTION
Valve Assy, Priority, See Figure 8-18
1шт.
43
700-332
ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M14 x 1.5 Male ORB
Inc. 44,45
1шт.
44
637-63113
O-RING,2.2mm Thk x 11.3mm ID, Cl 6
1шт.
45
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
1шт.
46
321728A2
PIPE
1шт.
47
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
1шт.
48
322529A1
COUPLING
1шт.
50
515-23127
CLAMP,1/2", Insul, 3/8" Bolt
1шт.
51
614-8016
BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd
1шт.
52
143349A1
DUST CAP
1шт.
40
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
Выбрано товаров: 42
