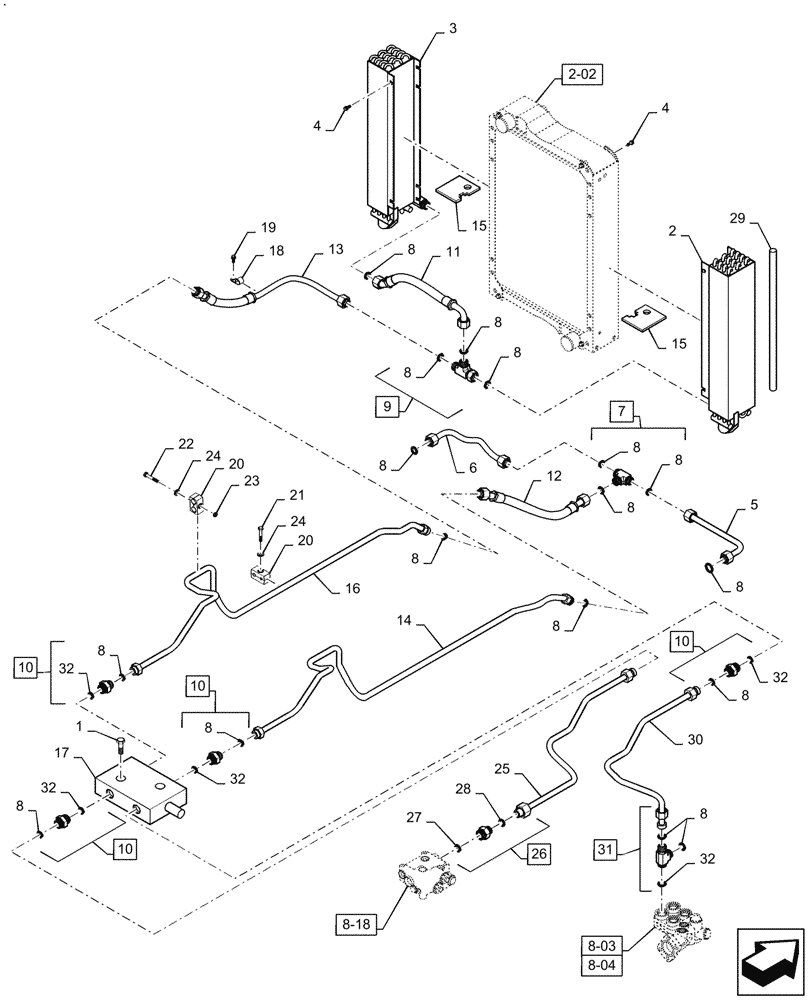

Запчасти Case IH MX200 (08-01[02]) - HYDRAULIC SYSTEM OIL COOLER - ASN JJA0114347 (08) - HYDRAULICS

1

844-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

1шт.

2

248874A4

COOLER ASSY.

RH

1шт.

3

248873A4

COOLER ASSY.

LH

1шт.

4

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

6шт.

5

300904A2

TUBE,0.75" OD, 282, 90 mm Length

RH

1шт.

6

300903A2

TUBE

LH

1шт.

7

701-427

TEE,1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS

Incl 8

1шт.

8

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

17шт.

9

701-417

TEE,1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Female ORFS

Incl 8

1шт.

10

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl 8, 32

4шт.

11

313315A2

HOSE,19mm ID x 471.2mm L, SAE 100R1

1шт.

12

301020A2

HOSE,19mm ID x 472.5mm L

Supply to Tee

1шт.

13

301430A2

HOSE

Return

1шт.

14

419285A1

HYD TUBE

Supply

1шт.

15

329701A1

OIL SEAL

2шт.

16

419286A1

HYD TUBE

Return, Without Front Hitch

1шт.

16

359878A1

TUBE

Return, With Front Hitch

1шт.

17

414072A1

VALVE

Oil Cooler Bypass

1шт.

18

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

1шт.

19

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

20

314137A1

COLLAR CLAMP

2шт.

21

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

22

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

1шт.

23

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

24

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

25

418919A2

HYDRAULIC HOSE

Supply

1шт.

26

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 27, 28

1шт.

27

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

28

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

29

328134A1

GUIDE

2шт.

30

414576A1

TUBE

Return

1шт.

31

700-428

TEE,1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl 8, 32

1шт.

32

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

5шт.
